PVC WPC board machine with online lamination for making furniture panel

FOB Reference Price:Get Latest Price
$10,000.00 - $160,000.00 / Set | 1 Set/Sets WPC machine for WPC PVC foam board production line (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Model Number:
SJSZ80/156-WPC board machine
Application:
Plates
Plastic Processed:
WPC
Screw Design:
Double-screw
Place of Origin:
Shandong, China
Brand Name:
TONGSAN
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
25m*2m*4m
Weight:
8-20Tons
Certification:
CE ISO
wpc board production line:
WPC machine for WPC PVC foam board production line
model:
SJMS80/173 conical double screw extruder
capacity:
500kg/h extrusion
product size:
1220mm ,or customized
density of product:
0.45-0.8ton/m3 or customized
total power:
250kw
application of final product:
formwork, construction template, furniture board
raw materail:
PVC and wood powder
Final product:
pvc foam board machine
TONGSAN:
TONGSAN
After-sales Service Provided:
Engineers available to service machinery overseas
Power:
120KW
Automatic Grade:
Automatic
Supply Ability
Supply Ability:
10 Set/Sets per Month WPC machine for WPC PVC foam board production line
Packaging & Delivery
Packaging Details
the WPC PVC foam board production line including several parts, such as extruder, mold, calibrating device, cooling bracket, haul off machine, cutter and stacker. each part shall be packed separately by wrapping film.
Port
Qingdao port,China
Lead Time :
Shipped in 45 days after payment
WPC Board machine
Product name

WPC foam board production line
WPC board extrusion line for making furniture board

wpc foam board extrusion line

Three layer WPC foam  board co-extrusion line

PVC foam board making machine

WPC machine for WPC PVC foam board production line

PVC WPC board machine

WPC board machine description

Item
Description
Product size
1220mm width, length can cut at any length
Product thickness
3-30mm (ABA three layer, B is foamed layer, A is unfoaming layer)
Product application
Furniture board, kitchen cabinet, construction formwork
Density
0.45-0.8ton/m3
Raw material
PVC+wood+caco3+chemical additives
Finishing surface
Laminating, hot stamping, printing, painting
Detailed Images

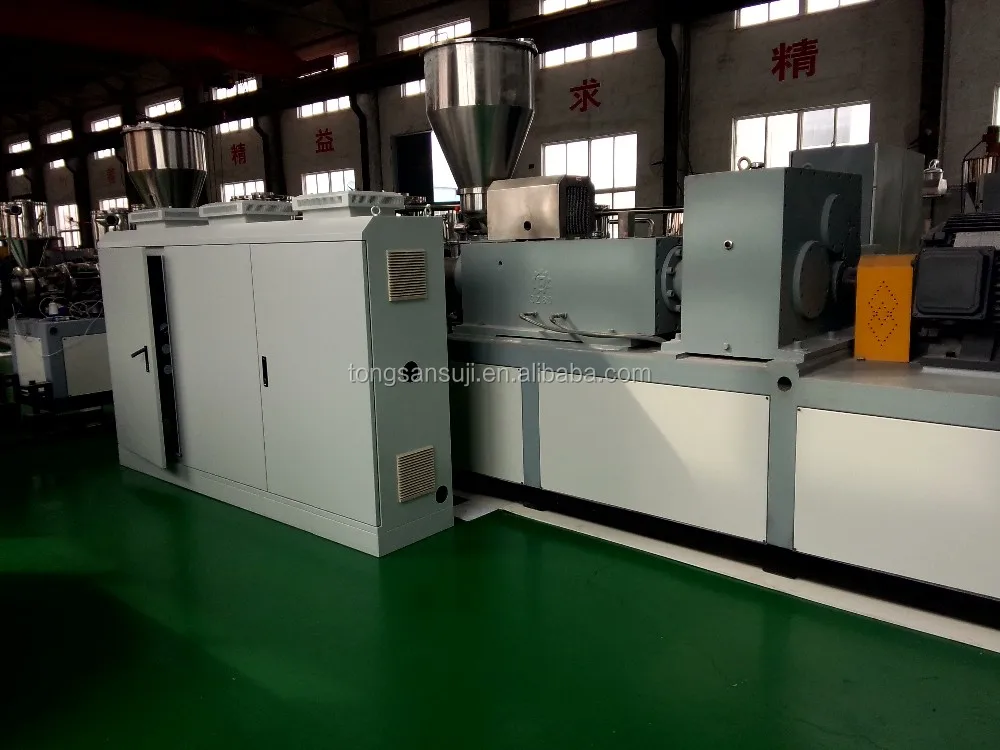

SJMS80/156 Extruder for WPC board machine

Extruder type: conical double screw extruder

Capacity: 250-350kg/h

Motor power: 75kw

Screw diameter: 80/156

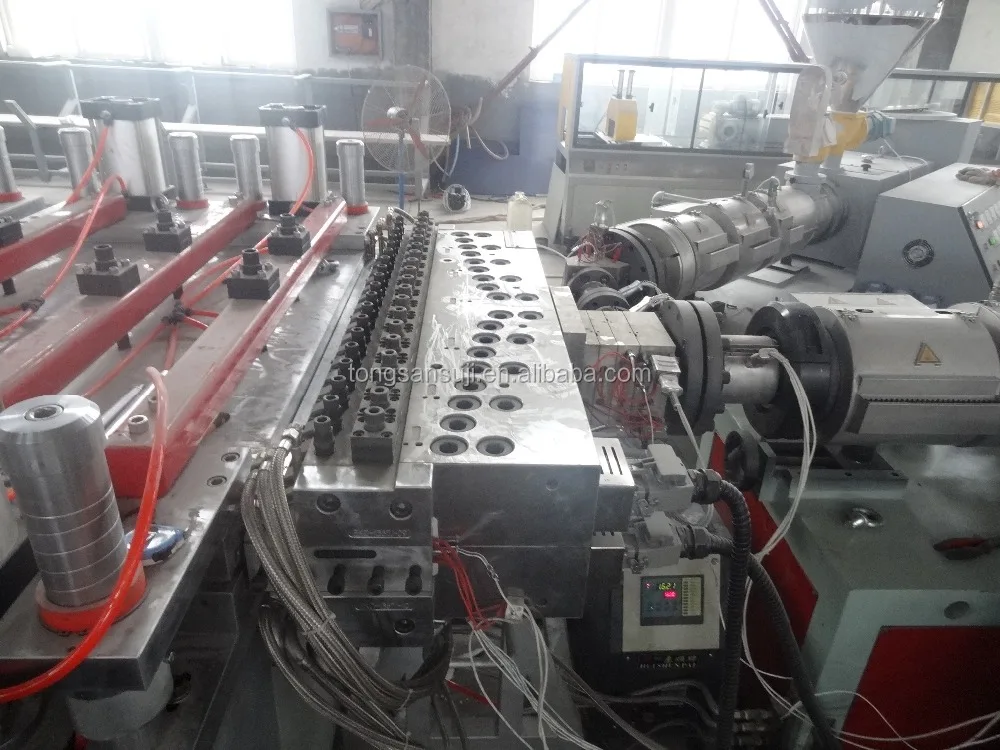

Mold for WPC board machine

Width: 1220mm

Thickness: 3-30mm adjustable

Mold heating: electricity heating

with mold temperature control system

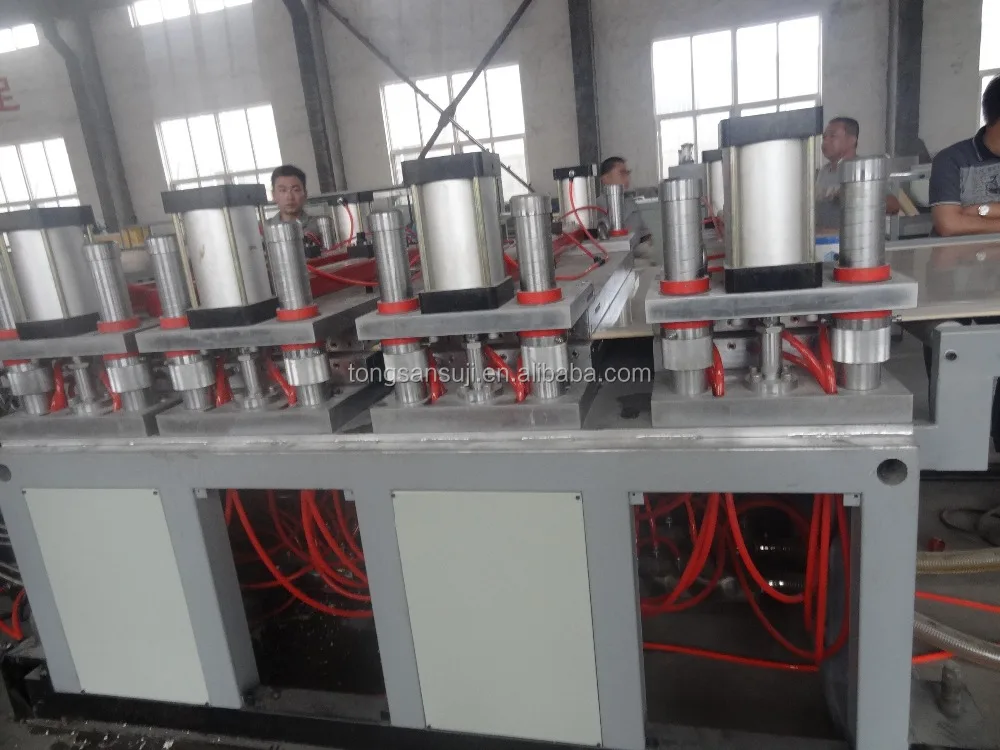

Calibrating machine for WPC board machine

Quantity of calibrators: 4 sets

cooling method: water cooling

driving by: cylinder or hydraulic

thickness of calibrator plates: 70-100mm

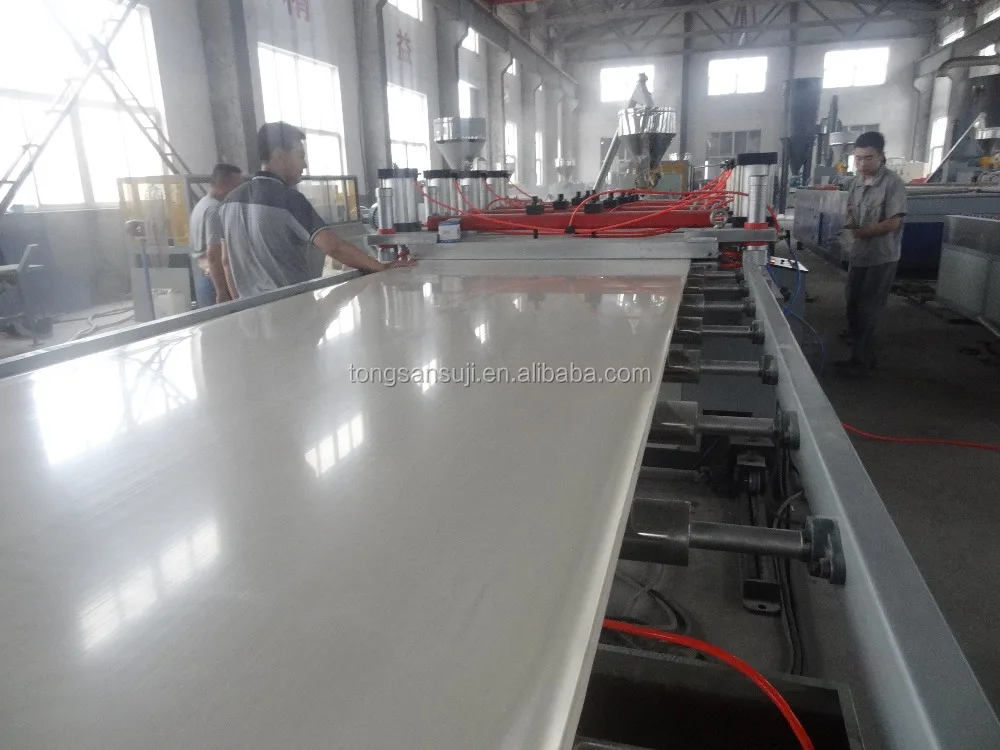

Cooling bracket for the WPC board machine

Length: 5 meters.

Cooling method: nature cooling

Cooling rollers: stainless steel material

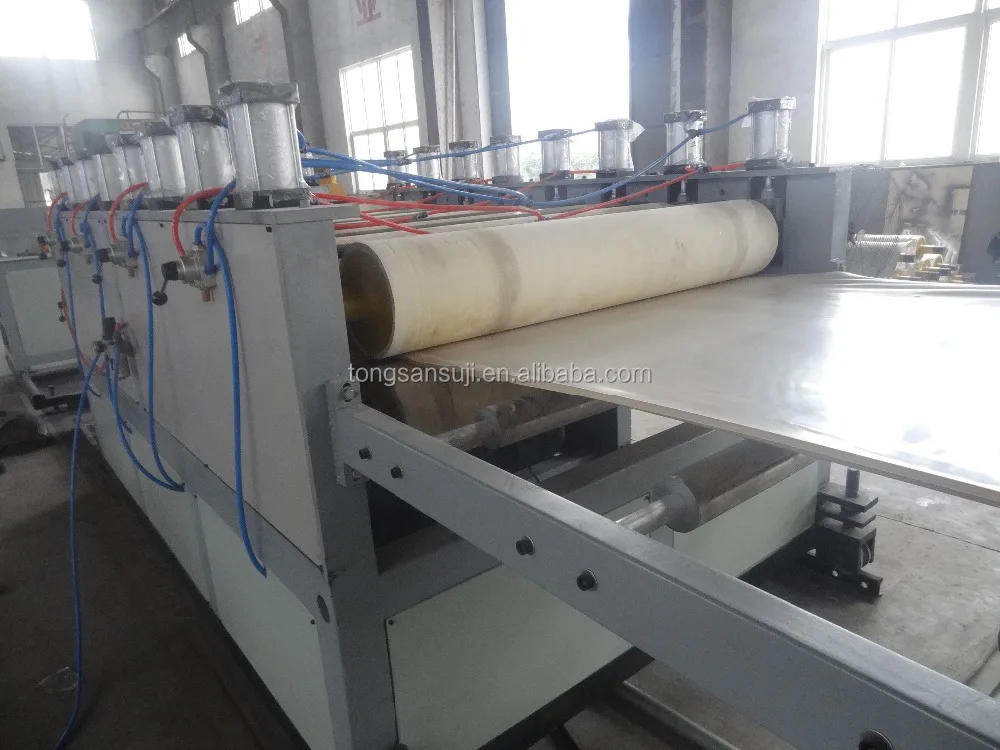

Haulling off machine for the WPC board machine

Haul off rollers: rubber rollers

Quantity of rollers:8 pairs

Rollers up: by cylinders

Rollers driving: gear driving

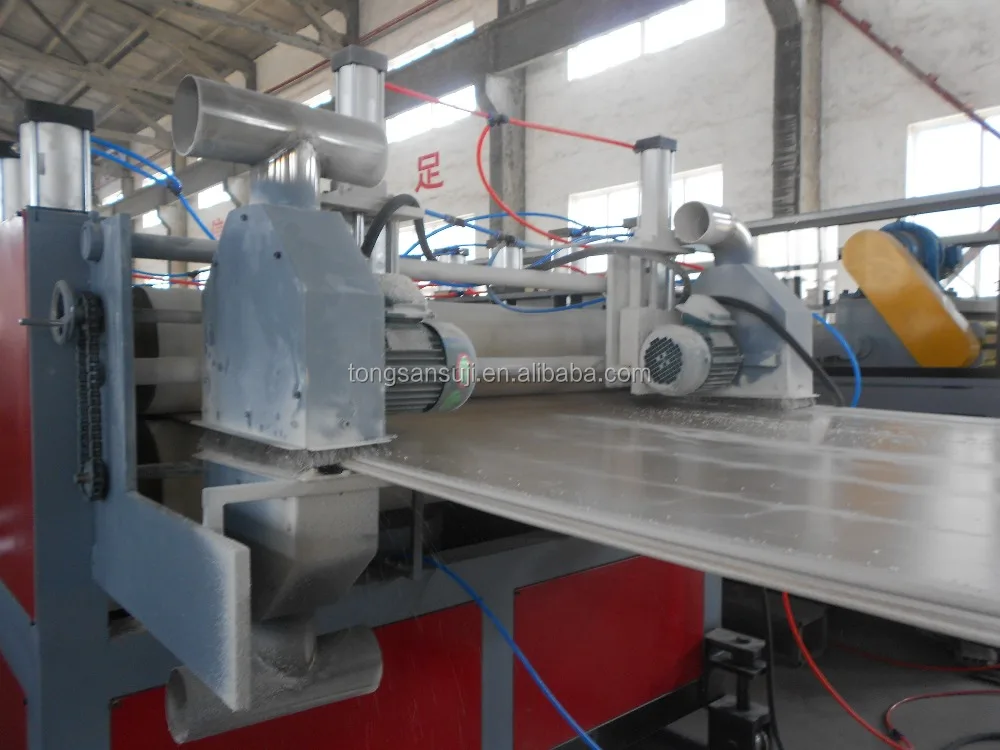

Width cutting for the WPC board machine

Cutting by: cutting knives

Quantity of knives: 2 pieces

cutting width: adjustable, max.1250mm

Dust collection: air suction dust collector

Length cutting for the WPC board machine

cutting by: saw

material of saw: alloy

cutting motor: 2.2kw

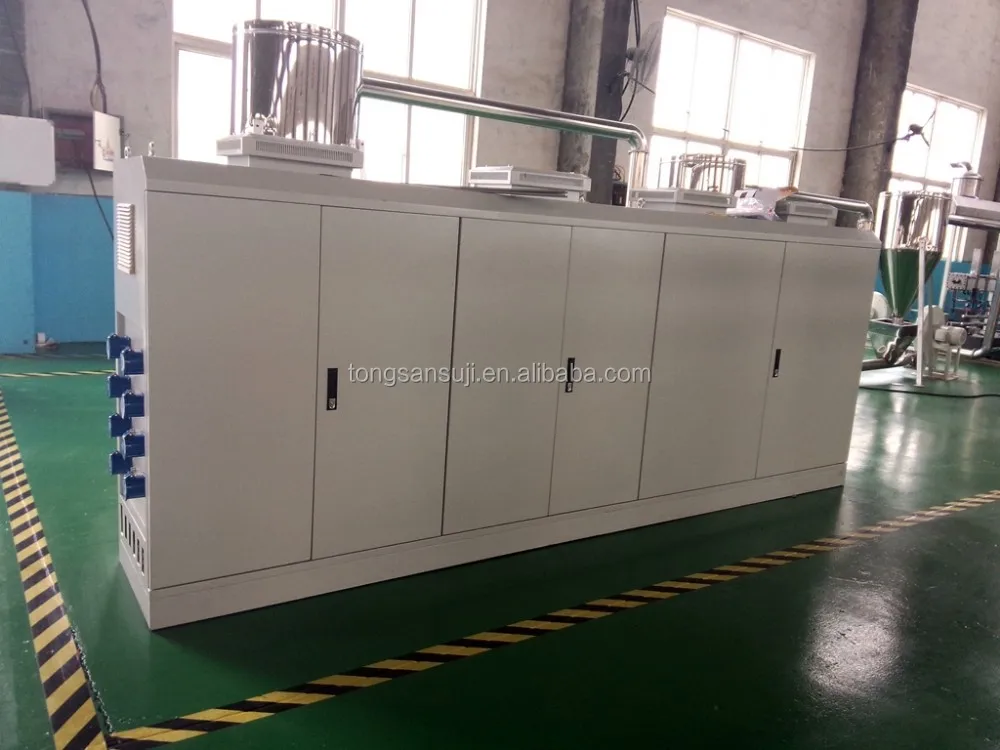

electricity system

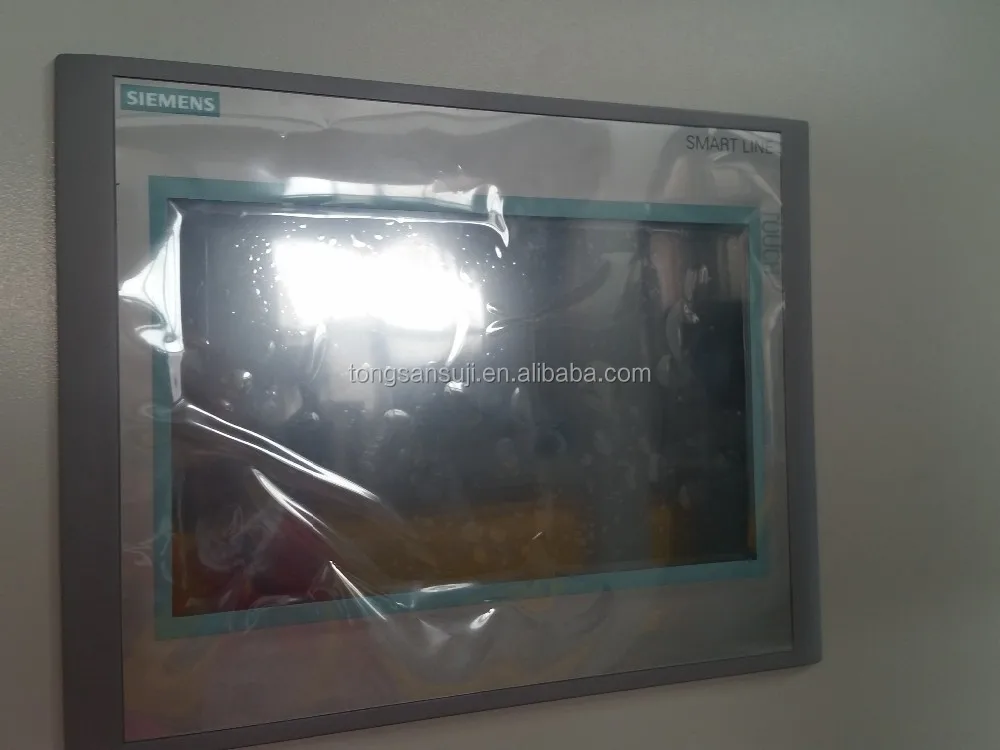

High quality electricity control cabinet for Our WPC Foam Board machine

Schneider contractor


ABB inverter


Siemens PLC control


cables with marked Number

all electricity parts are orderly put in the cabinet

the cabinet is designed with beautiful appearance.
the cabinet is easy to be open or closed by spring lock, the cabinet is designed with heat cooling system..
WPC Foam Board


1, Application:
Furniture board, Formwork, Partition.
2, Material:
PVC, Jute powder, Chemicals
3, Marketing:
The WPC board is high quality product for furniture or formwork for replacing wooden/MDF/Plywood

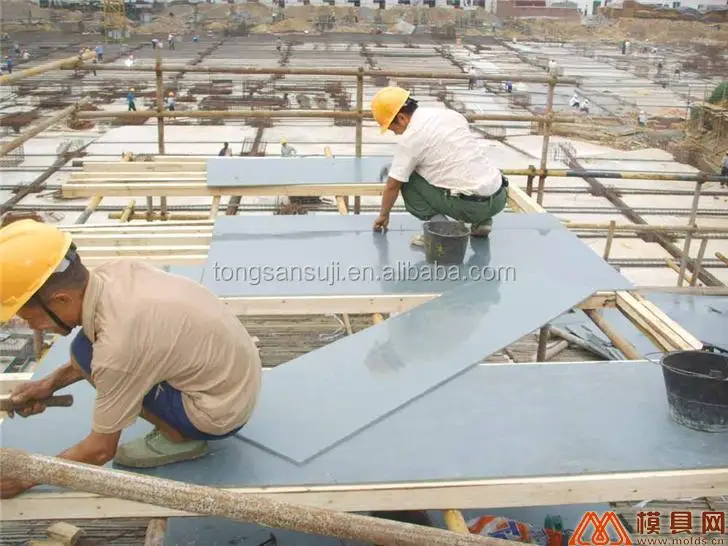

WPC formwork for construction template

1,it can save large quantity of wooden resource
2,low cost: the price is about 13 USD per square meter
3, it is safe and easy for installation or taking down.
4, The WPC no need maintain and can be recycled, so it can reduce the production cost.
5, The WPC construction template can be reused for more than 25 times

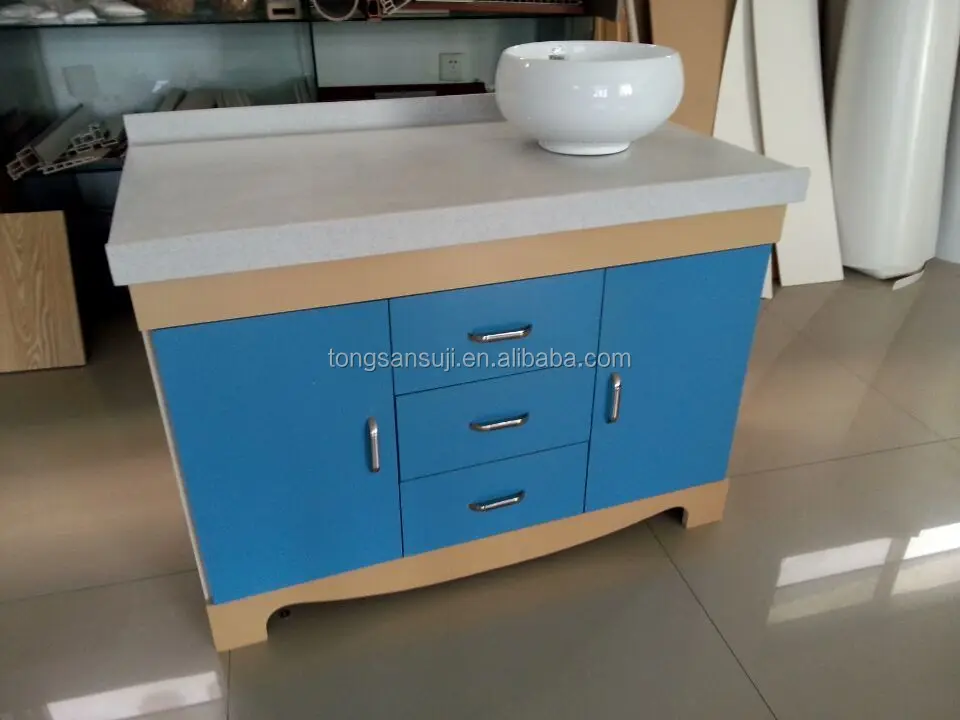

WPC foam board for furniture making

1, density of board: 550kgs per cubic meter

2, surface treatment: nature color, or laminated, or printed, or hot-transfering

3, processing: can be cut, nailed, screwed, like wooden product

4, advantage: high strength, fire proof, water proof, insect resistance...

WPC machine workshop

High quality extruders in workshop, wpc door extrusion line, WPC board extrusion line, WPC profile extrusion line, WPC decking extrusion line, WPC granulation line.WPC mixing machine,wood milling machine.


High quality molds for WPC production

We provide turnkey project for complete WPC production,auxiliary devices are avaliable, such as sanding machine, embossing machine, brushing machine, laminating machine, engraving machine

this wood powder crushing and milling machine can work for wood sawdust, rice husk, rice straw, it can make the wooden fiber into wood powder for 80-120mesh.

if there is high moisture in the wood powder, we can also equip this wood powder drying machine for you.

If you want to use recycle plastic for making WPC products, we can also quip for you the Plastic washing and crushing recycling machine


If your recycle plastic with high moisture and low density, we suggest you equip the plastic drying and agglomeration device as above picture


Mixing machine is necessary for WPC production, it can mix wood and plastic and chemicals into uniform mixing


if customer like high capacity and automatical mixing system, we can equip above auto dosing and mixing system for 1.6tons per hour automatical mixing.


Our service

INSTALLATION AND COMMISSIONING
WE WILL SEND THE TECHNICIAN TO BUYER’S FACTORY FOR INSTALLATION AND TESTING THE WHOLE LINE, AND OUR ENGINEER WILL DO TRAINNING TO BUYER'S WORKERS UNTIL THEY CAN RUN OUR MACHINE FOR STABLY PRODUCTION

AFTER SELL SERVICE: ONE YEAR GUARNTEE, FOREVER SERVICE!
WITHIN THE GUARANTEE OF ONE YEAR, WE WILL PROVIDE EFFICIENT AND ON TIME MAINTAINS,IF ANY SPARE PARTS DAMAGED IN THE GUARANTEE TERM BECAUSE OF QUALITY PROBLEM, WE WILL PROVIDE NEW SPARE PARTS FOR FREE FOR REPLACMENT.

Machine in stock

we have many machines in our factory stock, we can show you our machine working if you visit us, we have following machines in stock.
1, corrugated pipe machine
2, wood plastic WPC profile machine.
3, WPC door machine
3, WPC foam board machine.
5, PP hollow sheet machine
6, PE pipe machine
7, PVC pipe machine
8, PVC fiber reinforced hose making machine
9, PVC sheet machine
10, ABS/HIPS/PE/PP sheet machine.
12, other auxiliary devices, such as crusher, miller, mixer..
