1220mm PVC WPC board extrusion line WPC foam plate machine

FOB Reference Price:Get Latest Price
$10,000.00 - $160,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SJSZ80/156
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Plates
Plastic Processed:
WPC
Screw Design:
Double-screw
Place of Origin:
China
Brand Name:
TONGSAN wpc foam board machine
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
30m*2m*5m
Weight:
8-20T
Certification:
CE Certificated
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
wpc board production line:
pvc crust foam plate machine
model:
SJSZ92/188 wpc board machine
capacity:
500kg/h wpc board machine
product size:
1220mm ,or customized
density of product:
0.45-0.8ton/m3 or customized
application of final product:
formwork, construction template, furniture board
raw materail:
PVC and wood powder
wpc board machine:
foam board, celluka foam
wood plastic composite:
wpc board machine
Automatic Grade:
automatic wpc board machine
Power(W):
90kw
Supply Ability
Supply Ability:
1 Set/Sets per Month wpc board machine
Packaging & Delivery
Packaging Details
packing details for wpc board machine: according to standard, wooden packing, film packing...accordingly
Port
Qingdao port
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 To be negotiated

wpc board production line

pvc crust foam plate machine

 Plastic machine and WPC machine

machine running videos:









Machinery:
Extruder

SJSZ92/188 conical double screw extruder



Die head and mold

1220mm width, 2-30mm thickness

calibrating device

Four sets of calibrator:

Cooling bracket

 Roller cooling, five meter lengths.

haulling off machine

eight pairs of haulling rollers

 Edge cutting machine

 double cutting knifive, can adjust the cutting width

cutting machine

automatic cutting for length

product stacker three meters length

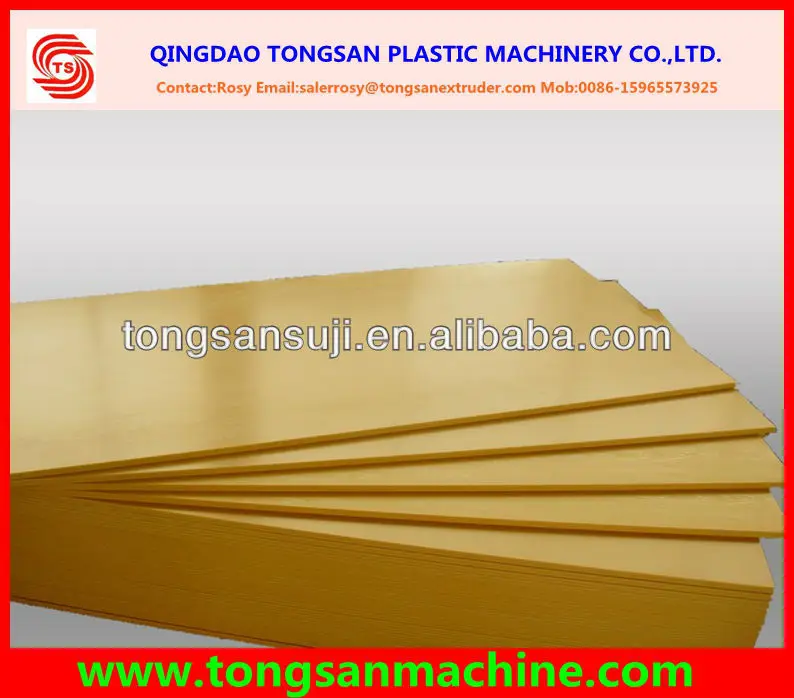

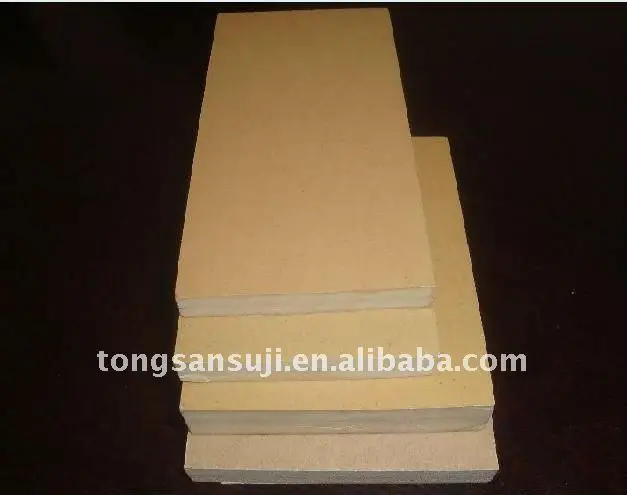

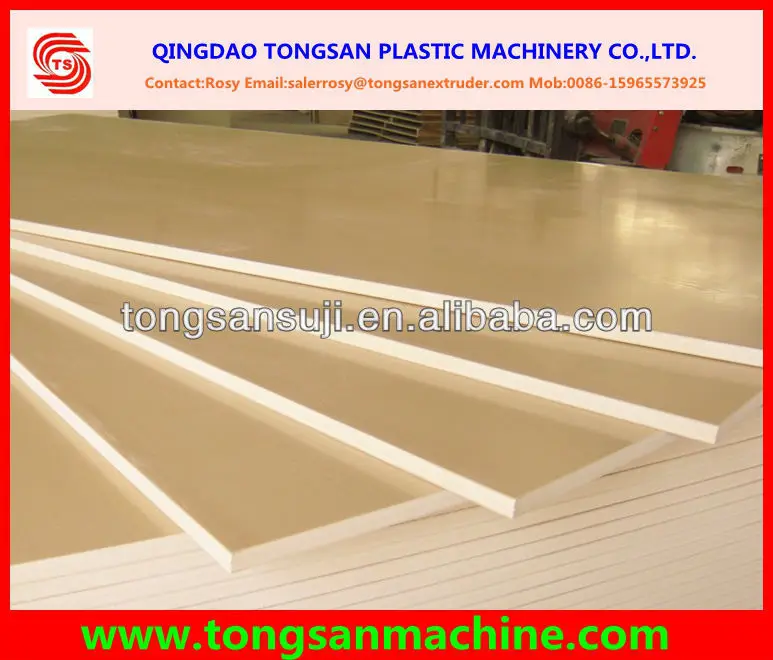

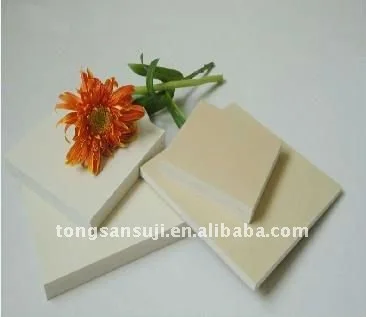

Final WPC BOARD Product
Raw materialPVC and wood composite
ApplicationFurniture board, construction template, formwork
Product size1220*2440mm, thickness:5-20mm
Product densitygenerally 0.6ton/m3, can be customized 0.45-0.8 ton/m3
Product featureshard and strong surface, long using life.
Machine modelSJSZ80/156 or SJSZ92/188

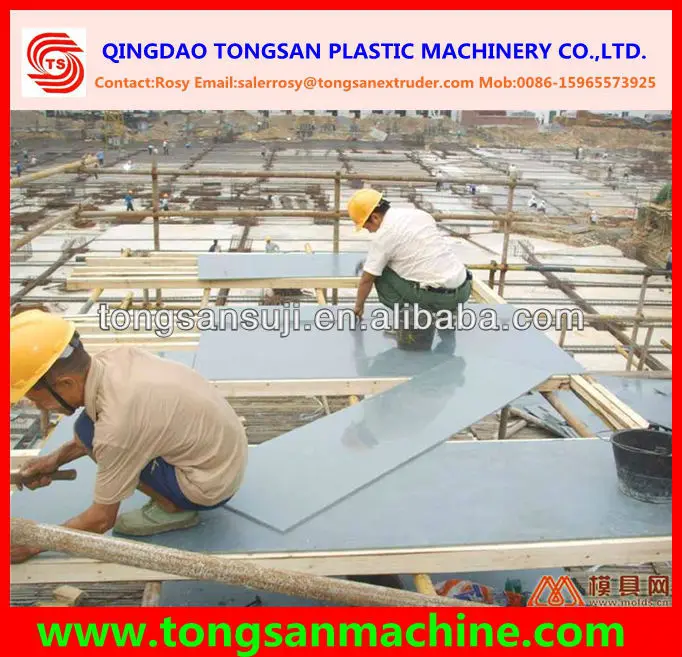

WPC construction templates have advantages compare with the traditional building templates

1.Environmental protection. Whether timber resources or steel resources, both of them are non-renewable resources, the government will strict controlling the use of them via rise the timber and steel price. the raw materials of the wood-plastic building templates is recycled waste plastics and recycled wood materials. Those recycled materials is not including formaldehyde harmful chemicals, the government will promote it and have a good market in the near future.




2.Recyclability. The traditional building templates can not recycle it after use it, and will become solid waste, which will increase the environmental pollution. The wood-plastic building templates can be recycled, i.e. the damaged wood-plastics building waste can be crushed and as recycled materials use again.




3.Recycled times. Traditional wooden templates only can recycle three or four times, but the wood-plastic building templates can recycle 25 to 28 times

4.Intensity. Intensity of Wood-plastics building templates is 8-10 times compare with the traditional ones, and the wood-plastic templates can fall from the 3 to 4 meters height without damage and deformation. Also have the advantages of non-bibulous, non-stratification and not easy remolding

5.Other features: same as the traditional templates can saw, nail and drill. And it is easy for construction workers installation and integration. Also have the advantage of flame retardant, anti-corrosive and moth-proof and can adapt to the temperature change range, eliminates the unnecessary risk of loss and potentially dangerous. In recent years, wood-plastic templates factories invest a large amount of funds and employ high-class workers, after long time research and experiments, got the breakthrough in manufacturing wood-plastic machines and technology, succeed in producing the machines and put it in operation and extrude the high quality wood plastic building templates. Every day output is 500square meters(thickness12-15mm).so get the leading position in the industry field.
