abs plastic sheet extruder

  • 1 - 4 Sets
    $150,000.00
  • 5 - 9 Sets
    $140,000.00
  • >=10 Sets
    $130,000.00
Model Number:
SJ120
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Sheet
Plastic Processed:
PVC
Output (kg/h):
300 - 500 kg/h
Screw Design:
Single-screw
Screw Material:
38CrMoALA
Screw diameter (mm):
120
Screw L/D Ratio:
33:1
Screw Speed (rpm):
1500 rpm
Showroom Location:
Canada, Brazil, India
Place of Origin:
Shandong, China
Brand Name:
Tongsan
Voltage:
380V/50hz/3phase
Dimension(L*W*H):
25m*2m*4m
Weight:
25000kgs
Certification:
CE certificated
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Key Selling Points:
High Productivity
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Italy, India, Russia, Colombia, Romania
Applicable Industries:
Garment Shops, Machinery Repair Shops, Food Shop, Energy & Mining
Marketing Type:
Hot Product 2019
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw
plastic extruder:
single/double screw extruder
plastic making machine:
plastic pipe/sheet/profile machinery
plastic extrusion machinery:
pvc/pp/pe/abs/hips/pmma/wpc machinery
pvc plastic machinery:
pvc pipe/sheet/profile machinery
pe plastic machinery:
pe pipe/sheet/profile machinery
pp plastic machinery:
pp pipe/sheet/profile machinery
abs/hips plastic machinery:
abs/hips sheet/plate machinery
wpc machinery:
wood plastic wpc profile/door/board machinery
pipe machine:
plastic pipe machinery
Supply Ability
Supply Ability:
5 Set/Sets per Month plastic machinery
Packaging & Delivery
Packaging Details
plastic machinery: wooden packing, pallet packing, according to customer's requirements
Port
Qingdao port plastic machinery
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 To be negotiated
Product Description

abs sheet extruder

1,Plastic sheet extrusion line is capable of continuously producing mono-layer or multi-layer PVC/PP/PE/ABS/PMMA/PC/PS/HIPS plate and sheet with the width less than 3000mm and thickness of 0.25-30mm . The products are widely used in the fields of refrigerater ,air conditioner ,auto,advertisement ,and construction ,environment protection ,etc.

2, Plastic sheet extrusion line includes many equipments ,such as :extruder ,screen changer and mould,three-roller calendaring machine,bracket of cooling roller,landscape orientation cutting machine and the winder.

Equipment list for HIPS ABS PP PE Sheet making machine/ plastic sheet extrusion machine
Machine list
Quantity
Raw material drying device
one set
Material auto feeding
one set
High output Single screw extruder
two sets
Melt dosing pumps and hydraulic screen changer
two sets
Co-extrusion Mold & Distributor
one set
Three-roller calendaring machine
one set
Cooling bracket
one set
Hauling off device
one set
Cutting device
one set
Stainless steel stacker
one set
Electricity control system
one set
Detailed Images

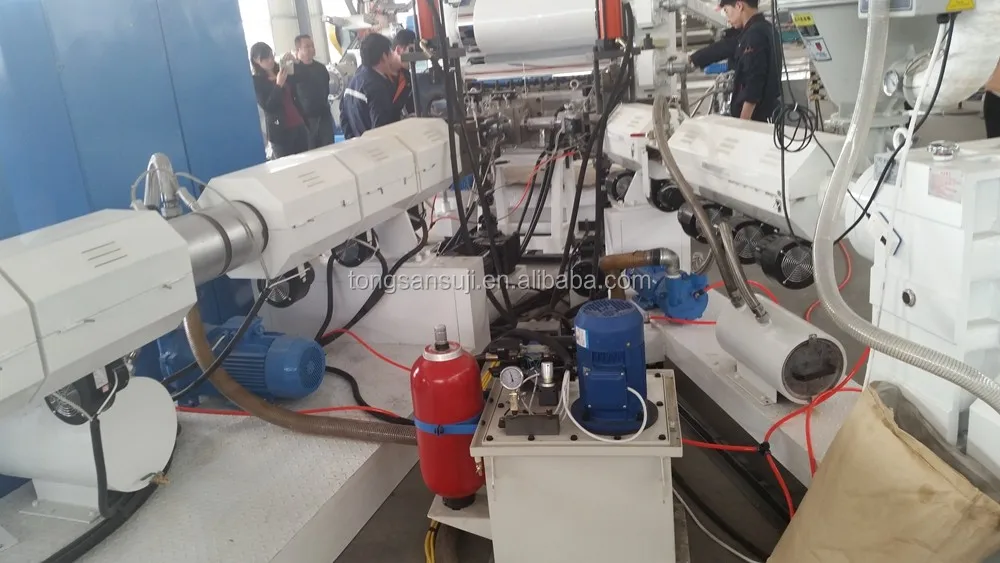

Extruder for Plastic sheet extrusion machine

Appropriate single-screw extruder (exhaust or not) should be chosen on the basis of different materials. Specially designed screw
and advanced temperature controlling system ensure the good plasticization, high output and stable extruding.

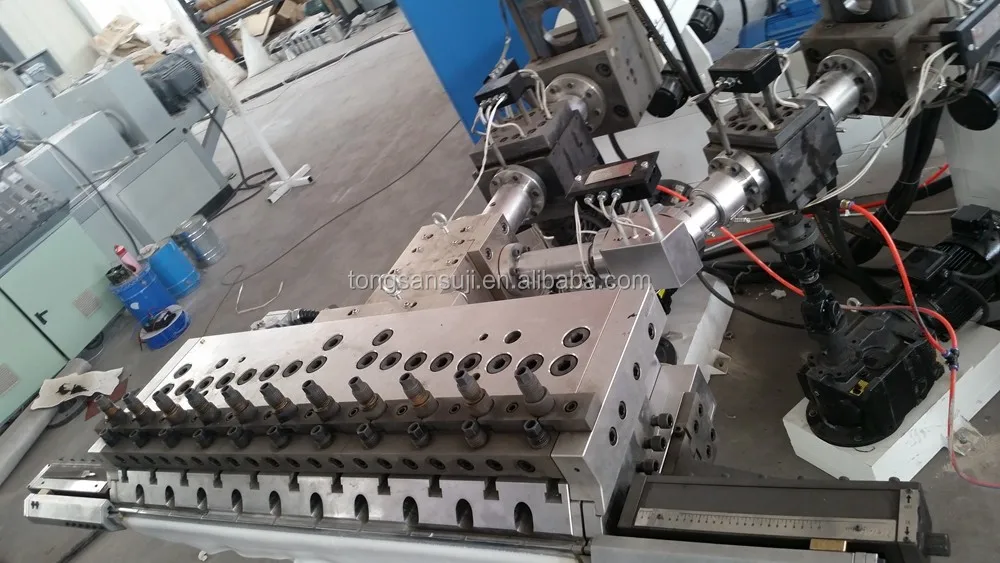

Mold for Plastic sheet extrusion machine

The quick screen changer of hydraulic system ensures the short course of screen changing without material-leakage. Reasonable
structure of mould should be chosen in terms of material, whereas moulds of clothes-rack mode are widely accepted to regulate
flow-distribution and guarantee even thickness of plates (sheets).

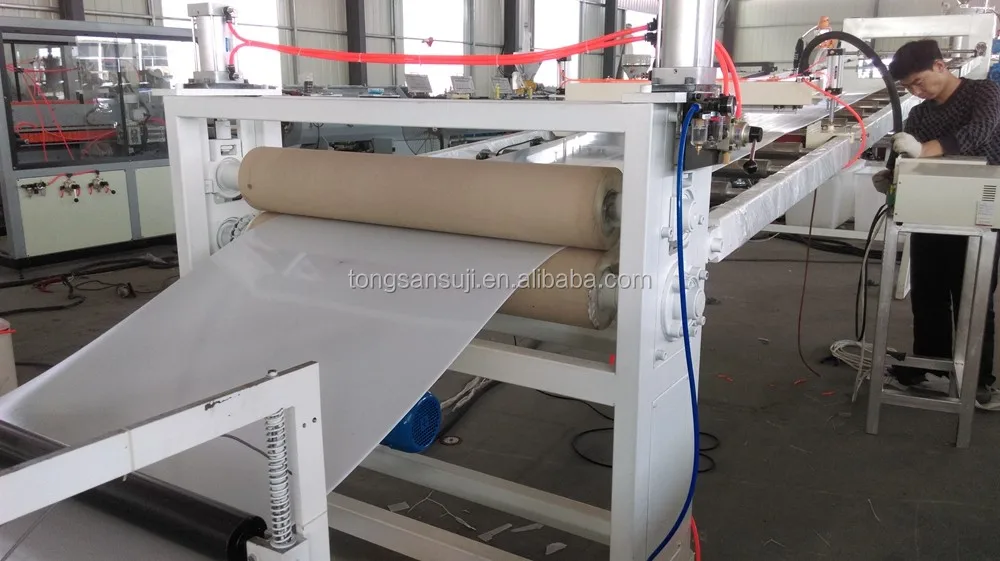

Three roller calendaring machine for Plastic sheet extrusion machine

Inclined and vertical three-roller calendaring machine should be chosen according to the thickness of the plates(sheets). Temperature controller operates separately and gap among the three rollers can be adjusted freely, and the central roller has special design of regulating angle. Both ensure the excellent calendaring effect and even thickness of plates (sheets).

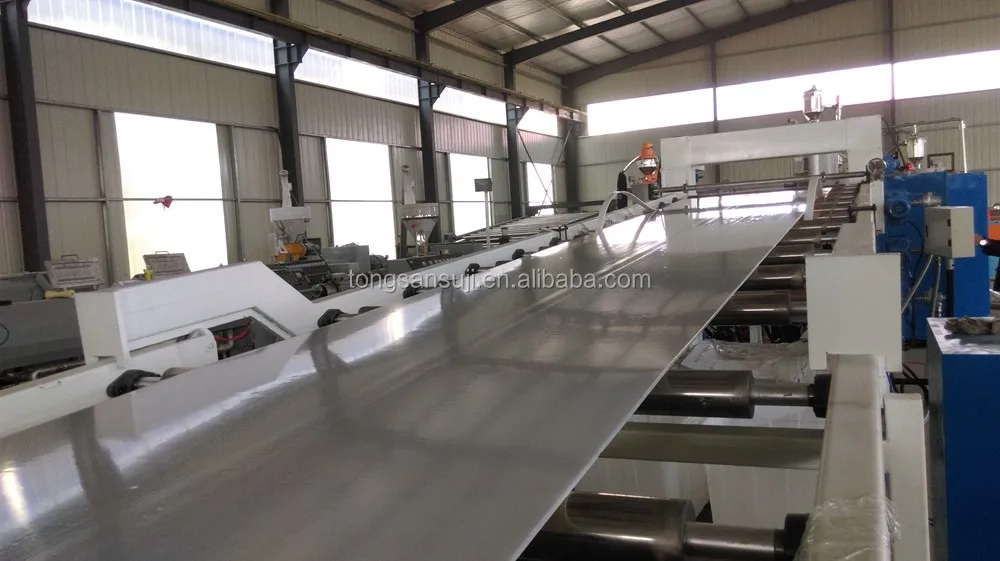

Cooling bracket for Plastic sheet extrusion machine

Equipped with corresponding guide roller, the cooling effect is better. In addition, the edge-shearing device equipped can guarantee fixed width of plates (sheets) and quality of edge.

Side cutting for plastic sheet extrusion machine

Side cutting for cutting the width of the Plastic sheet.

Cutting by: high quality alloy knives.

Quantity of Knives: two sets

Cutting edge recycling: with online crushing system

Haul off machine for plastic sheet extrusion machine

Double roller haul off machine

Roller material: rubber

roller up and down: by cylinder control

Speed control: Frequency

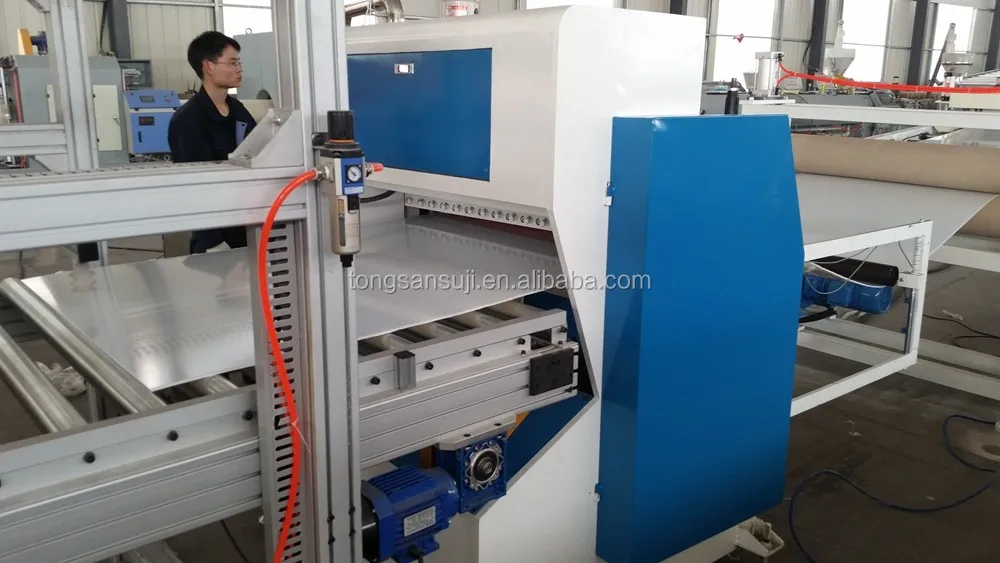

Cutting machine for Plastic sheet extrusion machine

It is of length-fixed cutting with cutting precision less than 2mm and adopts alloy blade or rigid alloy saw bit to ensure the good cutting effect and constantly stable performance.

Stacker for Plastic sheet extrusion machine

Stacker width: according to sheet width

Stacker length: 3 meters

Stacker material: stainless steel

Stacker type: automatically

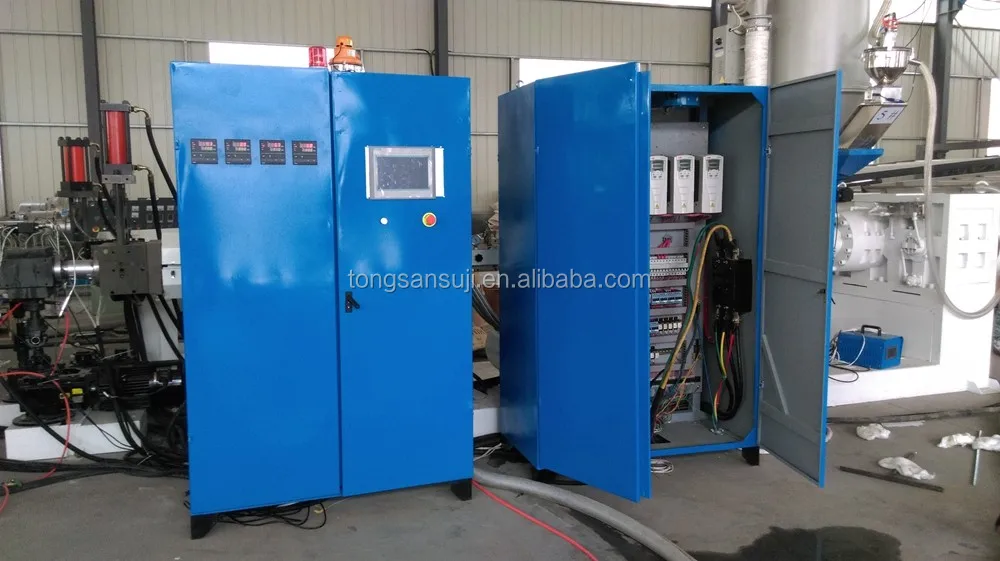

electricity control cabinet for plastic sheet extrusion machine

 Motor: Siemens motor

Inverter: ABB inverter

Temperature control: Omron brand

Contractor: Schneider

PLC control: Siemens brand computer touch screen

Customer Case

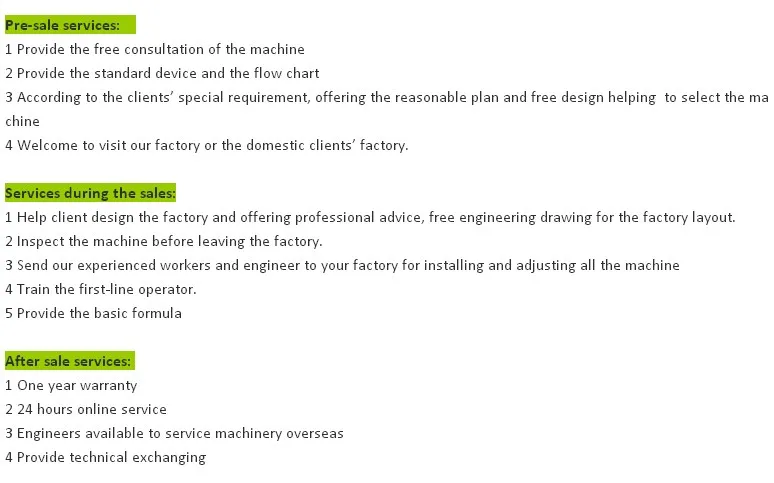

Our service
