pvc window and door frame making machine

FOB Reference Price:Get Latest Price
$40,000.00 - $60,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SJSZ65/132-PVC profile machine
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$10.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Profile
Plastic Processed:
PVC
Output (kg/h):
150 - 240 kg/h
Screw Design:
Double-screw
Twin Screw Type:
Counter-rotating conical Twin-screw
Screw diameter (mm):
65 mm
Screw Speed (rpm):
1500 rpm
Showroom Location:
None
Place of Origin:
Shandong, China
Brand Name:
TONGSAN
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
20m*1m*3m
Weight:
12Tons
Certification:
CE ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
Multifunctional
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Marketing Type:
Hot Product 2019
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw
Machine:
WPC solid door frame making machine
Material:
pvc material and wood powder,caco3
Products size:
10-3000mm width
production line speed:
0.2-0.5m/min
Max. output:
150-200kg/h
Motor:
Siemens motor
inverter:
ABB inverter
Actual power:
125kw installation power
temperature control:
Omron temperature control
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
pvc window and door profile extrusion machine including extruder, die and mold, calibrating device, haul off device, cutter, stacker
each part shall be packed separately by wrapping film, easy-damage parts shall be packed in wooden box or steel box.
packing list shall show the product sizes and weights for each package clearly.
each package shall be marked according to customer's requirements.
Port
QINGDAO,china
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 To be negotiated
Video Description
Product Description

pvc window and door frame making machine

Description of PVC window and door profile extrusion machine,WPC solid door frame making machine


1, plastic pvc profiles extrusion line is specializing in producing PVC plastic profiles including doors and windows profiles, decorative plates, tiny foaming profiles and decorative plates.


2, pvc profile machine uses PVC powder as material to produce various sorts of the mentioned plastic profiles as profiles for doors and windows, decorative profiles, etc.

3, By Absorbing advanced technology from abroad, our company developed the large plastic profile extrusion line, which is equipped with conical double-screw extruder, and it possesses the advantages of high degree automation, stable performance, high output and efficiency, etc.

4, If change certain screw and mould, the pvc profile machine can directly extrude foaming profiles, and the effect is much better than that of single-screw.

5, pvc profile extrusion line is optimumly designed by referring to the latest overseas technology, it bears the features of even plasticization, low cutting rate, high output, and long lifespan, etc. And it composes conical double-screw extruder, vacuum sizing platform, tractor, cutting and film coating machine and material stirring bracket,etc.

6, The pvc profile machine is run by alternating current frequency controller or direct current controllable silicon. The temperature controlling instrument is introduced from abroad. In addition, the vacuum pump and traction engine of the auxiliary machines are quality products which can be maintained easily

7, To match with different moulds, the shape-fixing platform of 4m, 6m, 8m or 11m, etc. can be chosen accordingly. The main machine with parallel double-screw is especially suitable for high-speed extrusion of various kinds of profiles.

Different model
Model
SJSZ-51
SJSZ-65A
SJSZ-80
SJSZ-92
Total Power(kw)
25
64
115
168
Max profile with (mm)
200mm
400mm
900mm
1500
Profile products
electricity truck, house deractive line, small profiles
window and door profile, wall panel, ceiling panel
door panel, furniture panel
door panel, furniture panel
Detailed Images

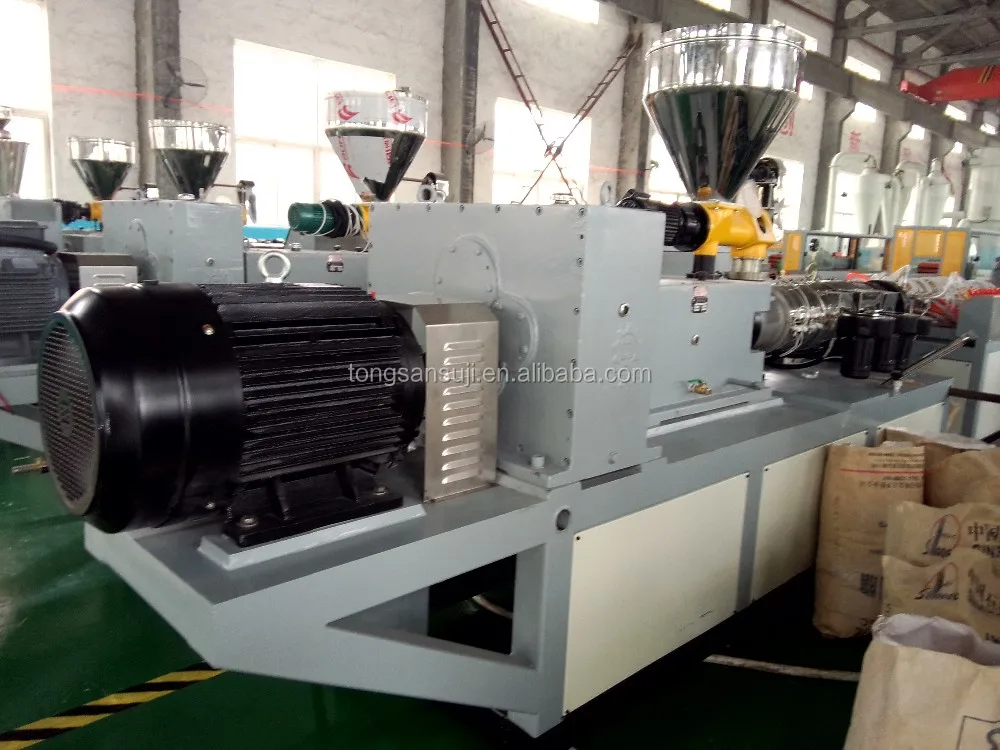

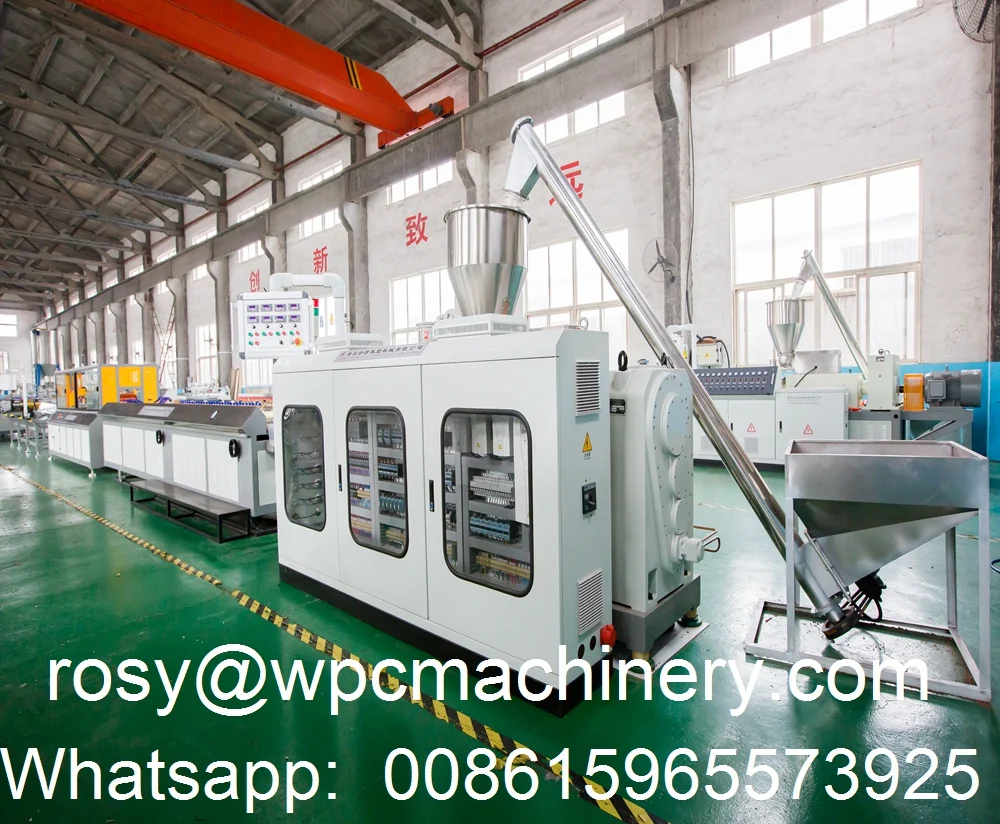

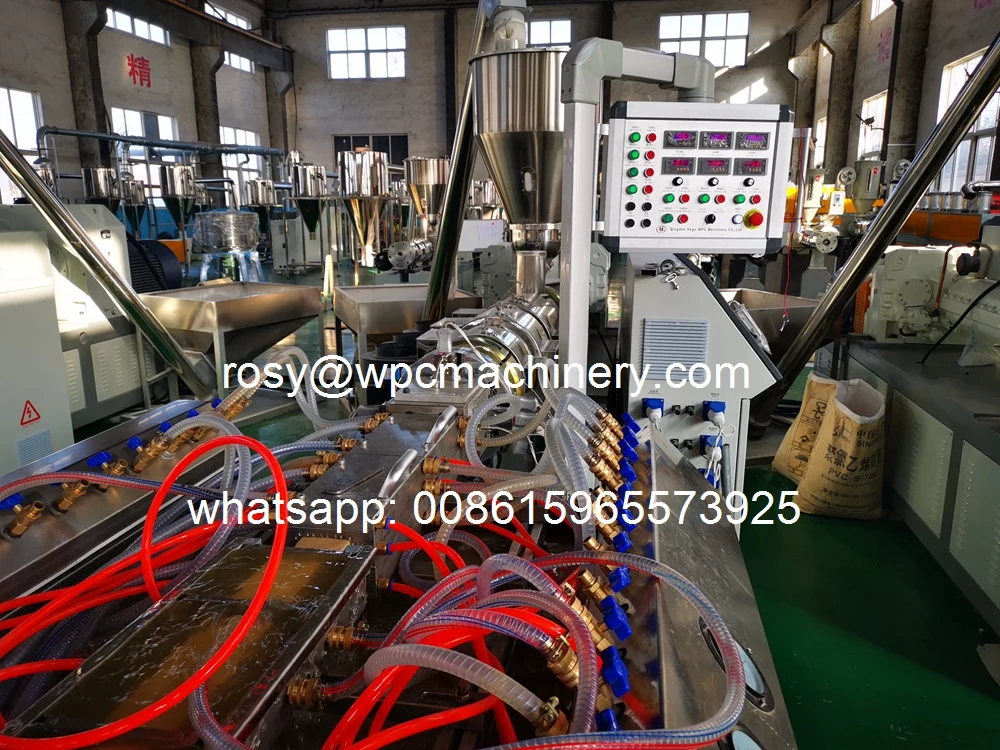

Extruder for pvc window and door profile extrusion machine

Extruder type: Conical double screw extruder

Model: SJMS65/132

Motor: 37kw

feeder: Auto feeding


Mold for pvc window and door profile extrusion machine
Die head: one set

calibrators: three pieces

Mold heating: one set four pieces

water tank: one piece

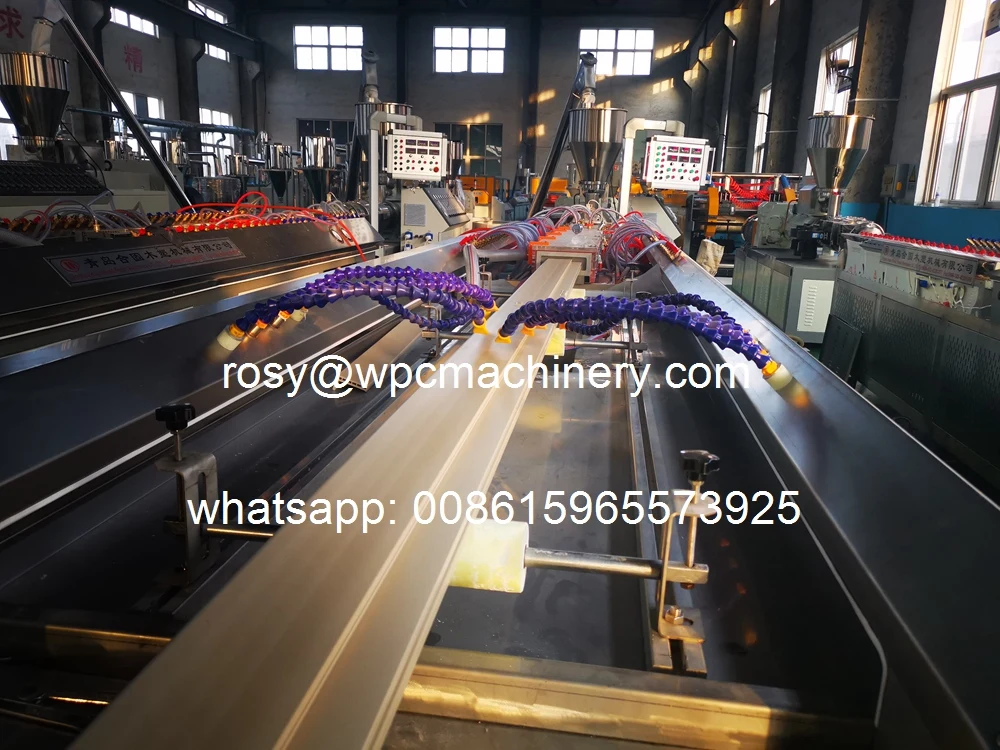

cooling and calibranting device for pvc  window and door profile extrusion machine

Cooling type: vacuum cooling and water cooling

Cooling machine length: 6 meters

water pump: 1 set

vacuum pump: 1 set

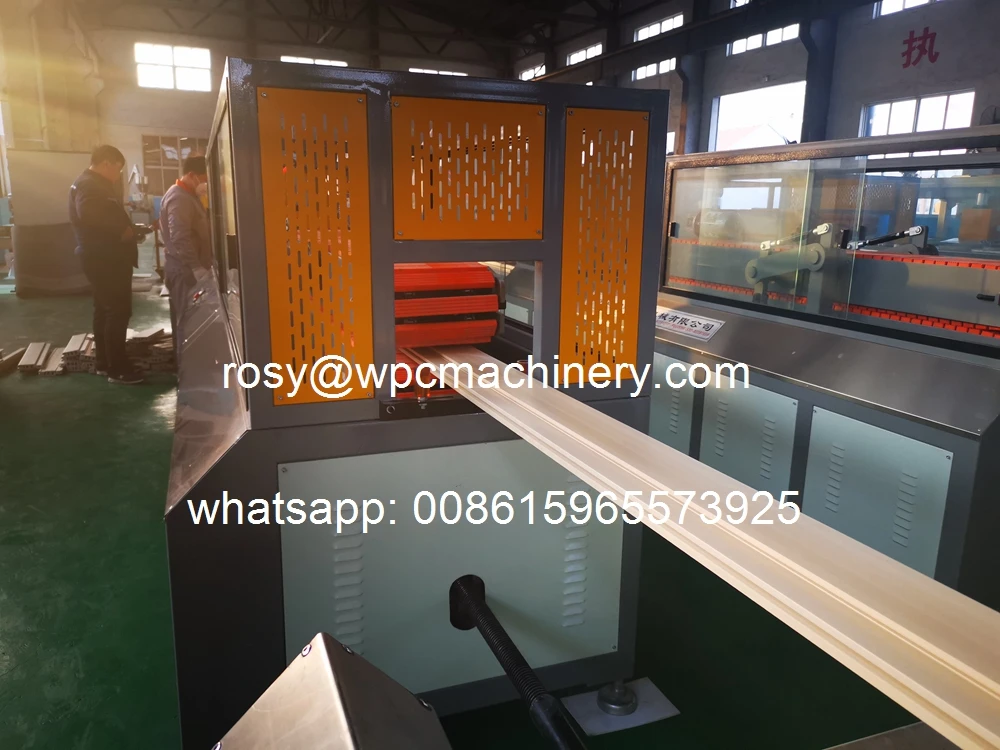

Haul off machine for pvc window and door profile extrusion machine

Double caterpillar: rubber caterpillar

Power: 2.2kw

Window glass: moveable

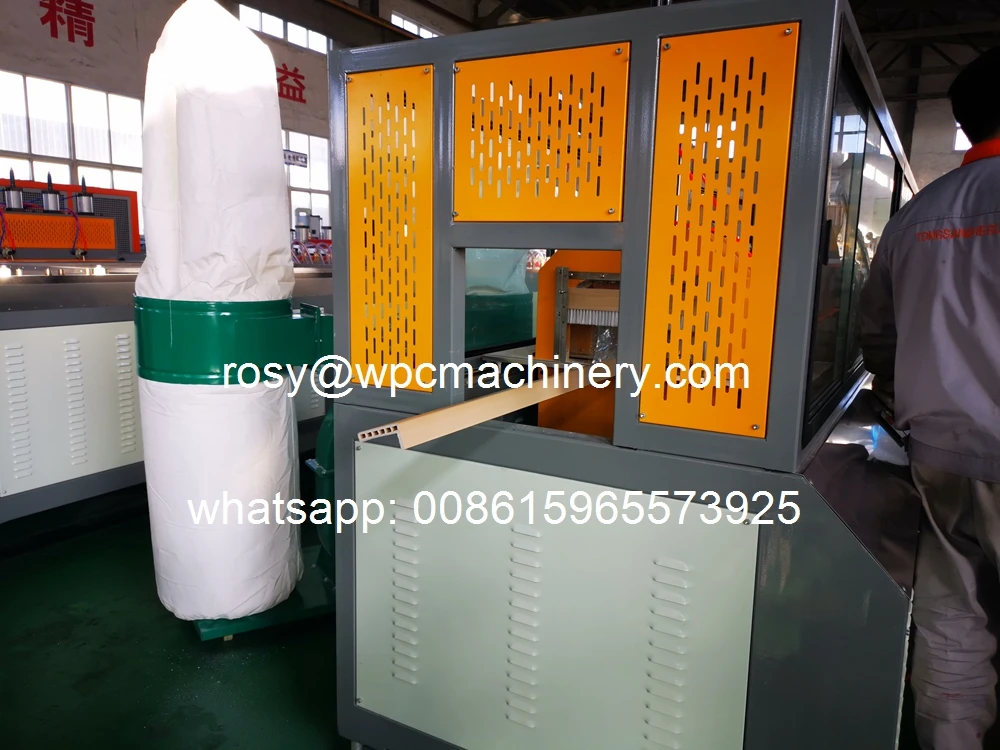

Cutting machine for pvc window and door profile extrusion machine

Cutting power: 1.1kw

Cutting by automatical control

Length fixed as required, adjustable

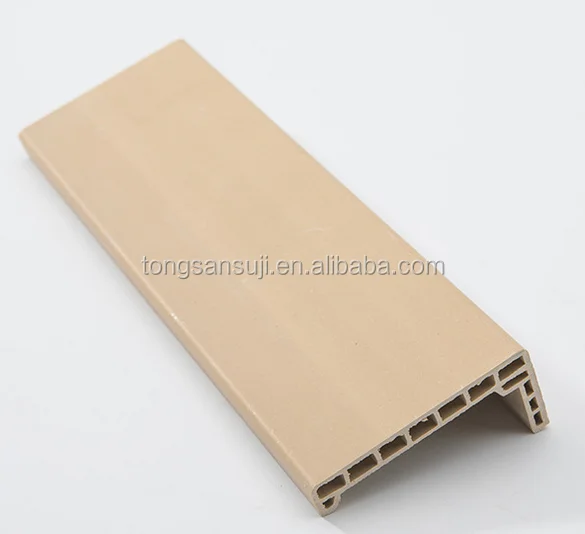

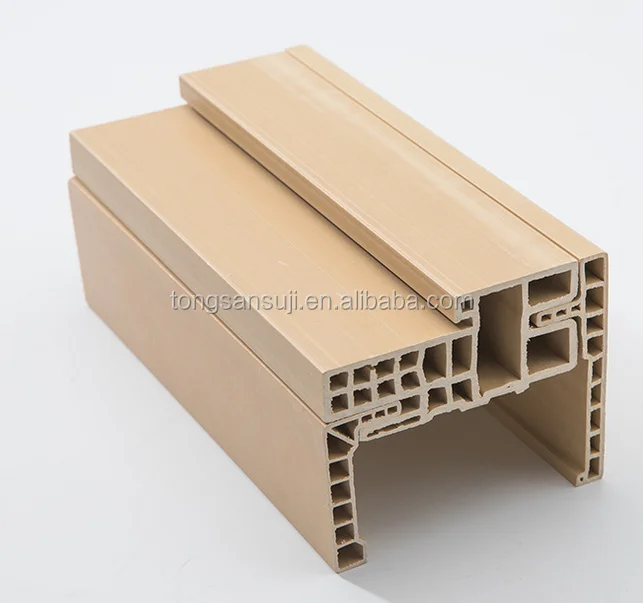

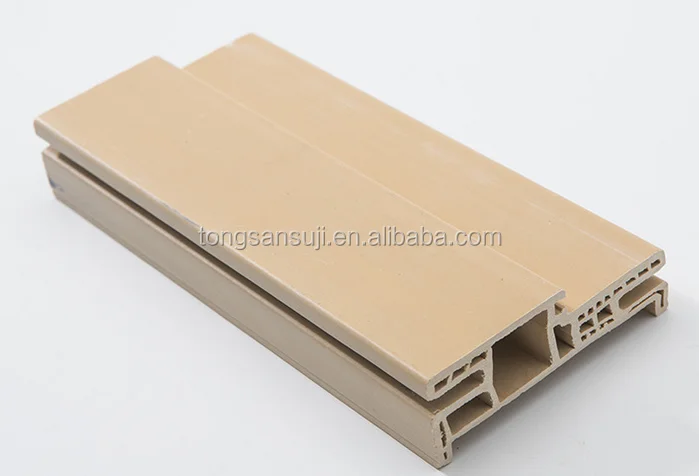

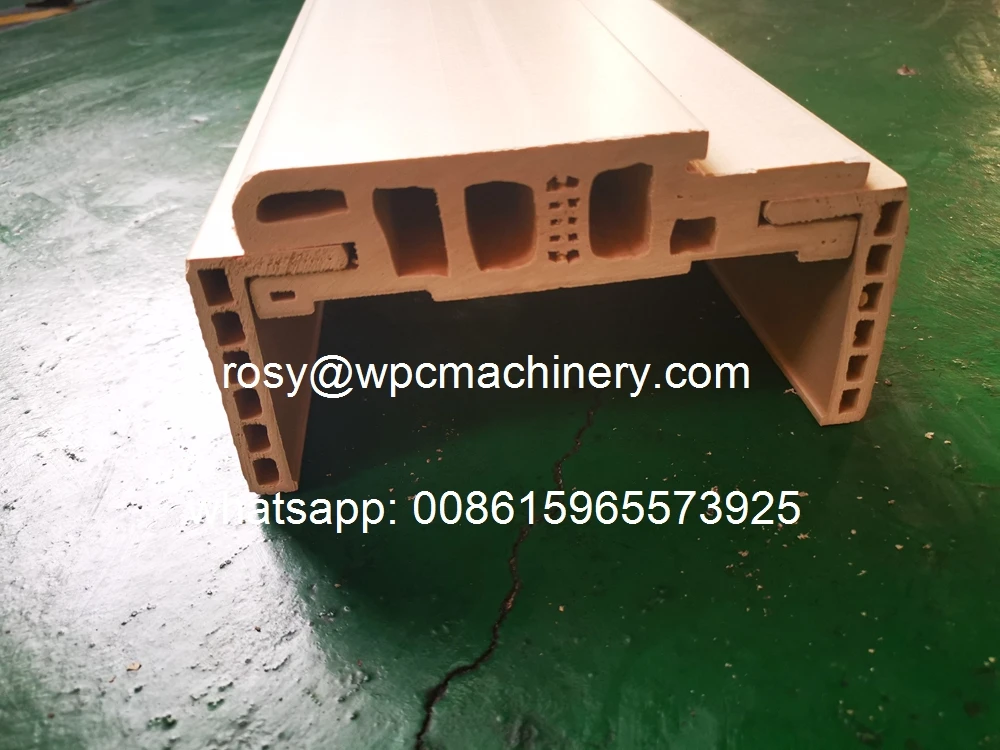

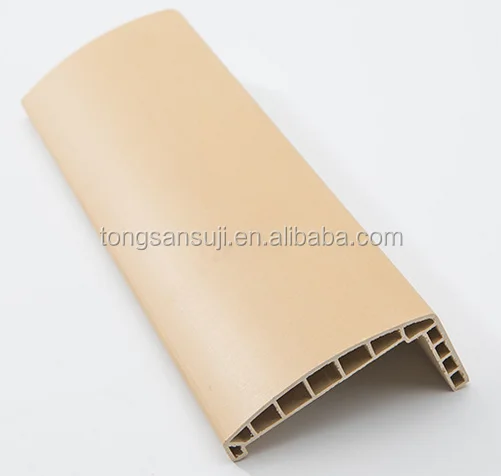

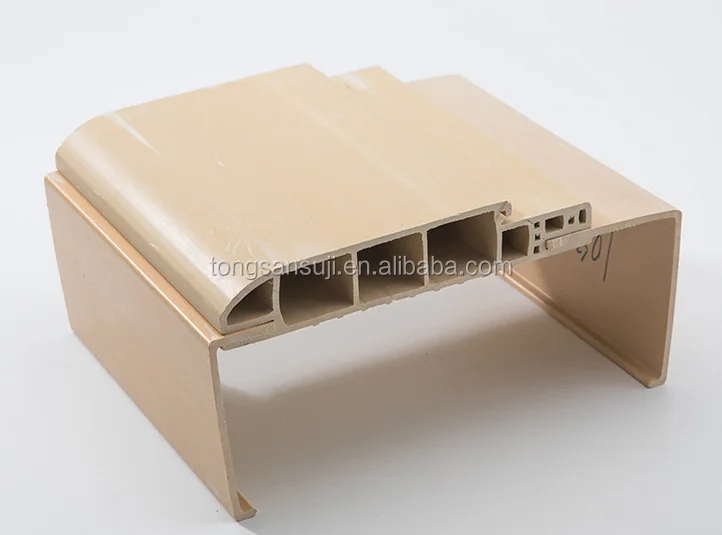

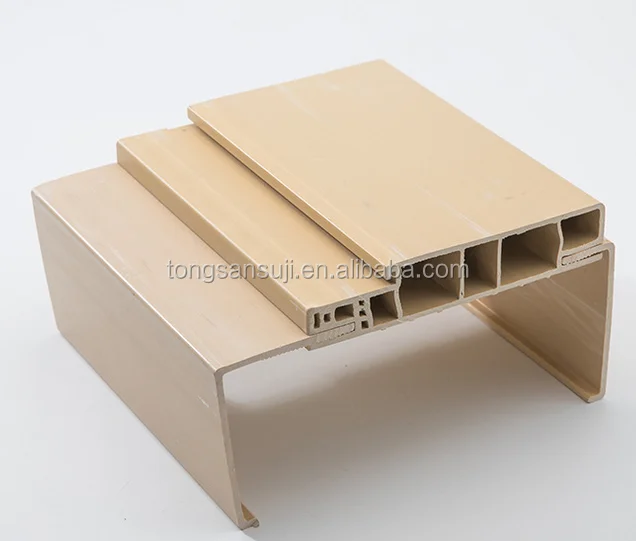

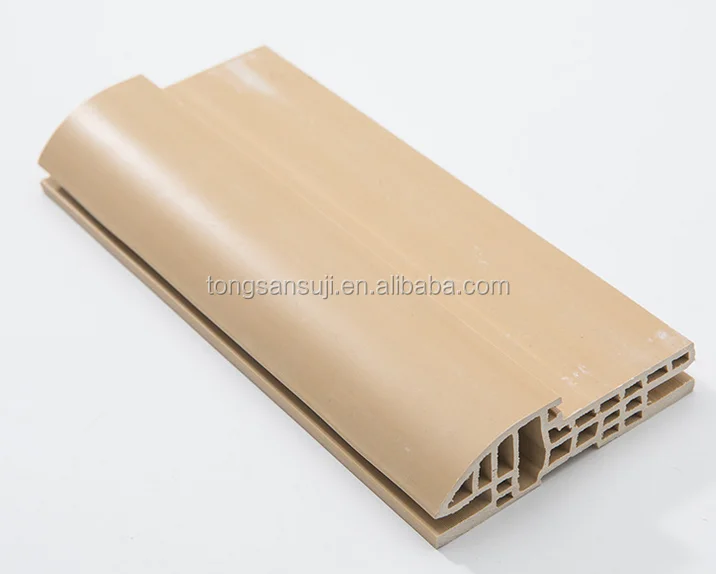

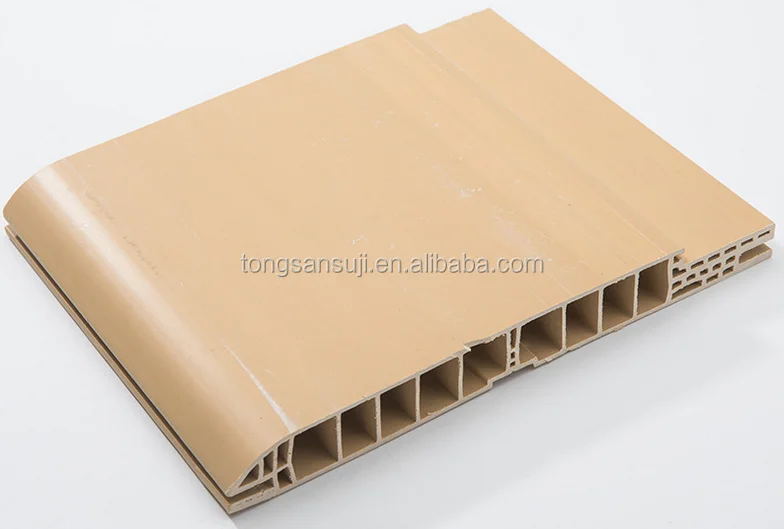

WPC door profiles
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

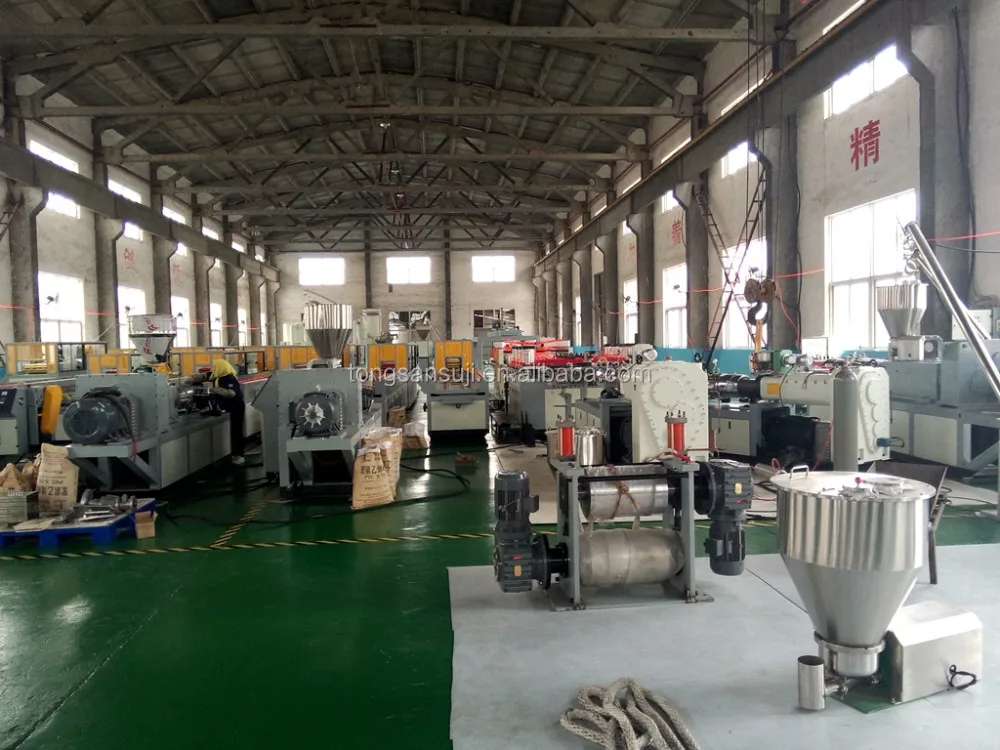

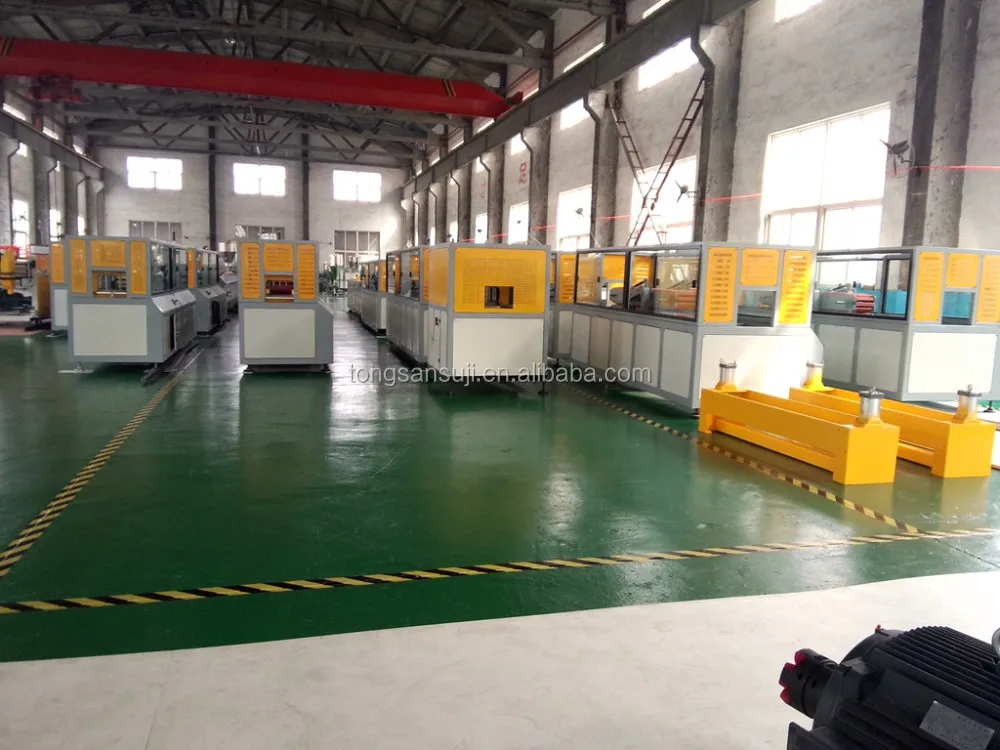

WPC machine workshop

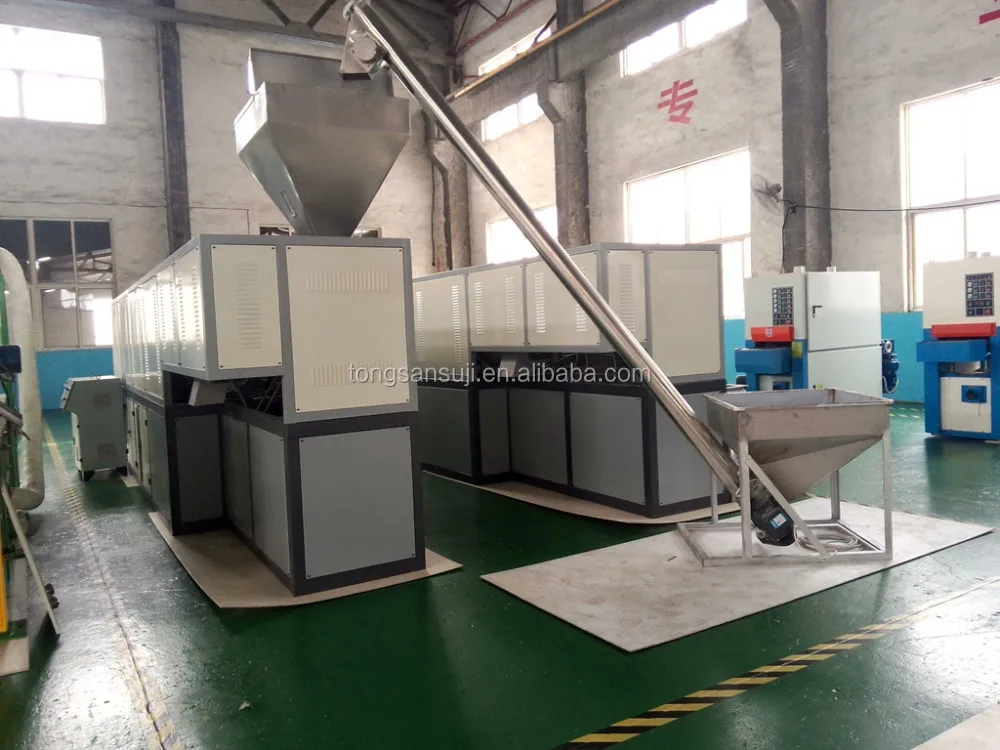

High quality extruders in workshop, wpc door extrusion line, WPC board extrusion line, WPC profile extrusion line, WPC decking extrusion line, WPC granulation line.

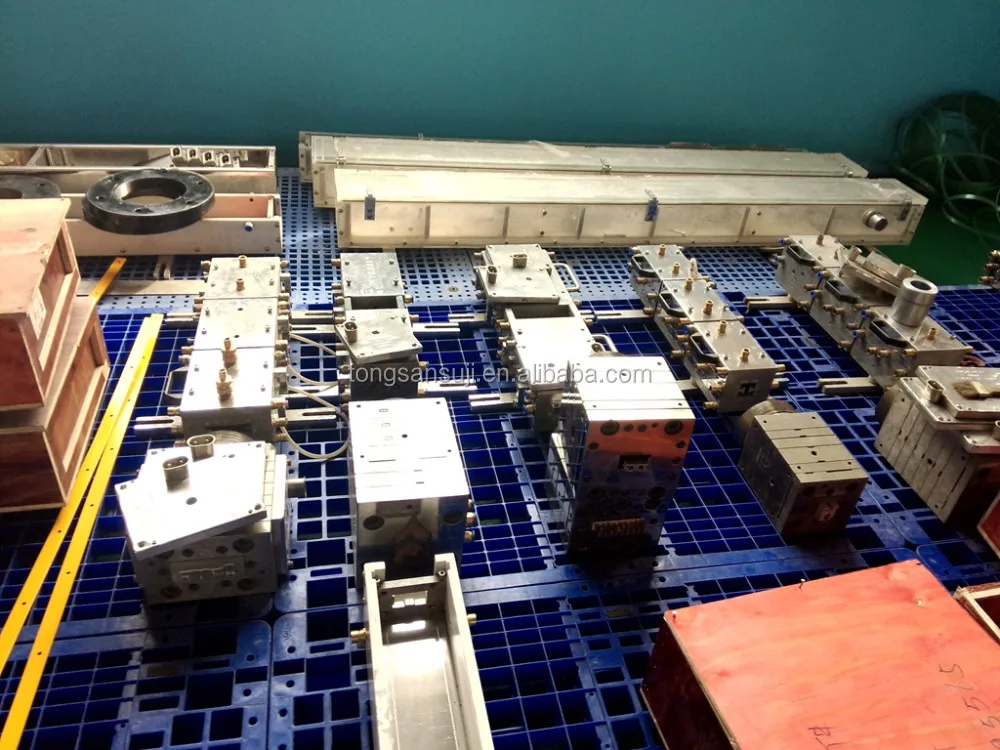

High quality molds for WPC production

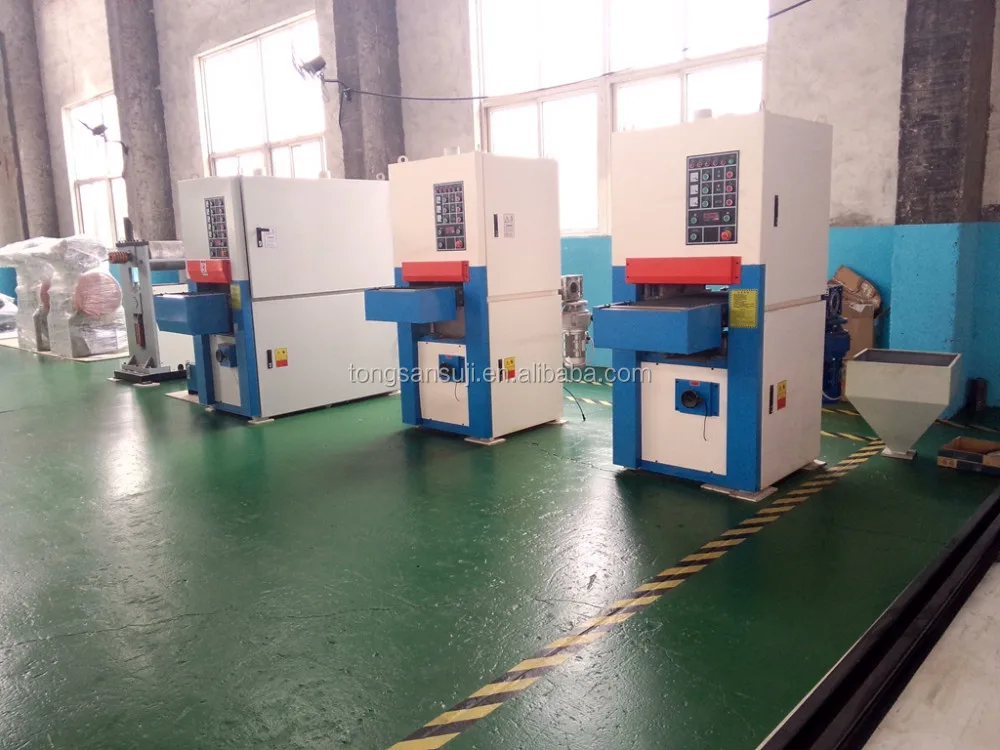

We provide turnkey project for complete WPC production,auxiliary devices are avaliable, such as sanding machine, embossing machine, brushing machine, laminating machine, engraving machine

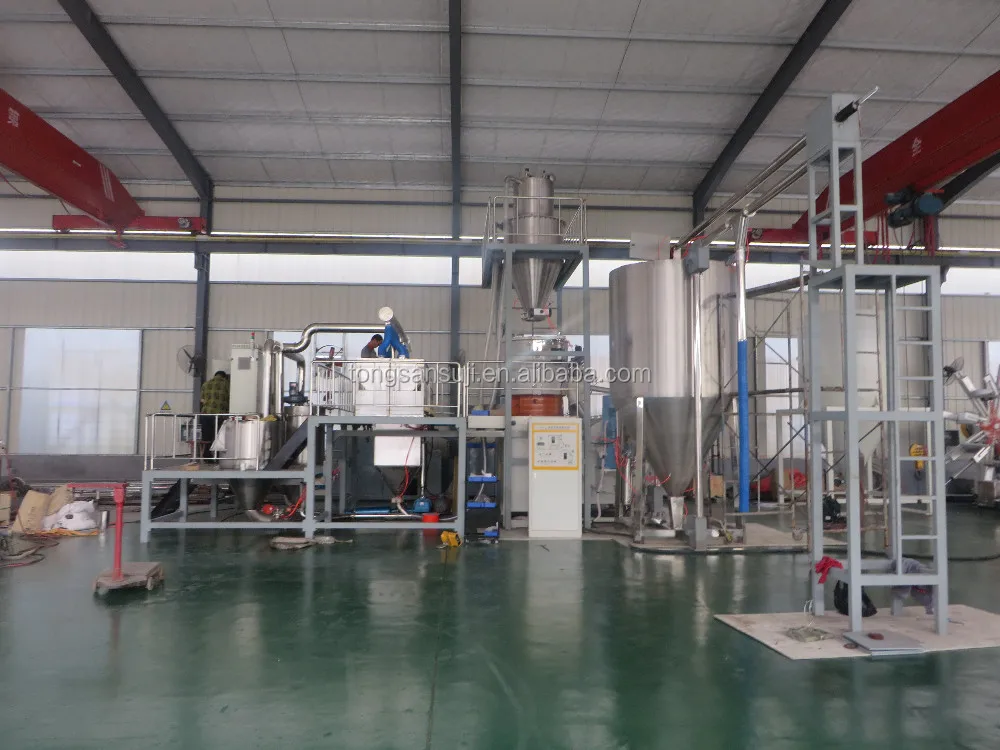

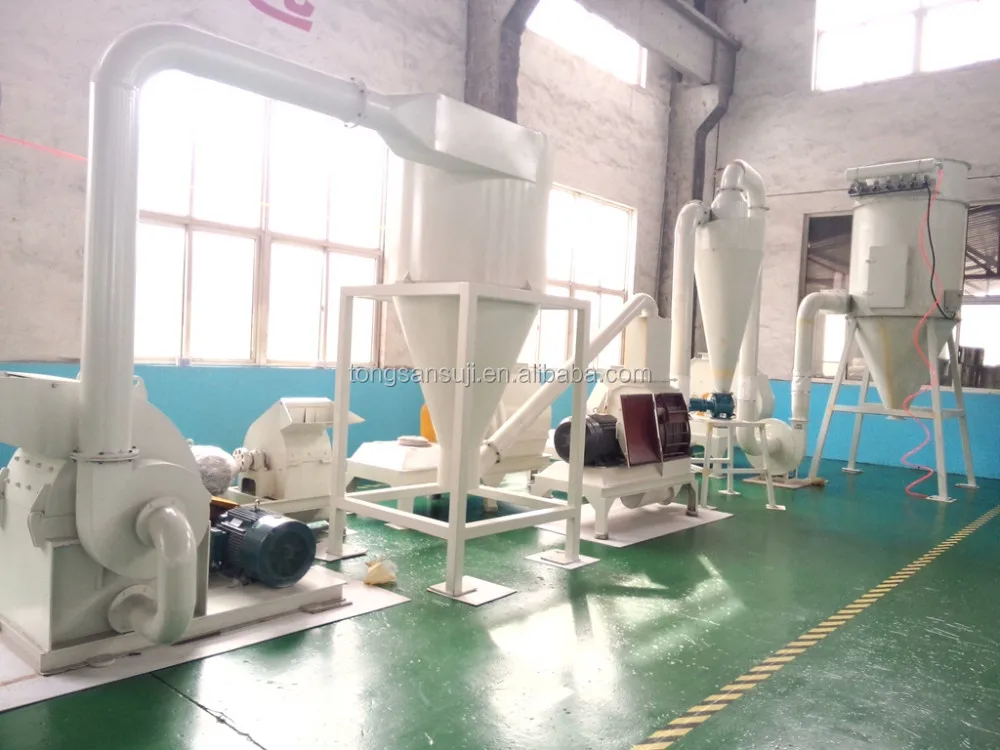

this wood powder crushing and milling machine can work for wood sawdust, rice husk, rice straw, it can make the wooden fiber into wood powder for 80-120mesh.

if there is high moisture in the wood powder, we can also equip this wood powder drying machine for you.

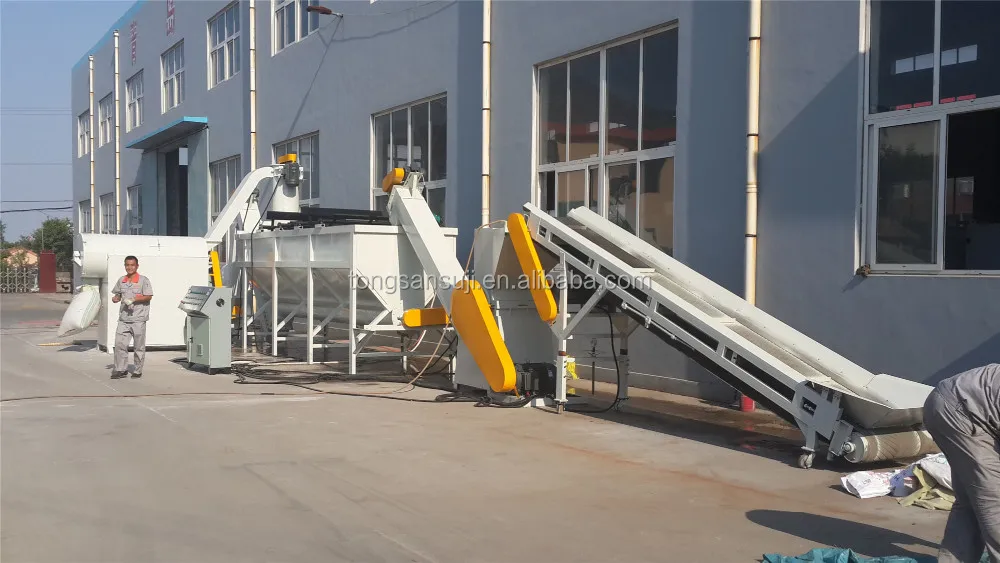

If you want to use recycle plastic for making WPC products, we can also quip for you the Plastic washing and crushing recycling machine

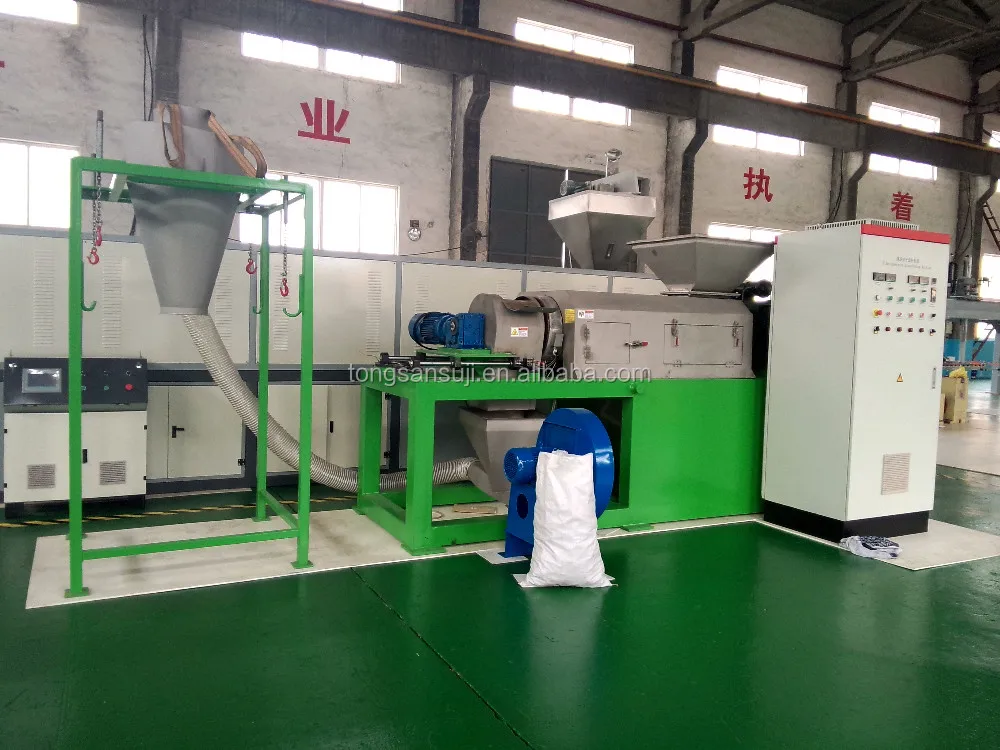

If your recycle plastic with high moisture and low density, we suggest you equip the plastic drying and agglomeration device as above picture


Mixing machine is necessary for WPC production, it can mix wood and plastic and chemicals into uniform mixing


if customer like high capacity and automatical mixing system, we can equip above auto dosing and mixing system for 1.6tons per hour automatical mixing.
