SPECIAL PRICE Recycled Plastic and Waste wood recycling Plastic lumber WPC decking profile extrusion machinery

  • 1 - 4 Sets
    $38,000.00
  • 5 - 9 Sets
    $36,000.00
  • 10 - 19 Sets
    $34,000.00
  • >=20 Sets
    $30,000.00
Model Number:
65/132 80/156 92/188 51/105 90/30
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 120 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
wpc machine (Min. Order: 1 Sets)
wood plastic machine (Min. Order: 1 Sets) Less
Samples:
$10.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Sheet, Profile, Plates
Plastic Processed:
PE, PP, PVC, WPC, wood-plastic
Output (kg/h):
150 - 240 kg/h
Screw Design:
Double-screw
Showroom Location:
Egypt, United States, Italy, India, Colombia, Romania, South Africa, Japan
Place of Origin:
China
Brand Name:
TONGSAN
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
20mx2.5mx2.2m
Power (kW):
37
Weight:
8-20T
Certification:
CE ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
Multifunctional
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Canada, Italy, Mexico, Japan, Colombia, South Africa
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Marketing Type:
Hot Product 2019
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty of core components:
1 Year
Core Components:
Extruder and Mold
Wood plastic profiles machinery:
plastic lumber machinery
Material:
PE/PP/PVC
Capacity:
240kg/h
Max.Cutting Section(L*W):
240*65mm
Production line speed:
0.5-1.5m/min
Screw:
Conical twin screw
Screw rotation:
converse-direction,outside rotation
Motor:
DC Motor
Products surface treatment:
Napping treatment
Screw diameter (mm):
65 mm
Screw L/D Ratio:
28
Screw Material:
Bimetalic
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
wood plastic lumber machinery: wooden packing, film packing for wood plastic machine
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 120 To be negotiated
Video Description

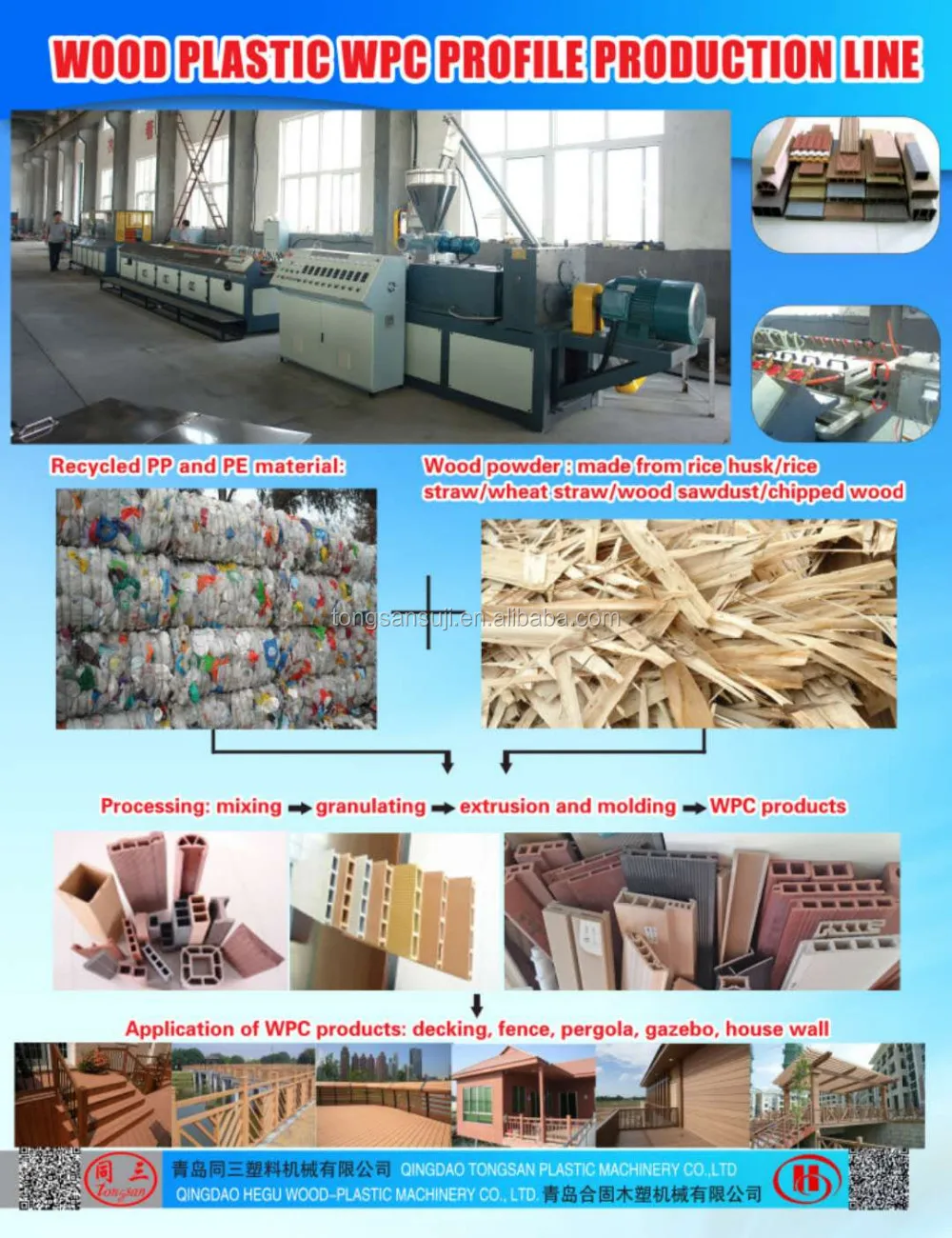

Wood Plastic Composition Process
Machine
Capacity
Application
Wood/husk/straw powder making machine
300 kg/h
For making the wood/husk/straw into powder size, it needs wood chipping,wood crushing, Wood milling and wood drying process
PP/PE plastic recycling machine
300 kg/h
For recycling PP/PE wastage, it needs crushing, washing and drying process
WPC mixing machine
500 kg/h
mixing the material according to the formula, generally it can be max 70% wood powder
WPC granulation machine
400 kg/h
Making the material into WPC granules by hot granulation.
WPC profile extrusion line
150 kg/h

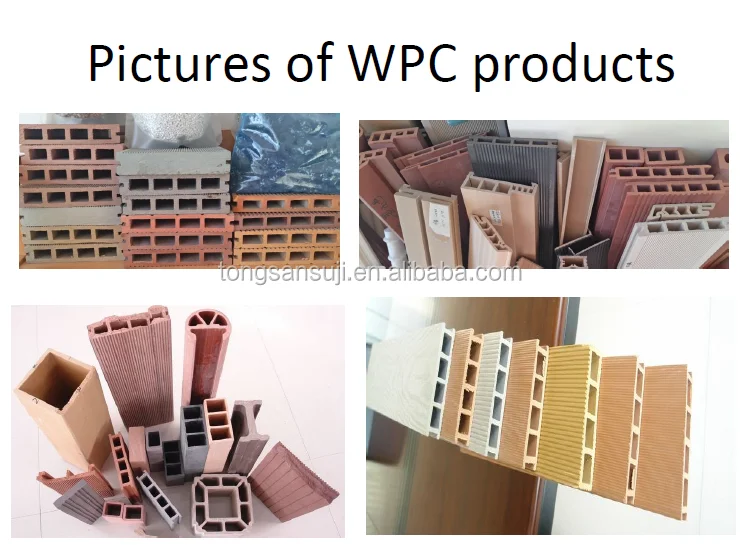

making the WPC Profiles by extrusion and moulding, such as decking, wall panel, post, fence. you can make different products by changing mold
WPC co-extruder
15kg/h
for co-extrusion anti-enviroment material on surface for increasing the quality and using life
Online embossing machine
for making beautiful design on the produce surface
Sanding machine
for making the product surface with unglossy feeling
Brushing machine
for making the product surface with rough wooden feeling

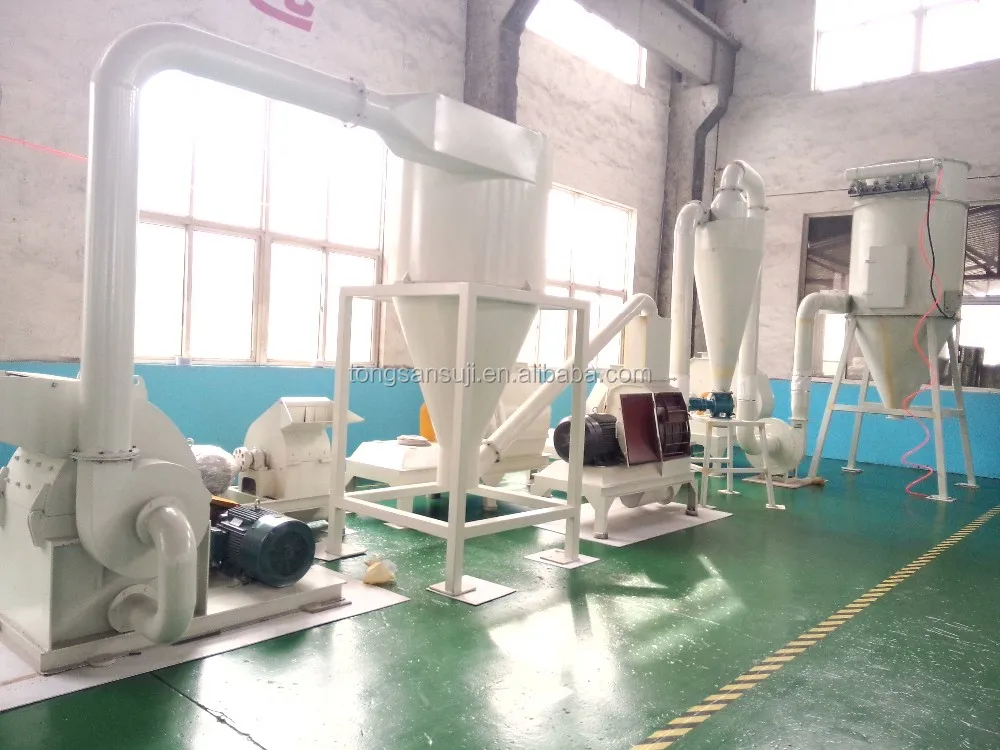

Wood powder making machine

wood chipping--wood crushing--wood milling--wood drying

Technical parameter as below:

Model
JFS60-50
Capacity
200-300kg/h
Feed material
wood log, wood sawdust, chipped wood, rice husk, rice straw, wheat straw, wheat husk, cotton straw, and other agriculture wastage
Wood powder
60-100 mesh

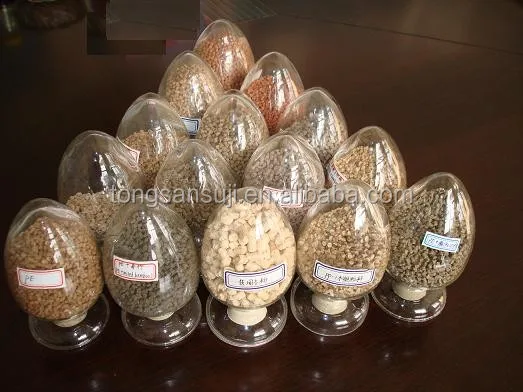

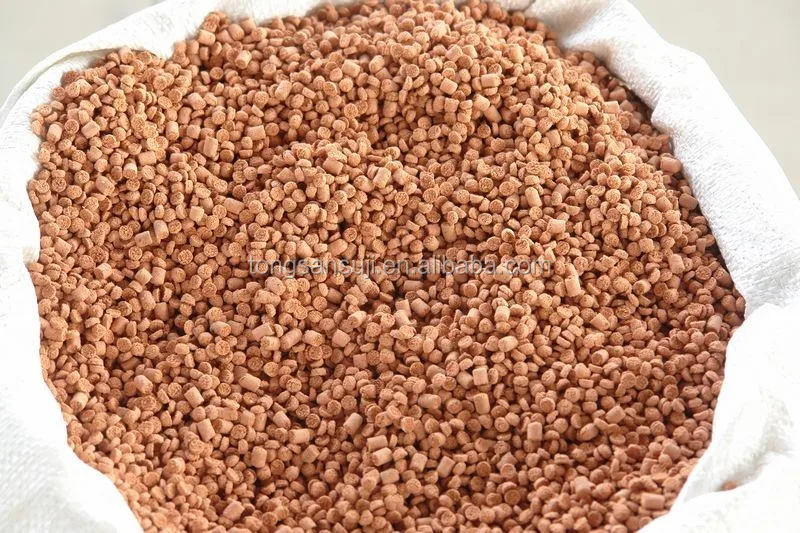

WPC granulation machine

Auto feeding--Extrusion with venting system-- Hot cutting granulation--cooling blowers

Model
SHMS75 parallel double screw extruder with venting system
Capacity
350-450 kg/h
Power
90 KW
Material
25% recycled PP/PE +70% wood powder + around 5% Chemicals

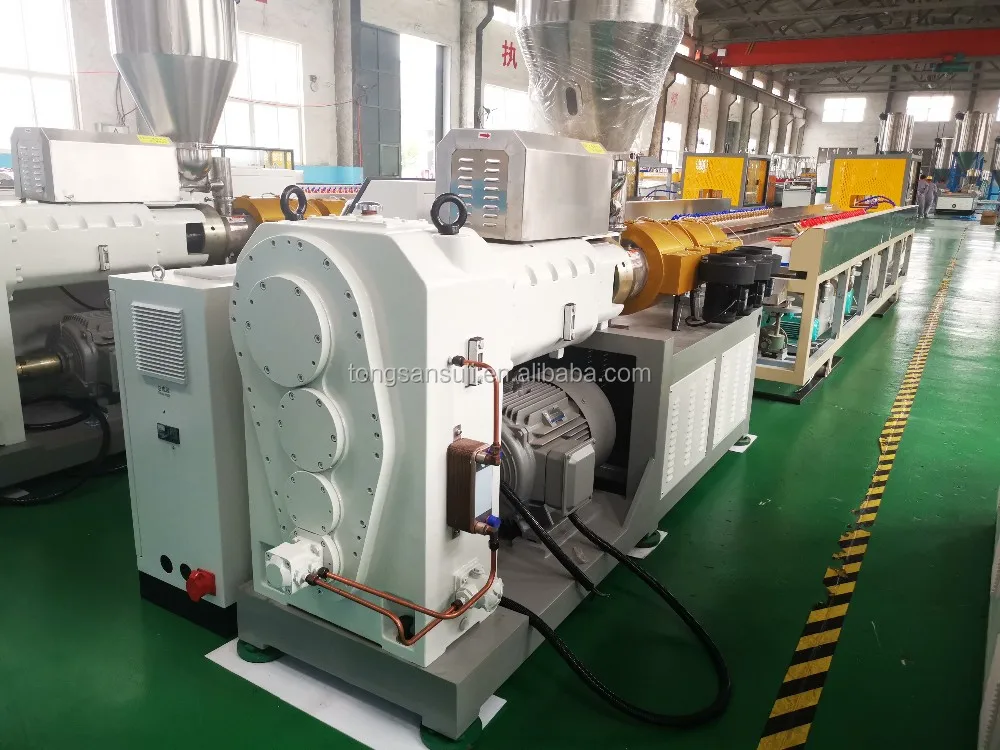

WPC profile extrusion line

Auto feeder--Conical double screw extruder--customized mold--calibrating device--Pull off and cutting machine--stacker

Model
SJMS65/132 conical double screw extruder
Capacity
150-250kg/h
Power
37kw
Speed
0.8-1.5meter/minute

WPC products surface treatment

For making better surface look like and performance, you can do sanding, embossing, or brushing on the WPC products surface.

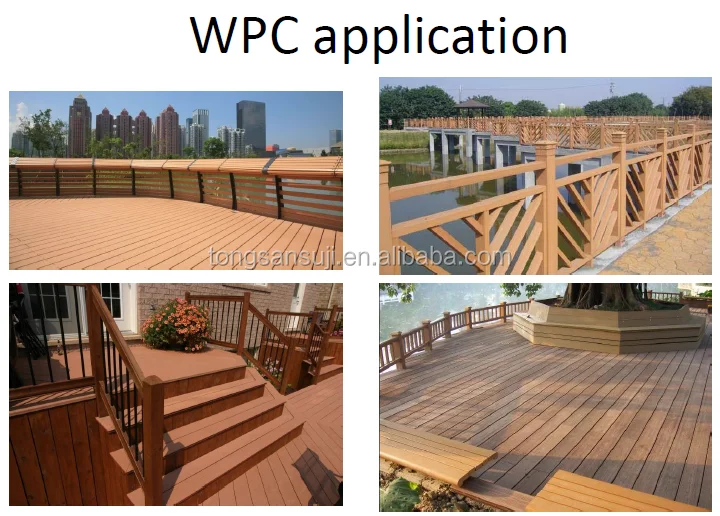

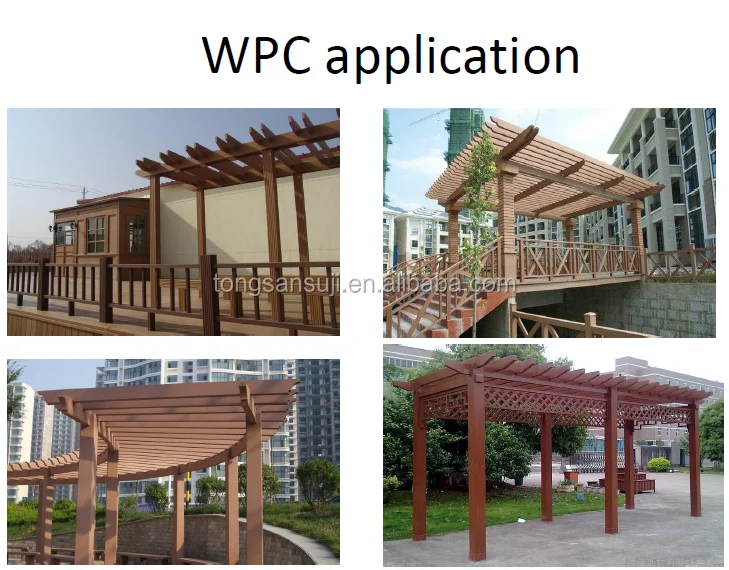

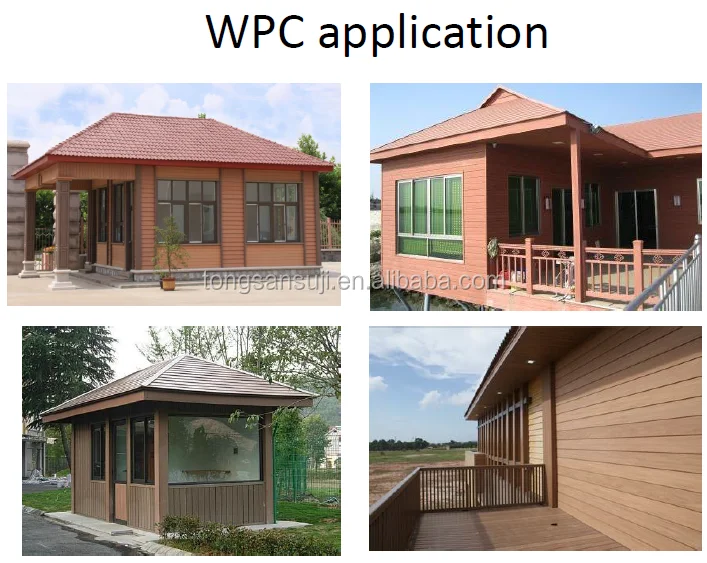

WPC products Application

Application of wood plastic WPC products

The wood-plastic is a new kind of synthetic material which uses PVC,PP,PE resin or recycled plastic and plant fibre ( wood powder,chaff,straw etc.) as raw material and through the process of mixing,exrusion,calibrating,drawing off and cutting. This kind of wood-plastic materials are not only very similar with natural wood in appearance and feel,but also with the same characteristics as wood of excisable, planeable,sawable, unmatched grip,low bibulous rate, good moisture resistance, mothproof,mildew resistance,good resistance to acid and alkali,anti-corrosion, and it has the feature of fire resistance.The products are non-toxic,non-polluting,environment-friendly and save-energied, without formaldehyde, benzene and ammonia and other harmful substances.The wood-plastic products are widely used in outdoor floor,hydrophilic construction,balcony,landscape architecture,chairs and benches, fences, indoor doors and windows, furnitures, etc.

Related Products
Our service

24 HOURS ONLINE SERVICE CONTACT FOR BEFORE SALE AND AFTER SALE,
PLEASE CONTACT:

TURNKEY PROJECT SERVICE:

1, we will provide all the machines for the complete production according to customer's requirements.
2, we will provide complete service for factory layout and other informations to help customer to build the factory.
3, we can also provide the raw material to the customer if you need.
4, we will provide good service for machine installation and trainning, until the customers can run the machines and make stably production.
5, Except one year quality guarantee,we will provide after-sell service for all the life.
6, for long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. let us do win-win business together.

INSTALLATION AND COMMISSIONING
WE WILL SEND THE TECHNICIAN TO BUYER'S FACTORY FOR INSTALLATION AND TESTING THE WHOLE LINE, AND OUR ENGINEER WILL DO TRAINNING TO BUYER'S WORKERS UNTIL THEY CAN RUN OUR MACHINE FOR STABLY PRODUCTION

AFTER SELL SERVICE: ONE YEAR GUARNTEE, FOREVER SERVICE!
WITHIN THE GUARANTEE OF ONE YEAR, WE WILL PROVIDE EFFICIENT AND ON TIME MAINTAINS,IF ANY SPARE PARTS DAMAGED IN THE GUARANTEE TERM BECAUSE OF QUALITY PROBLEM, WE WILL PROVIDE NEW SPARE PARTS FOR FREE FOR REPLACMENT.
