SPECIAL PRICE PVC Pipe extrusion machine UPVC tube production line CPVC pipe making machine with price and machine video

  • 1 - 4 Sets
    $43,000.00
  • 5 - 9 Sets
    $41,000.00
  • 10 - 19 Sets
    $38,000.00
  • >=20 Sets
    $34,000.00
Model Number:
50-160mm
Output (kg/h):
150-240kg/h
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 20 >20
Est. Time(days) 15 60 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
customized size for pvc pipe machine (Min. Order: 1 Sets)
customized electric parts for pvc pipe machine (Min. Order: 1 Sets) Less
Samples:
$10.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
water pipe,electric conduit
Plastic Processed:
PVC
Output (kg/h):
150 - 240
Screw Design:
Double-screw
Showroom Location:
Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
Place of Origin:
Shandong, China
Brand Name:
TongSan
Voltage:
380V
Dimension(L*W*H):
20*1*2.5
Power (kW):
37
Weight:
10000kgs
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
Long Service Life
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Turkey, United Kingdom, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Energy & Mining
Extrusion line:
PVC Pipe extrusion machine
Raw material:
PVC.CPVC
Output:
95kg/h
pipe diameter:
16-63,110-250,250-400,400-630mm
production capacity:
12m/min
cooling mode:
water cooling,fans cooling
metering mode:
inducting mold
controlling system:
man-machine interface control,PLC control
Production type:
extruding machine
extruder:
double-screw extruder
Screw diameter (mm):
65 mm
Screw L/D Ratio:
22
Screw Material:
38CrMoAIA
Product Certification certification
CE Certified.
Valid from 2017-12-25 until 2020-12-24
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden packing, pallet packing, according to customer's requirements
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 20 >20
Est. Time(days) 15 60 90 To be negotiated
Video Description
Product Description

PVC PIPE MAKING MACHINE WITH PRICE

PVC CPVC UPVC PIPE  TUBE EXTRUSION MAKING MACHINE LINE WITH PRICE AND MACHINE VIDEO
Detailed Images

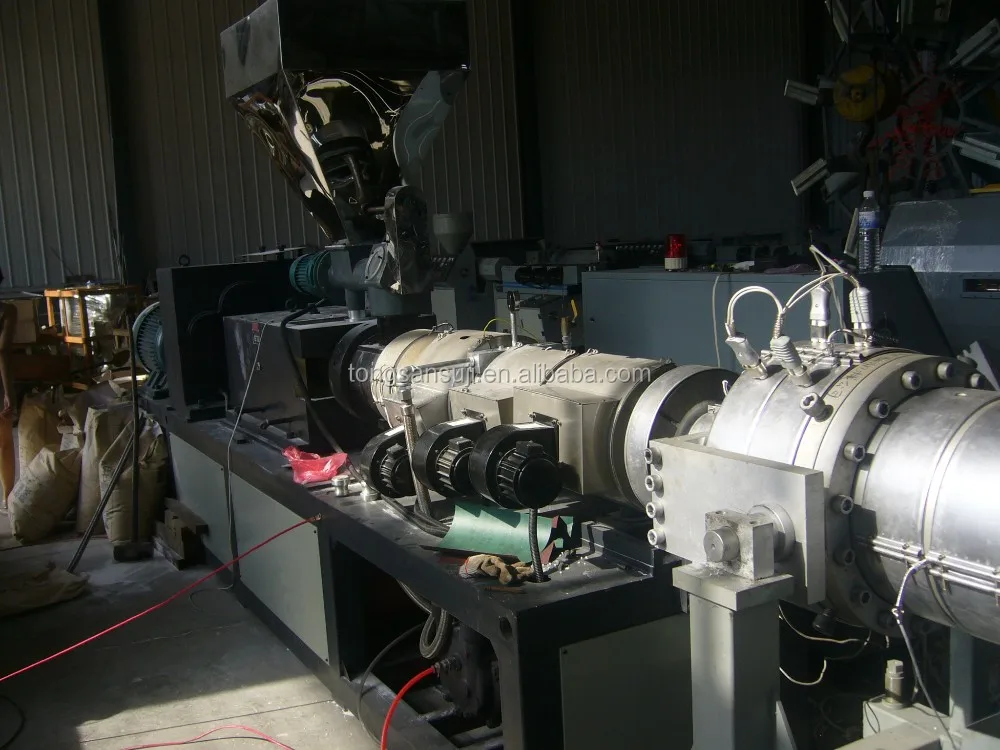

Extruder for PVC pipe extrusion line.

we equip different model of extruder for making different PVC pipe size
Extruder
Conical double screw extruder
SJSZ51/105
16-40mm
SJSZ65/132
50-160mm
SJSZ80/156
200-400mm
SJSZ92/188
400-630mm
Material
PVC powder

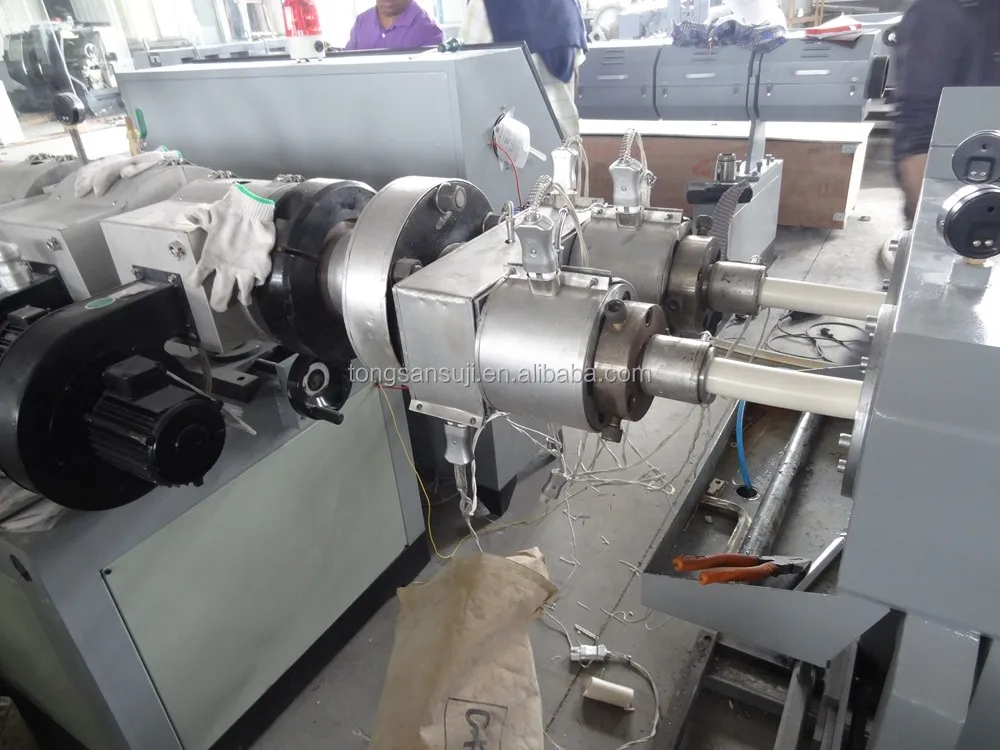

Die head and mold for PVC pipe extrusion line

Double cavity die for 16-40mm PVC pipe making machine

high quality special bimetallic mold for PVC pipe makig machine

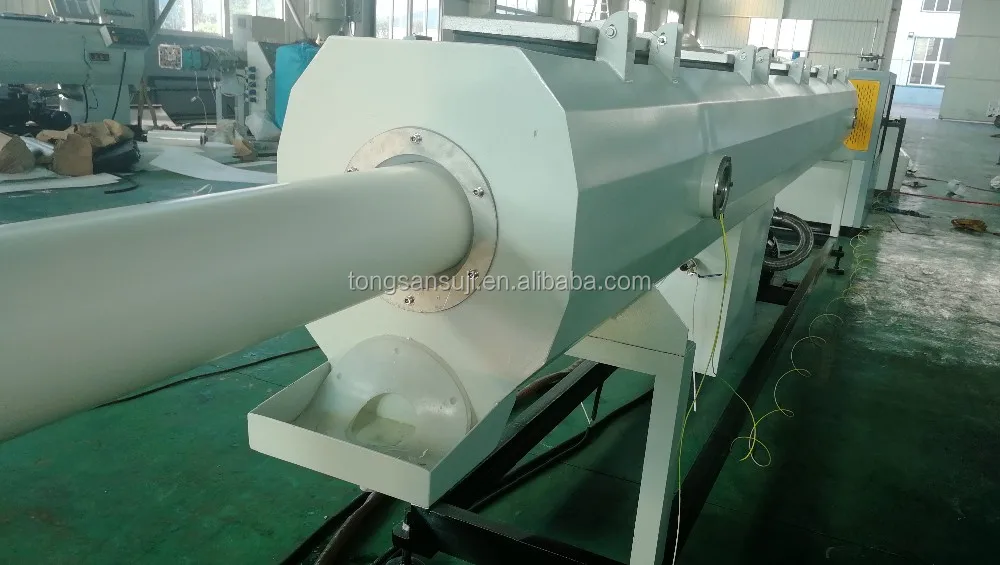

Cooling tank for PVC pipe extrusion line

6000mm length cooling tank with both water and vacuum to ensure the PVC pipe can be fully cooled fast.

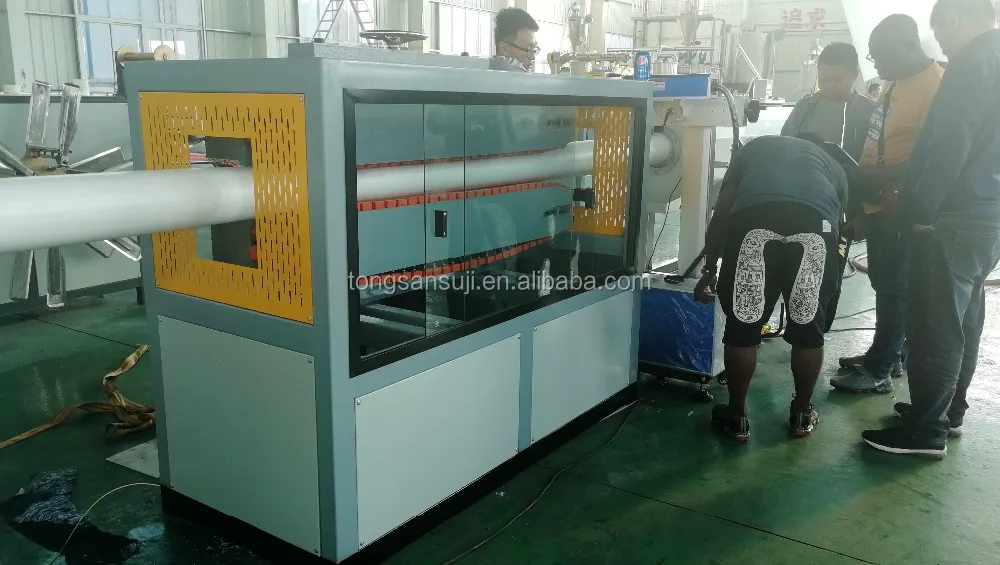

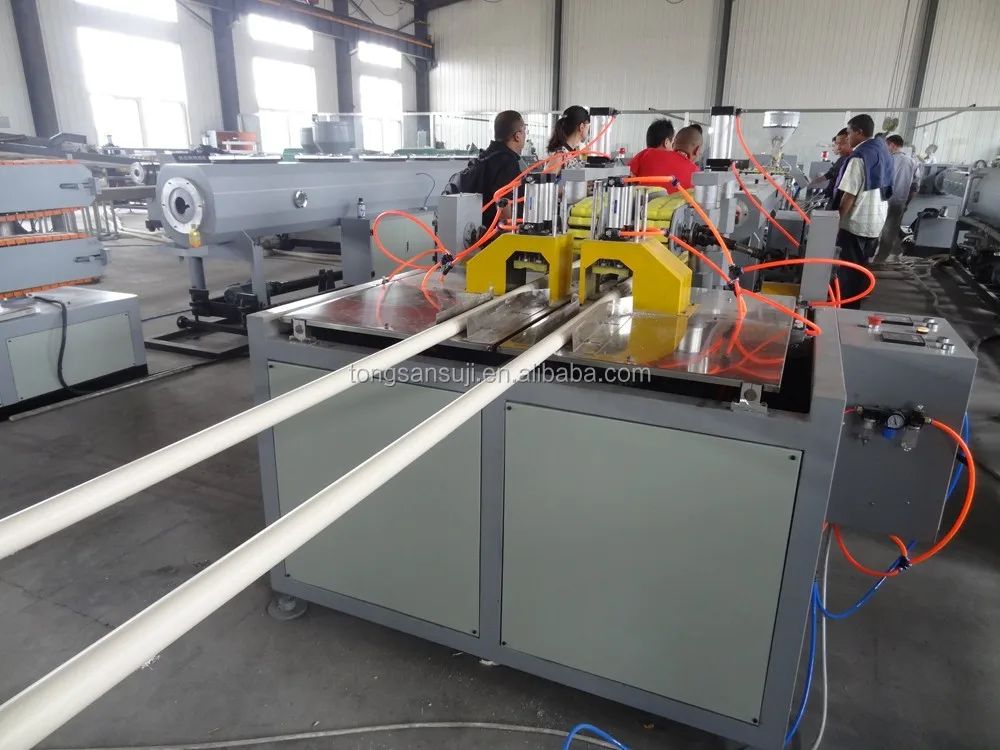

Haul off machine for PVC pipe extrusion line

we have different type of haul off machine, such as double cavity type, double caterpillar type, third caterpillar type, four caterpillar type, and six caterpillar type

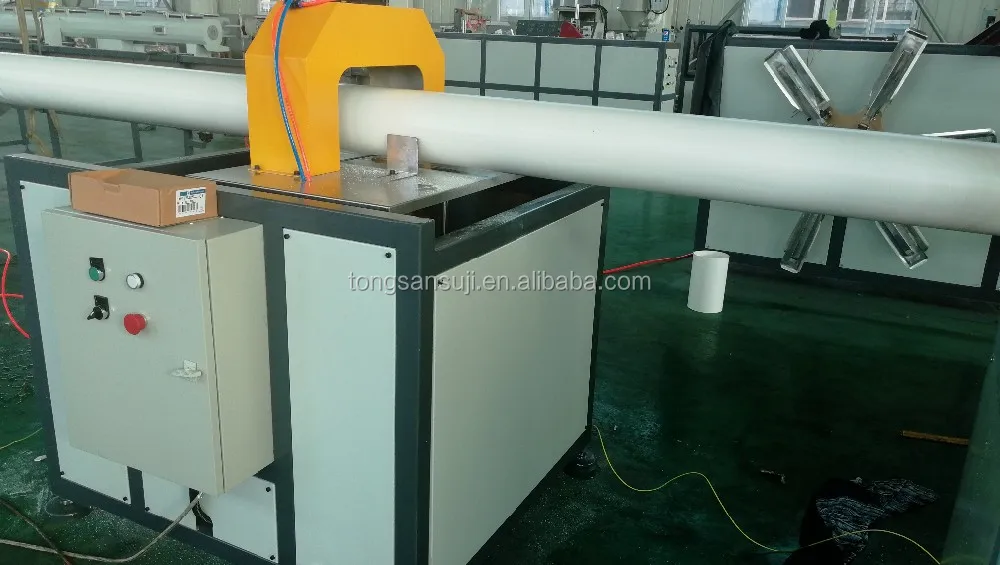

Cutting machine for PVC pipe extrusion line

according to different diameter of PVC pipe, we will equip different type of cutting machines.
the cutting machine can cut the pipe automatically according to fixed required length.

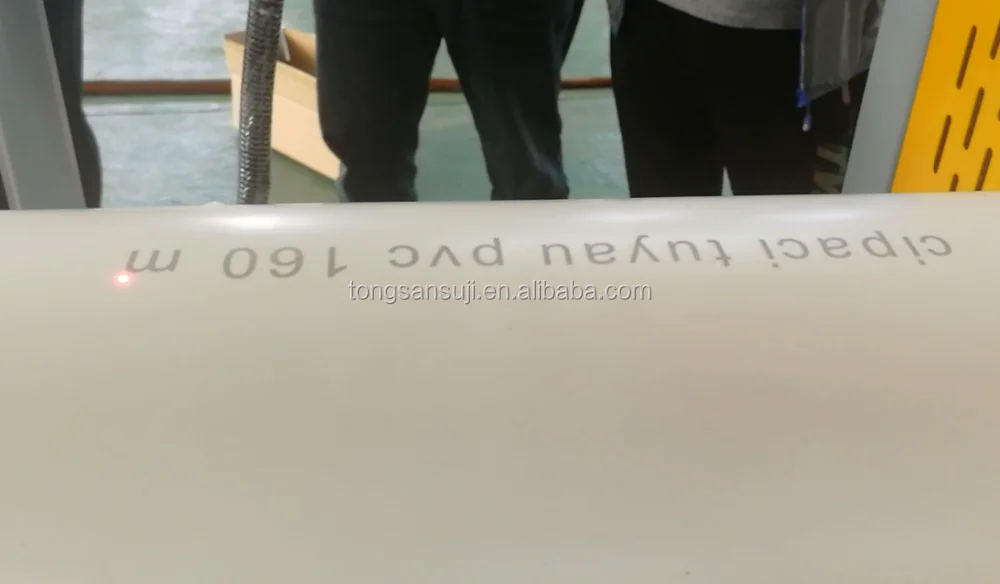

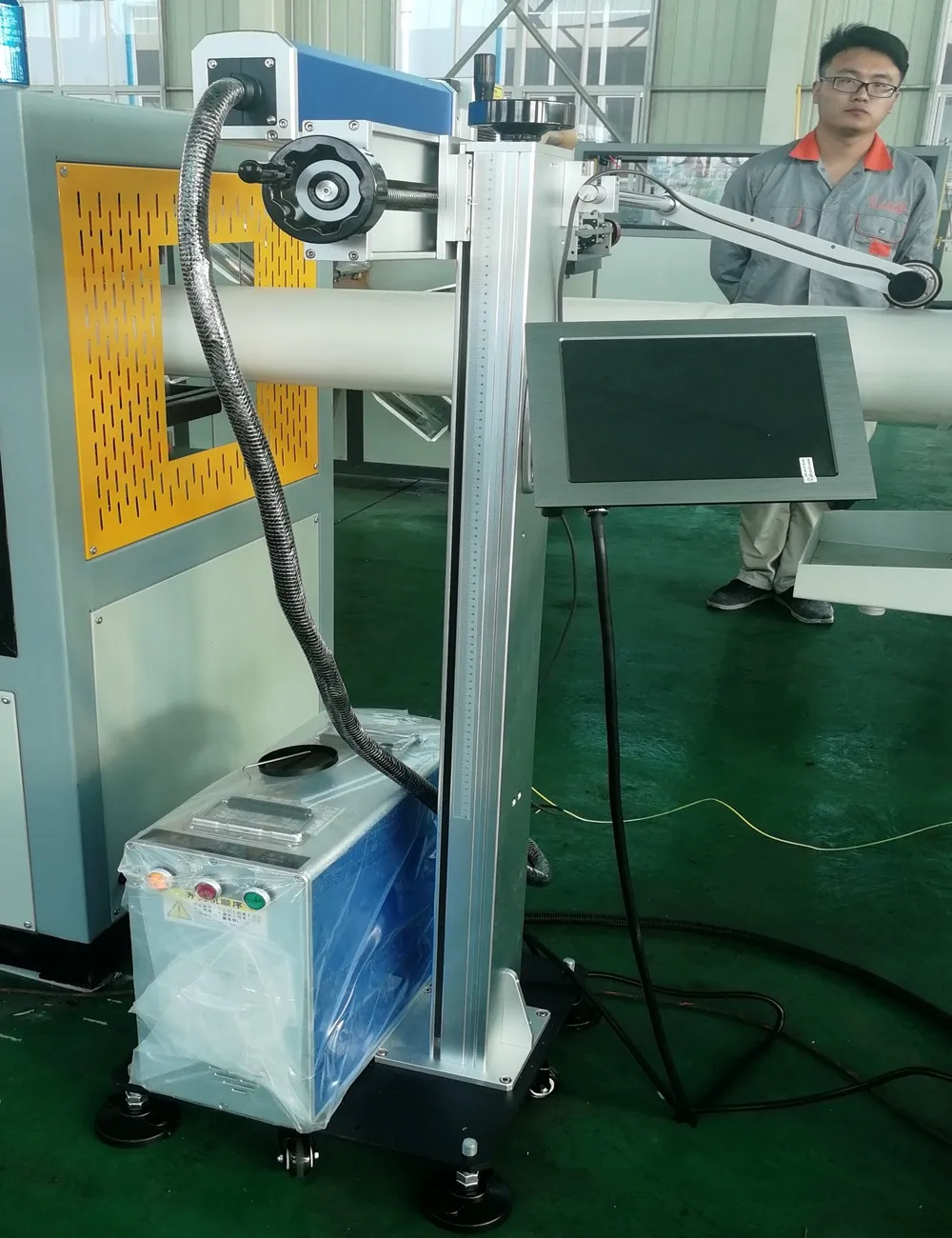

Online printing machine for PVC pipe extruison line

the laser printer machine can be used for printing words on the PVC pipe, such as pipe diameter, company name
Our service

TURNKEY PROJECT SERVICE:

1, we will provide all the machines for the complete production according to customer's requirements.
2, we will provide complete service for factory layout and other informations to help customer to build the factory.
3, we can also provide the raw material to the customer if you need.
4, we will provide good service for machine installation and trainning, until the customers can run the machines and make stably production.
5, Except one year quality guarantee,we will provide after-sell service for all the life.
6, for long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. let us do win-win business together.

INSTALLATION AND COMMISSIONING
WE WILL SEND THE TECHNICIAN TO BUYER'S FACTORY FOR INSTALLATION AND TESTING THE WHOLE LINE, AND OUR ENGINEER WILL DO TRAINNING TO BUYER'S WORKERS UNTIL THEY CAN RUN OUR MACHINE FOR STABLY PRODUCTION

AFTER SELL SERVICE: ONE YEAR GUARNTEE, FOREVER SERVICE!
WITHIN THE GUARANTEE OF ONE YEAR, WE WILL PROVIDE EFFICIENT AND ON TIME MAINTAINS,IF ANY SPARE PARTS DAMAGED IN THE GUARANTEE TERM BECAUSE OF QUALITY PROBLEM, WE WILL PROVIDE NEW SPARE PARTS FOR FREE FOR REPLACMENT.


Company profile
Certifications
Customer Photos
FAQ
SJPGZ series plastic pipe extrusion line is specializing in manufacturing PVC pipes of different diameter and thickness. They are applied to agricultural and construction water supply and drainage, overhead or underground wire and cable. Due to the special characteristics of the CPVC plastic pipes, they are widely used in the fields of crude oil transportation, pipe lines of chemical industry which require high temperature and corrosion resistance, hot and lukewarm water supply and drainage system, directly buried pipes of high and extra high voltage electricity, protection sleeves of wires and cables, etc.

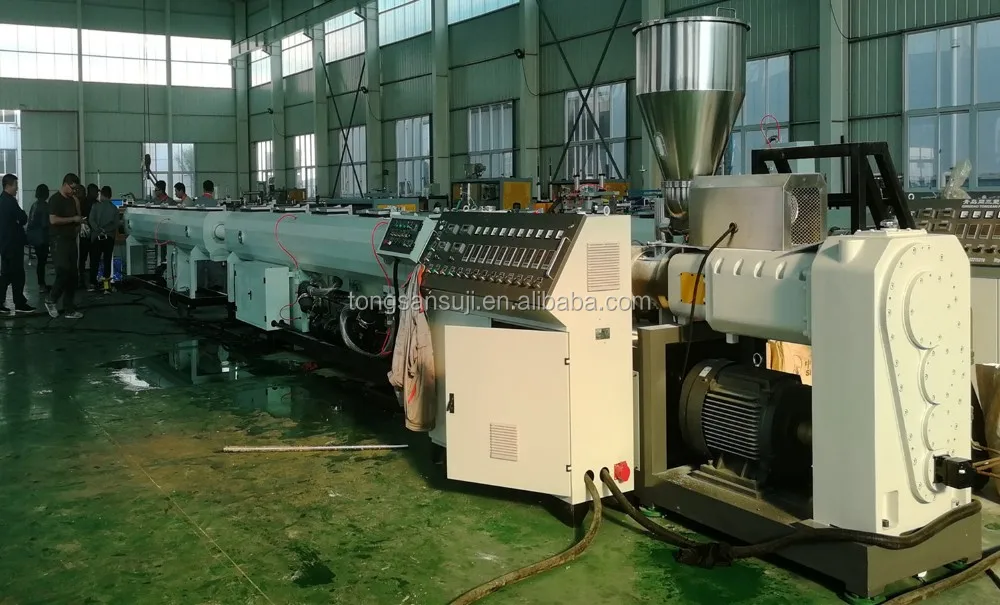

Features of PVC pipe extrusion line
This production line consists of conical (parallel) double-screw extruder, vacuum sizing platform, tractor, cutting machine,
stacker, etc. The conical (parallel) double-screw extruder and tractor adopts AC frequency control or British Euro DC speed
regulator. Vacuum pump and tractor adopts high-quality products. Tractors can be divided into up and down pedrail, three-claw, four-claw, six-claw, etc. in terms of thickness and diameter of the pipe. The cutter has two modes of cutting such as blade andplanet type. Additionally, metering device is equipped. The property of the production line is reliable and the output is high.

In accordance with different requirements of the clients, the company will equip the extrusion line with specific devices to form pipe production lines of inner-wall spiral pipes, inner hollow wall pipes and inner layer foaming pipes.
