CE certificated Factory Price Complete Turnkey Wood Plastic PVC WPC door making machine/WPC door profile extrusion line

  • 1 - 4 Sets
    $128,000.00
  • 5 - 9 Sets
    $120,000.00
  • >=10 Sets
    $110,000.00
Model Number:
SJSZ80/156
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
wpc door machine (Min. Order: 1 Sets)
PVC WPC door making machine (Min. Order: 1 Sets) Less
Samples:
$10.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Sheet, Profile, Plates
Plastic Processed:
PVC, WPC, wood-plastic
Output (kg/h):
300 - 500
Screw Design:
Double-screw
Showroom Location:
Saudi Arabia, India, Mexico, Kenya, Colombia, Romania, Bangladesh
Place of Origin:
China
Brand Name:
TONGSAN
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
25m*2m*4m
Power (kW):
110
Weight:
8-20T
Certification:
ce certificated
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
Sustainable
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Japan, Argentina, South Korea, Sri Lanka, Kazakhstan
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
PVC WPC door machine:
machine for making windows and doors
Product width:
600-1000mm
Product thickness:
30-50mm
Max.output:
350-500kg/h
Power:
AC380V±10%,50HZ
Frequency inverter:
ABB
Actual energy consumption power:
210kw
Consumed air:
0.4cubic meter/min
Extruder:
Conical double screw extruder for wpc door machine
Screw Material:
38CrMoAIA
Screw diameter (mm):
80 mm
Screw L/D Ratio:
22
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
WPC pvc door making machine: wooden crates,steel pallet or according to clients' specific requirement,film packing
Port
Qingdao port
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 To be negotiated
Video Description
Product Description

PVC WPC DOOR MAKING MACHINE, WPC DOOR PROFILE EXTRUSION LINE

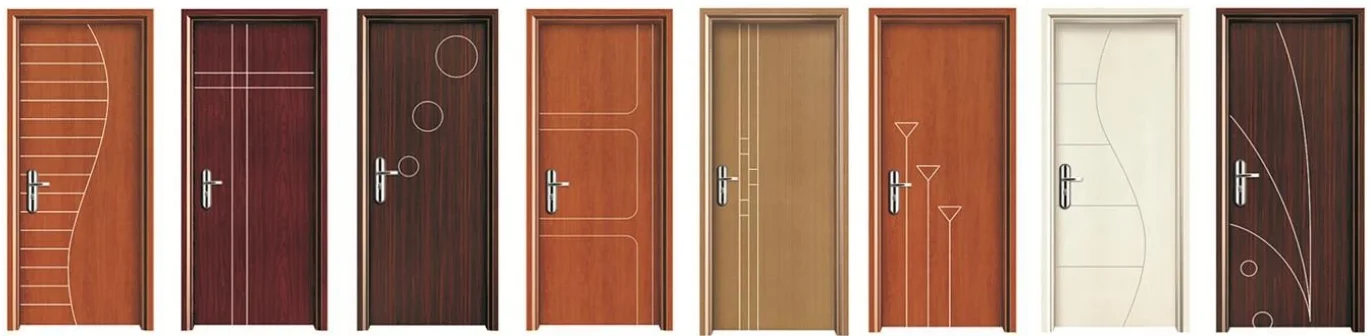

This WPC door manufacturing machine is used for making WPC door panels from PVC and wood powder, the WPC hollow panel can be used either inner and outer door panel, partition, windowsill etc.it centralizes the characters of both plastic and wood, and also overcomes the shortage of wood, such as water –proof, corrosion resisting, anti-moth, anti-aging, static-free, and flame retarded.

Detailed Images

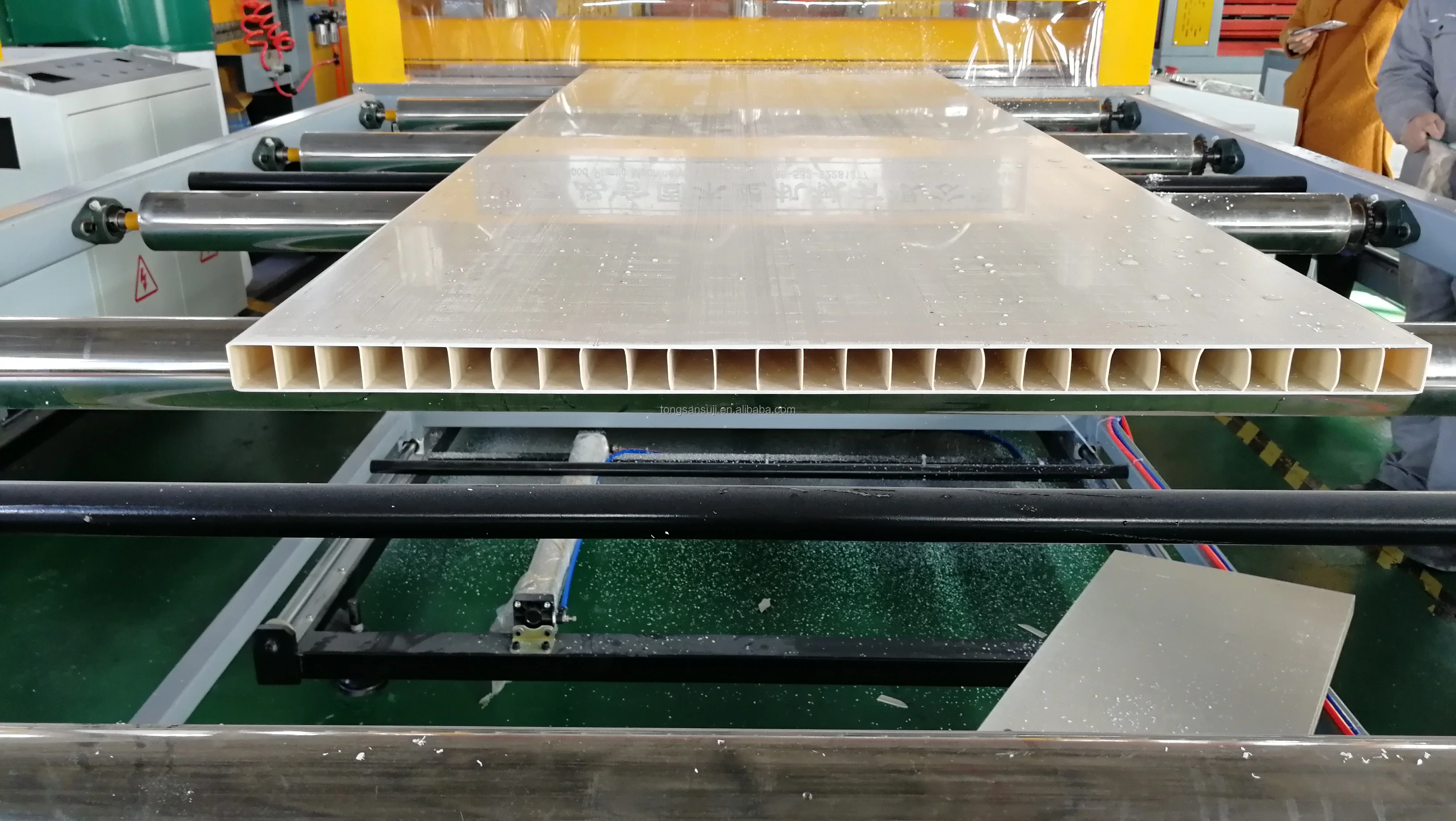

PVC Door panel extrusion line

This machine can be used for making PVC door panel, the raw material is PVC and CaCo3 and chemical additives

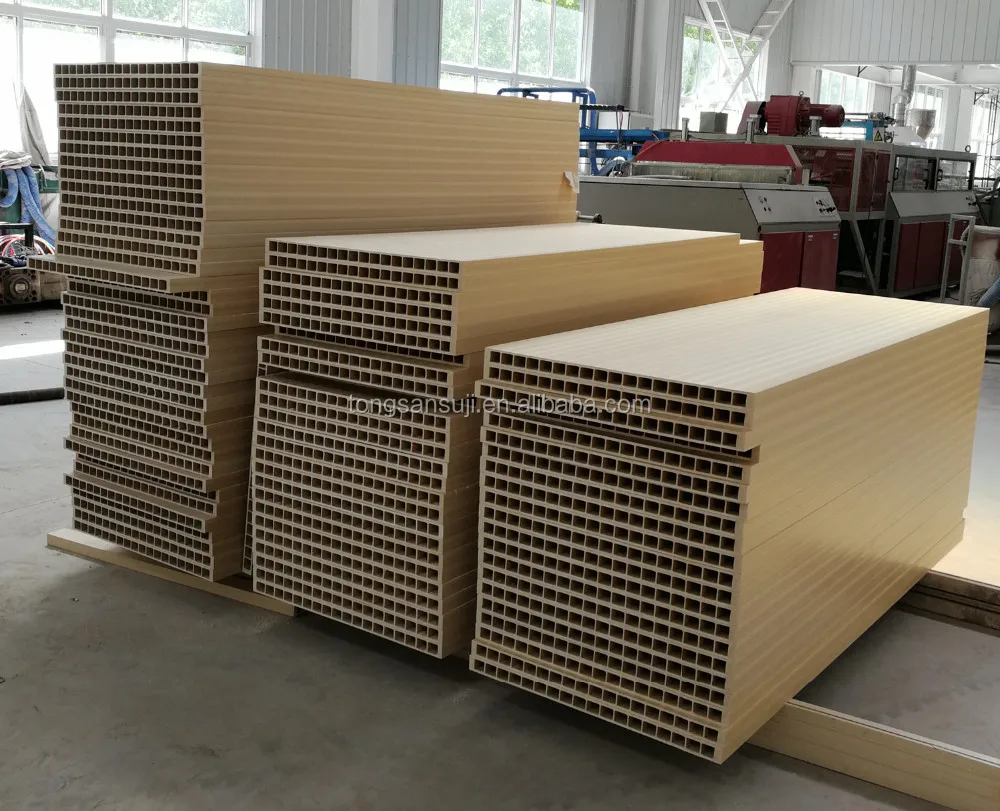

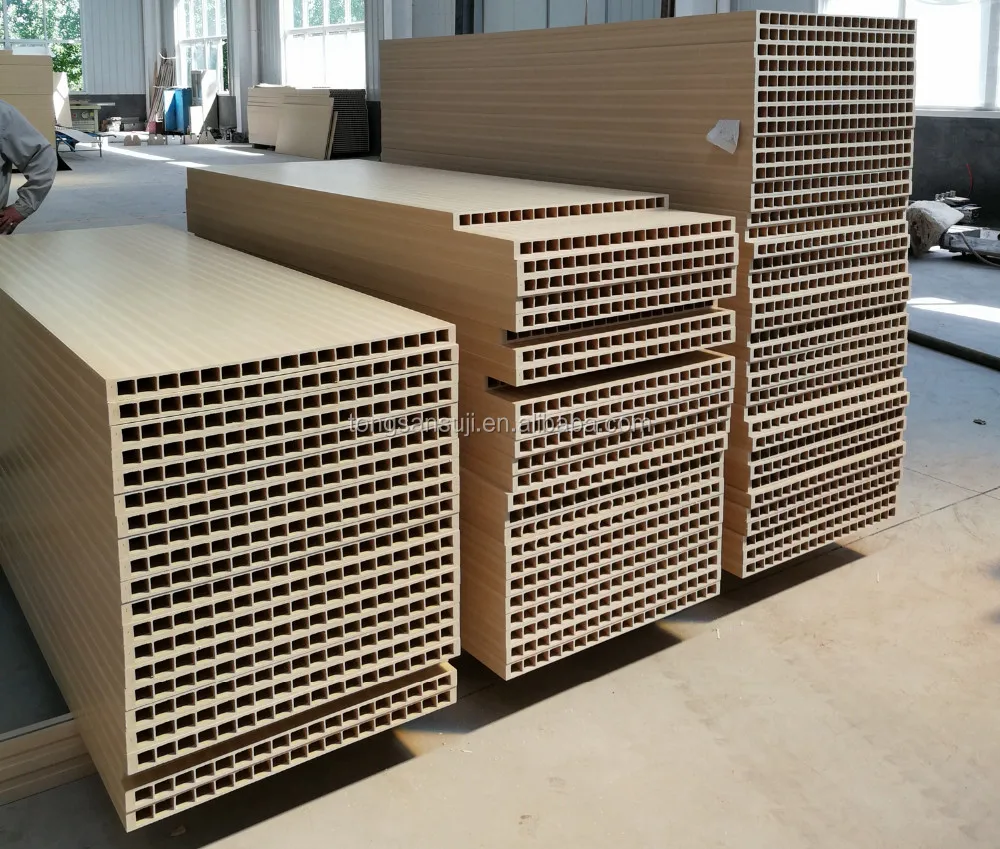

WPC door panel extrusion line

This machine also can be used for making WPC door panel, the material is PVC and wood powder and chemical additives.
This WPC PVC door production line is applicable to the continuous extruding of WPC/PVC door panel, clapboard 'elbow board. Proper double screw extruder, specially used for extruding wood plastic products, should be chosen in accordance with the panel section, application, and product specific gravity. Also the corresponding auxiliary machines such as vacuum calibrating platform, hauling off machine, cutting off machine, material reversing platform,etc. are equipped. Products of diversified specification can be produced with different dies.

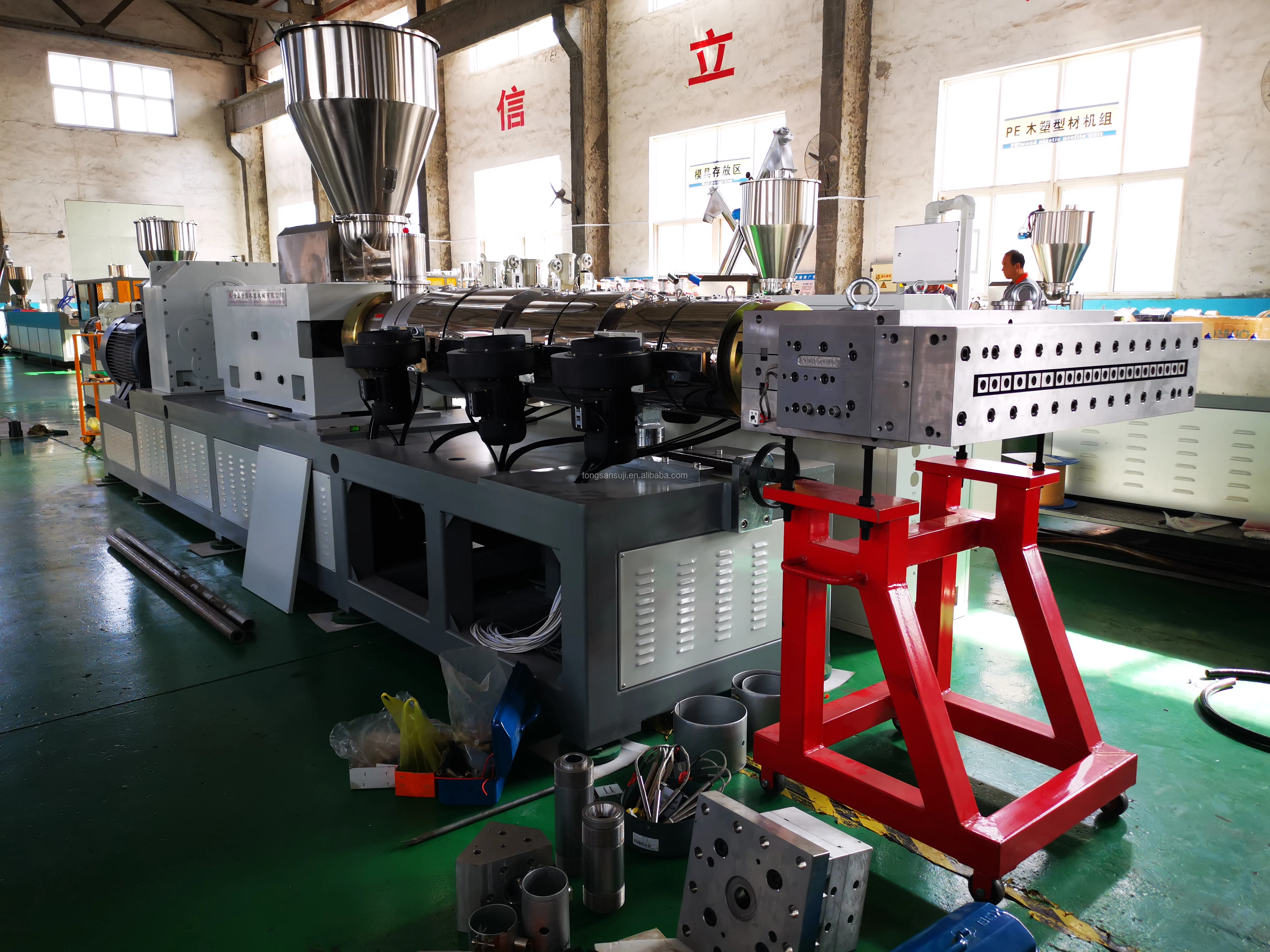

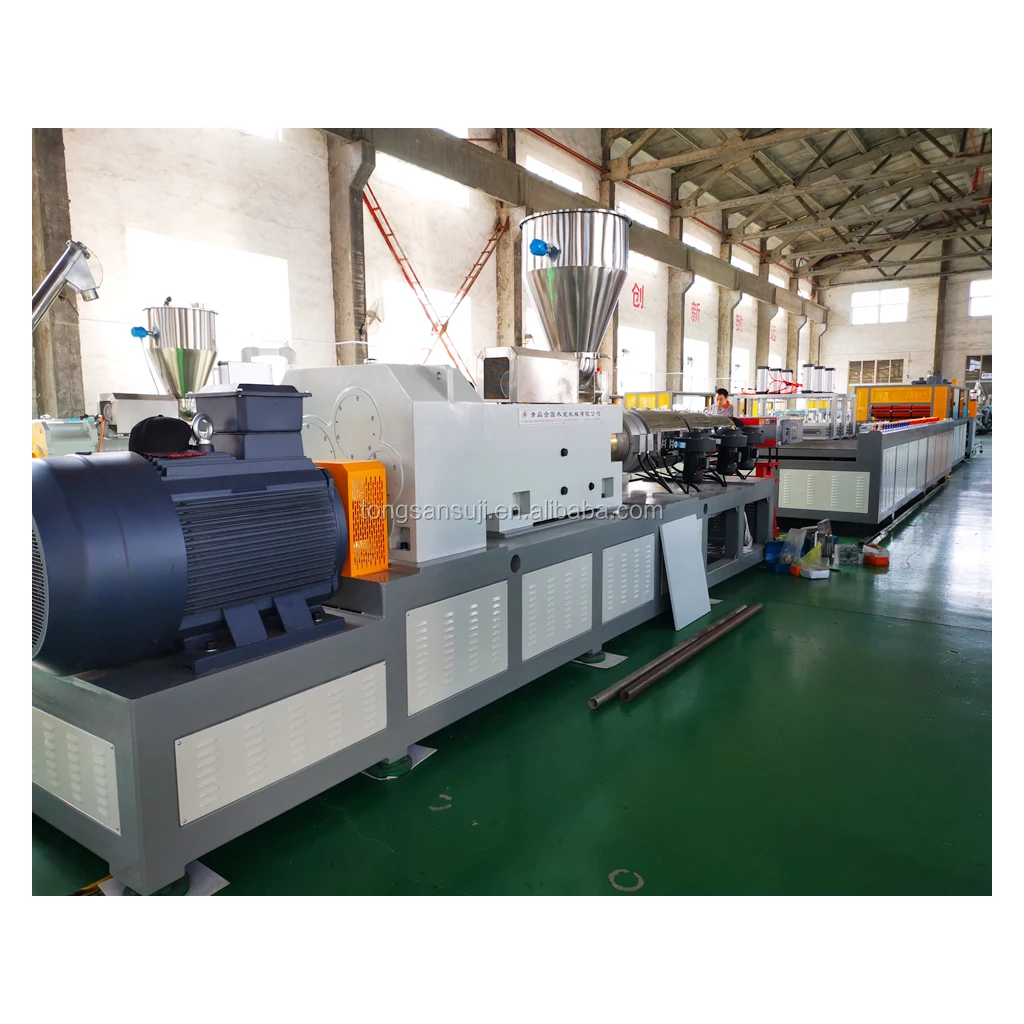

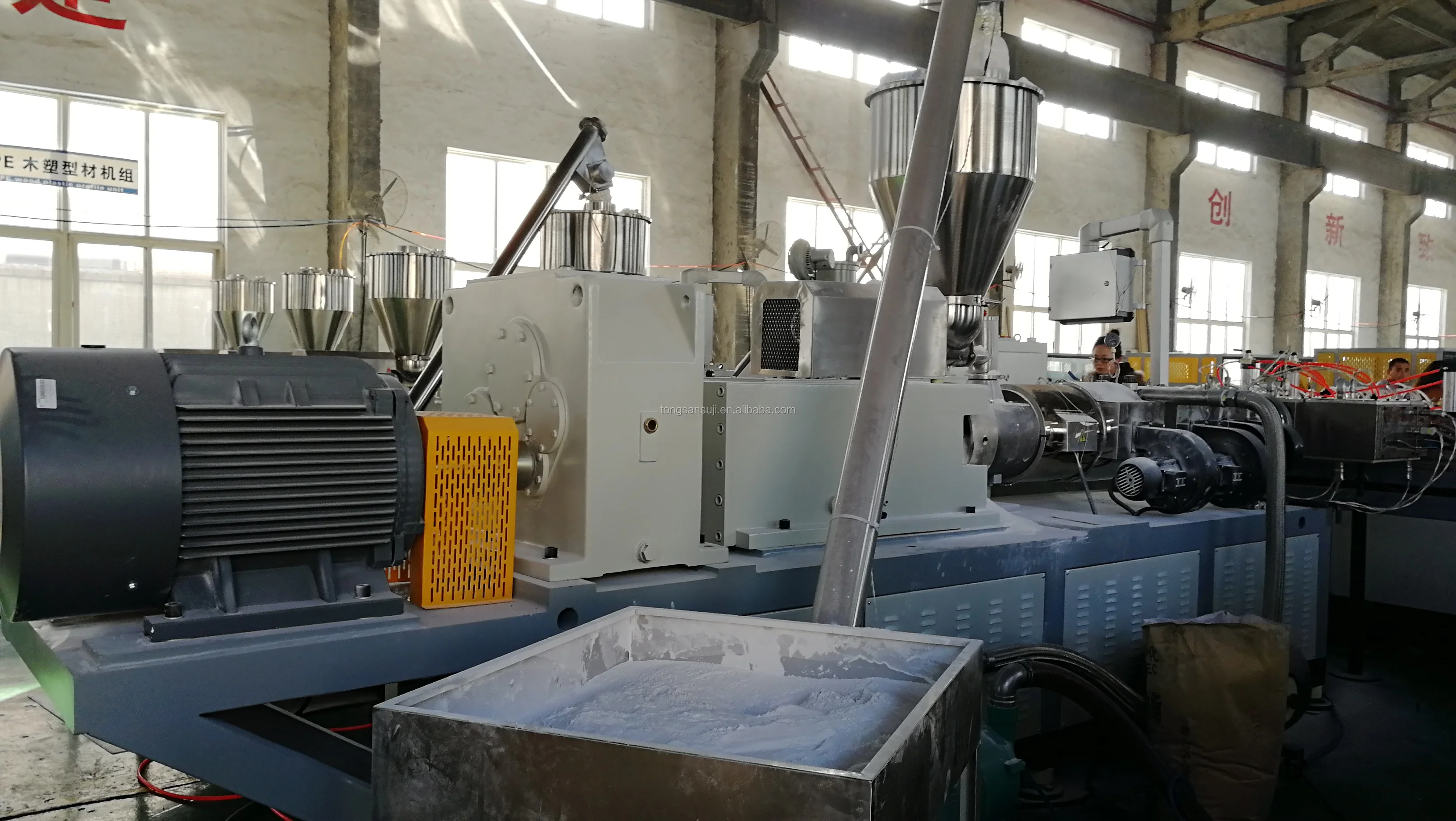

SJSZ92/188 Conical double screw extruder

WPC hollow door panel die head

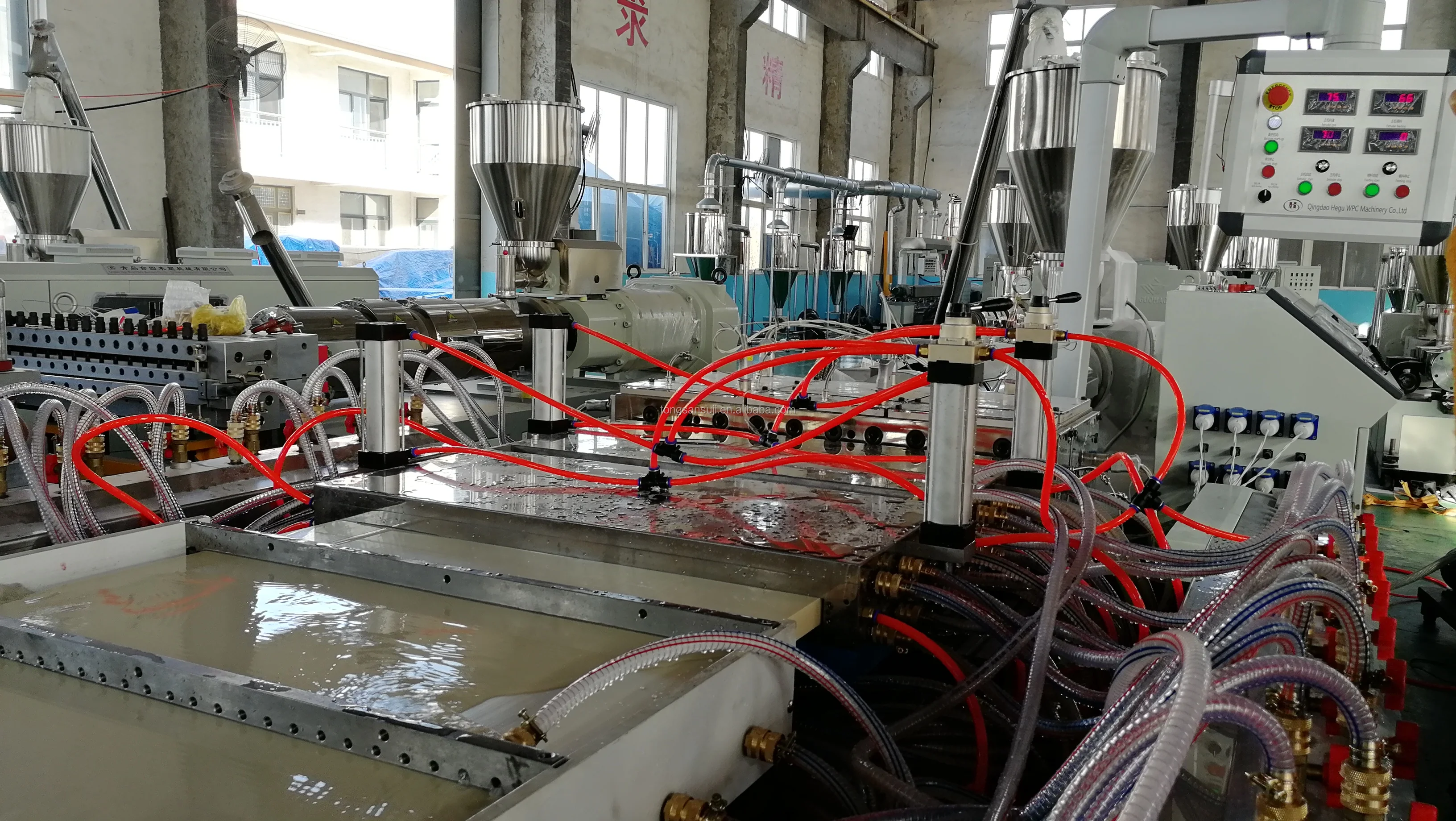

WPC hollow door panel calibrator

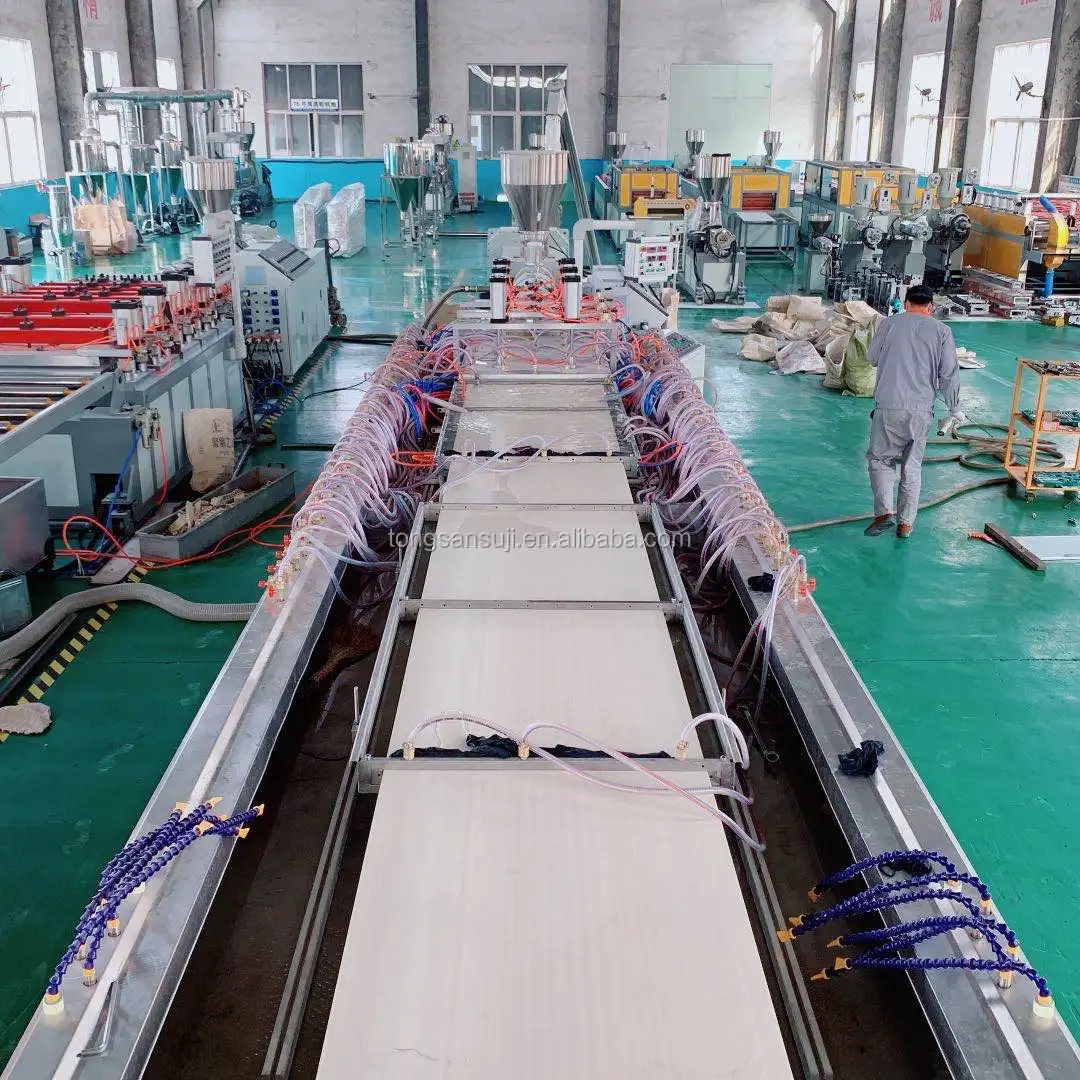

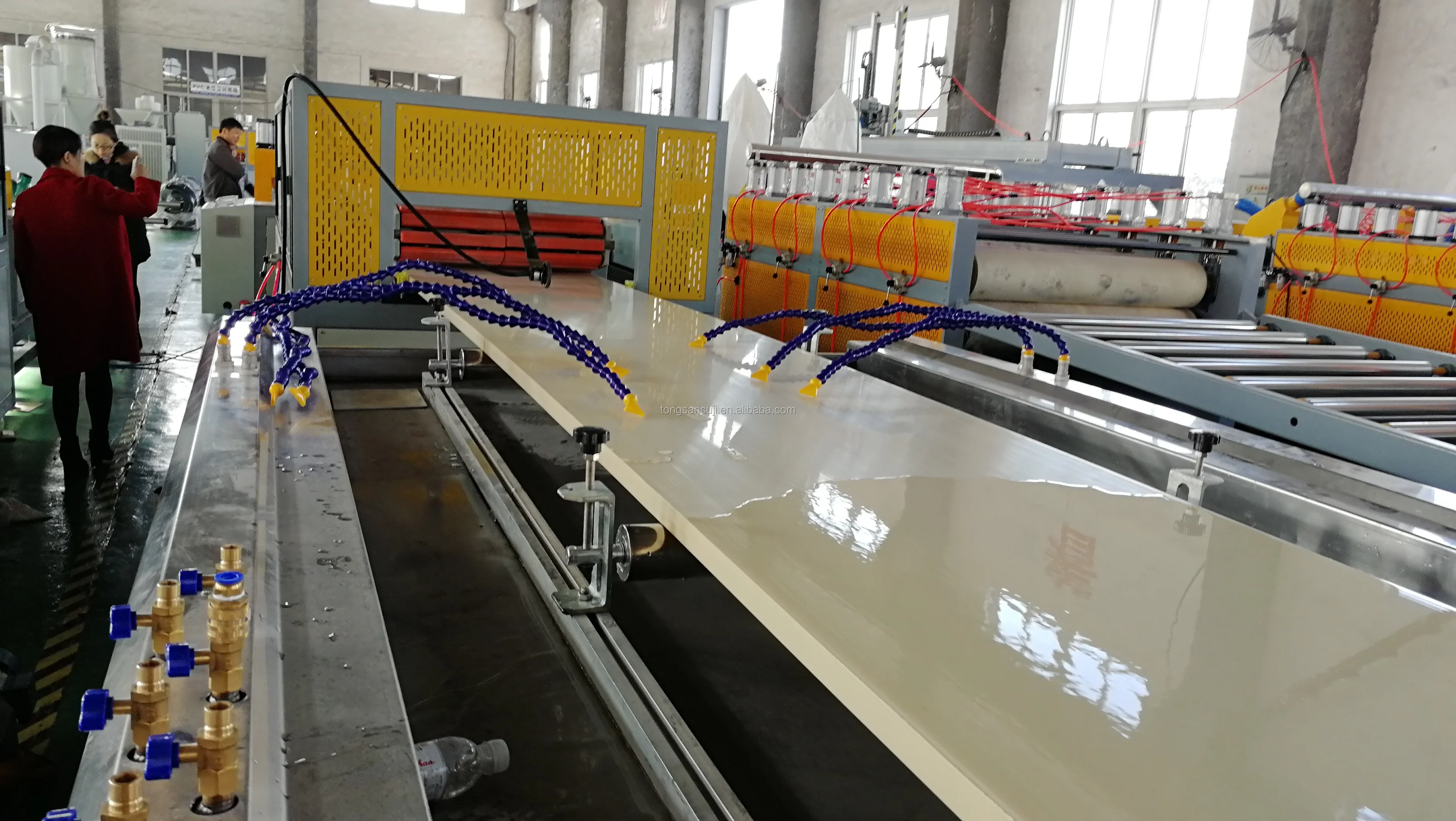

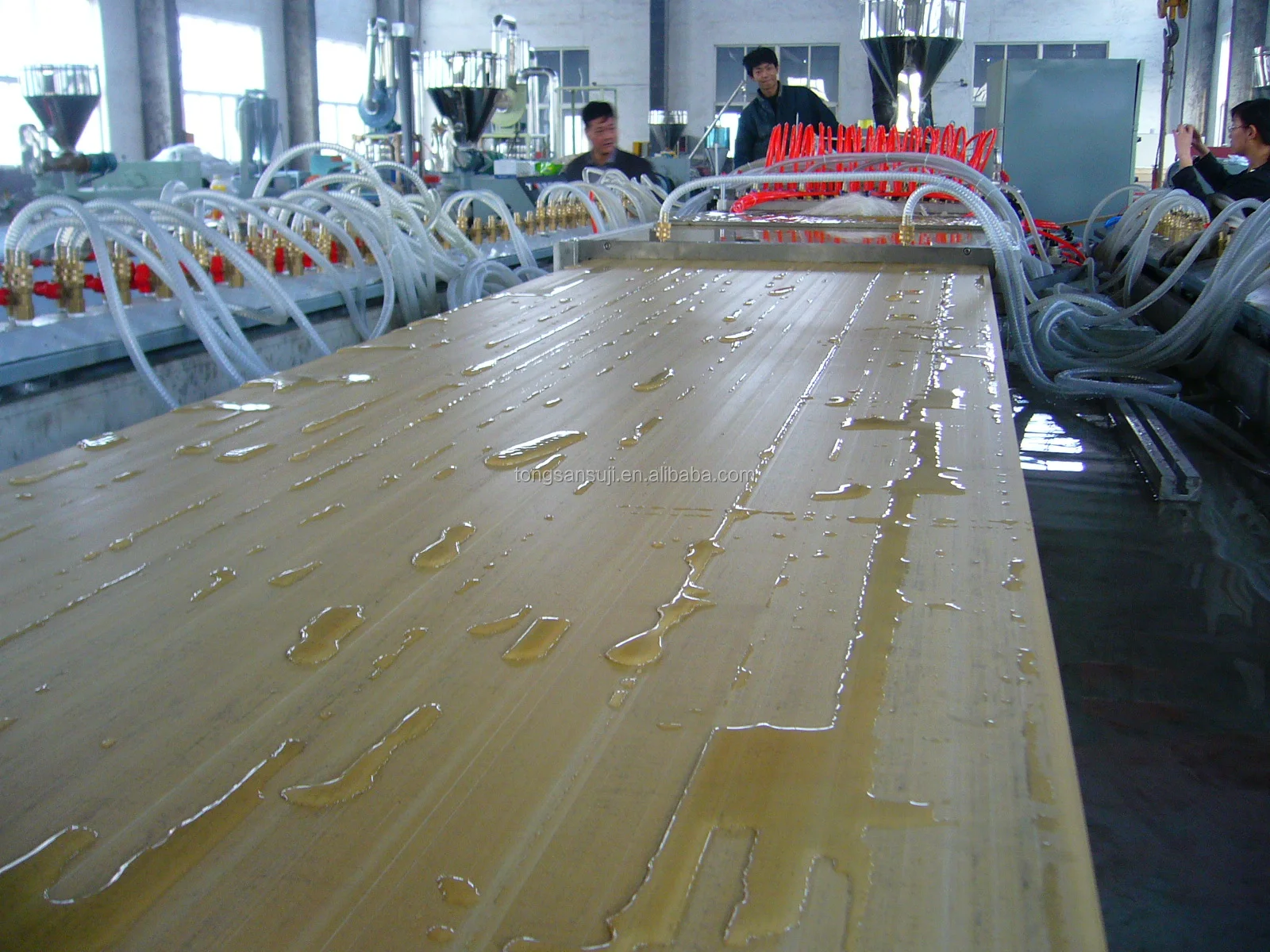

6m Calibrating machine

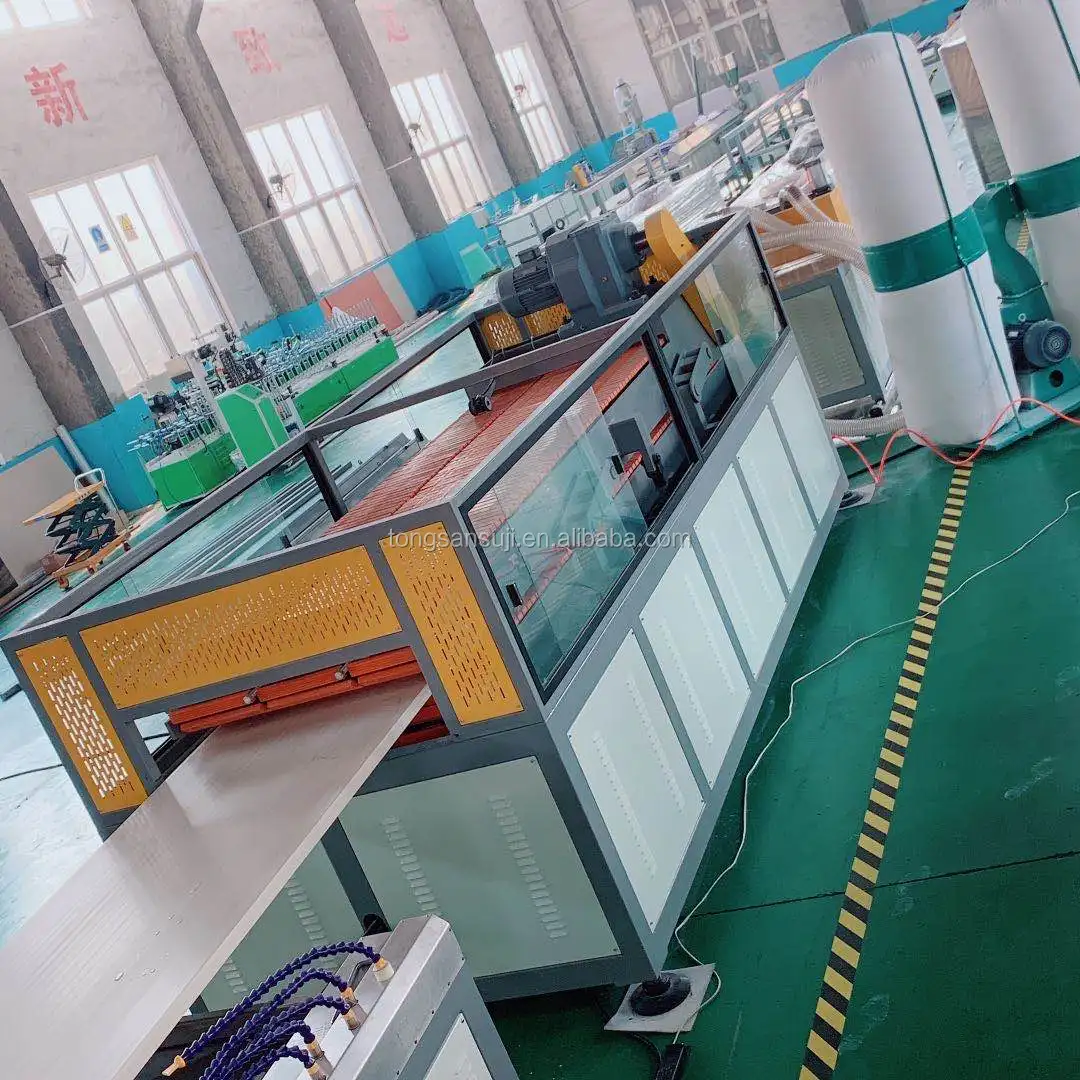

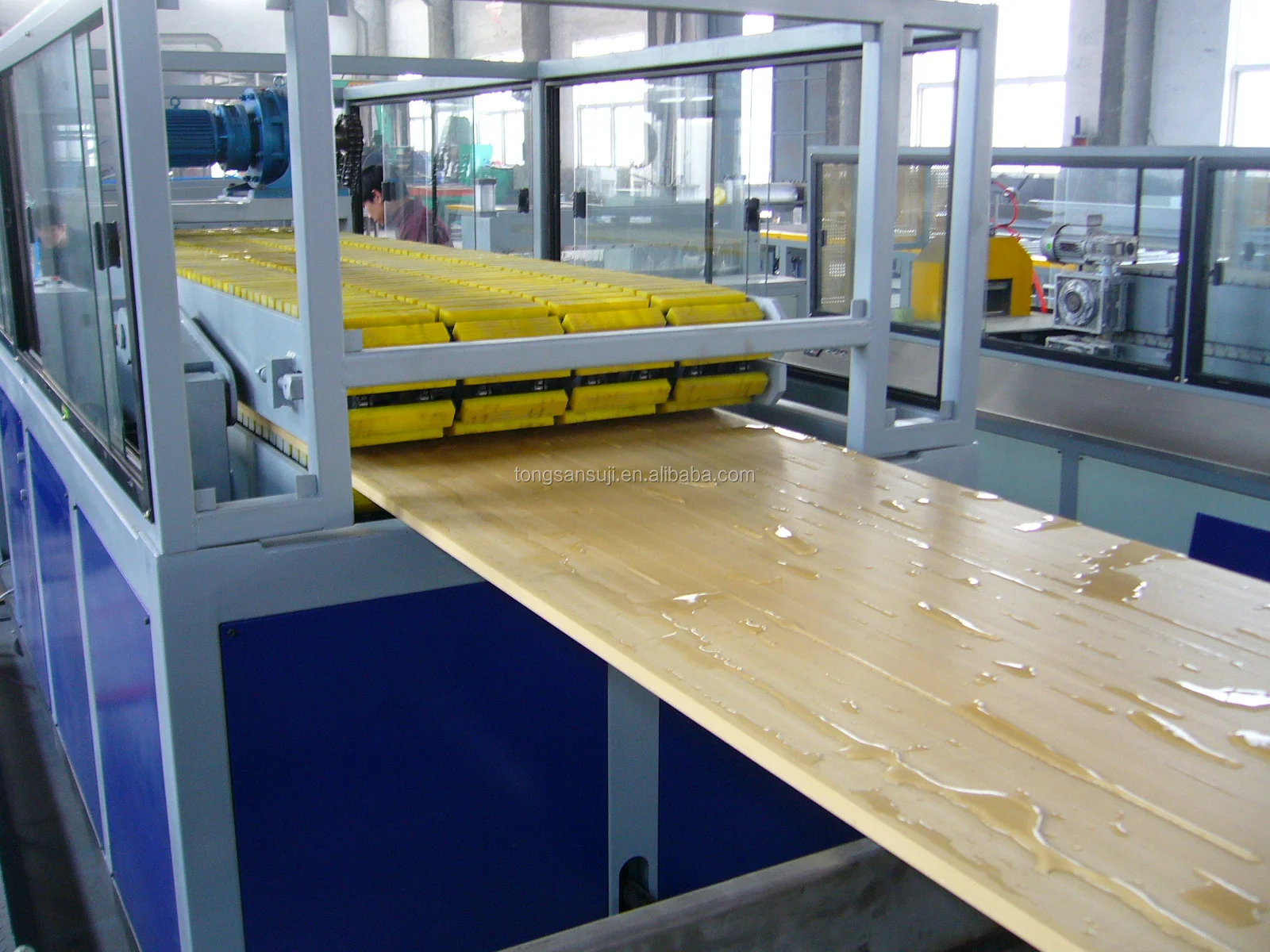

Double caterpillar hual off machine

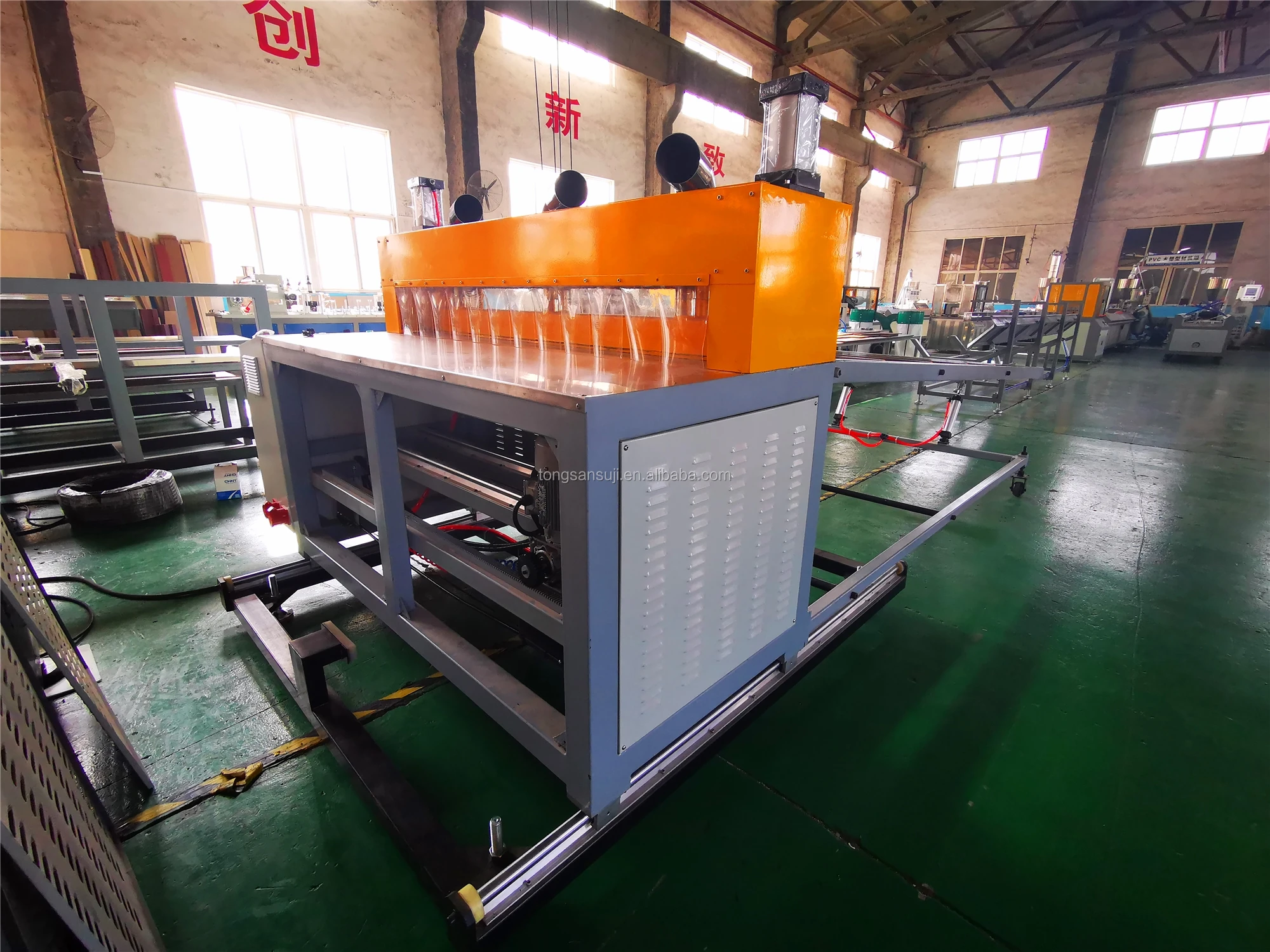

Automatic cutting machine

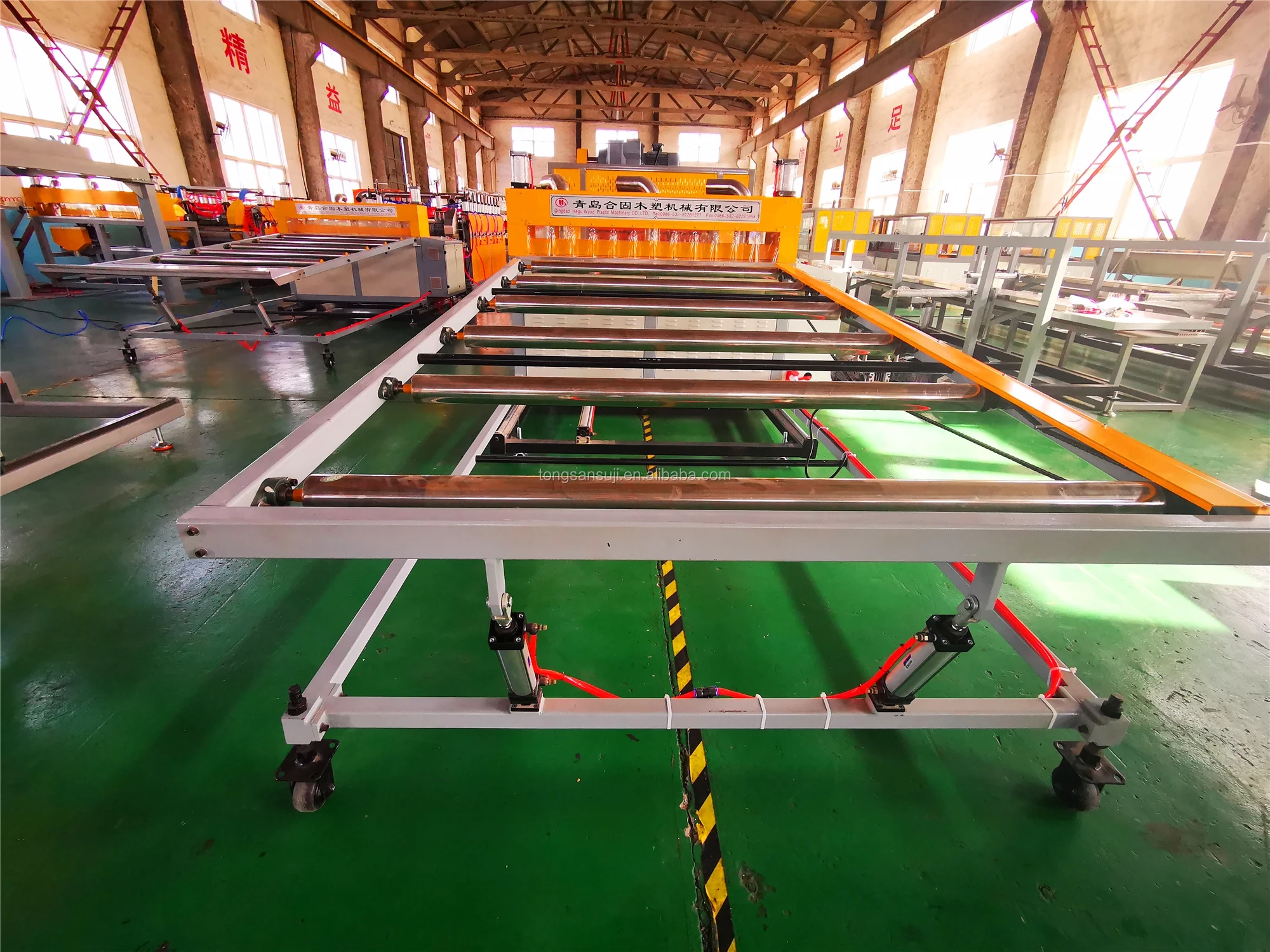

Product stacker

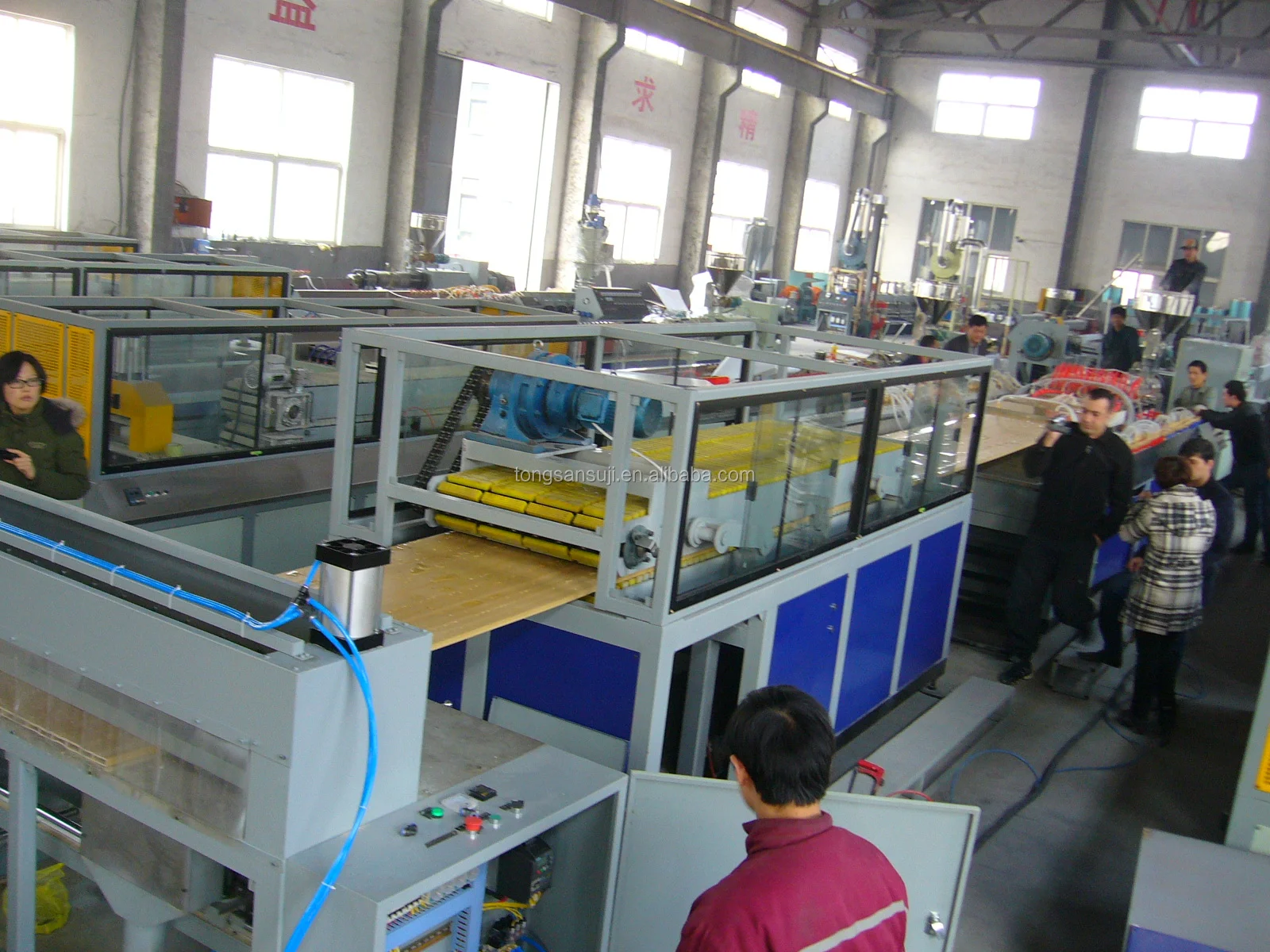

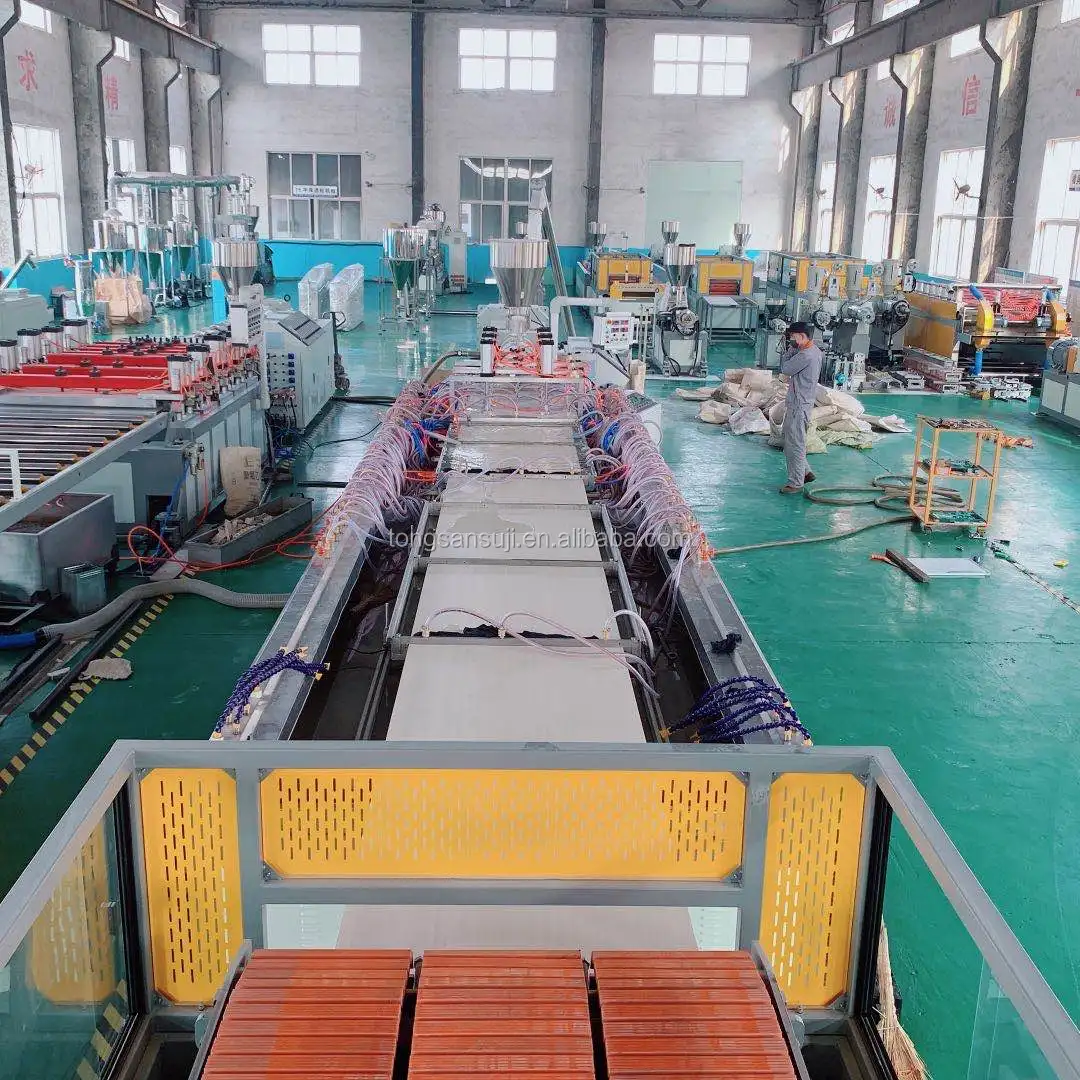

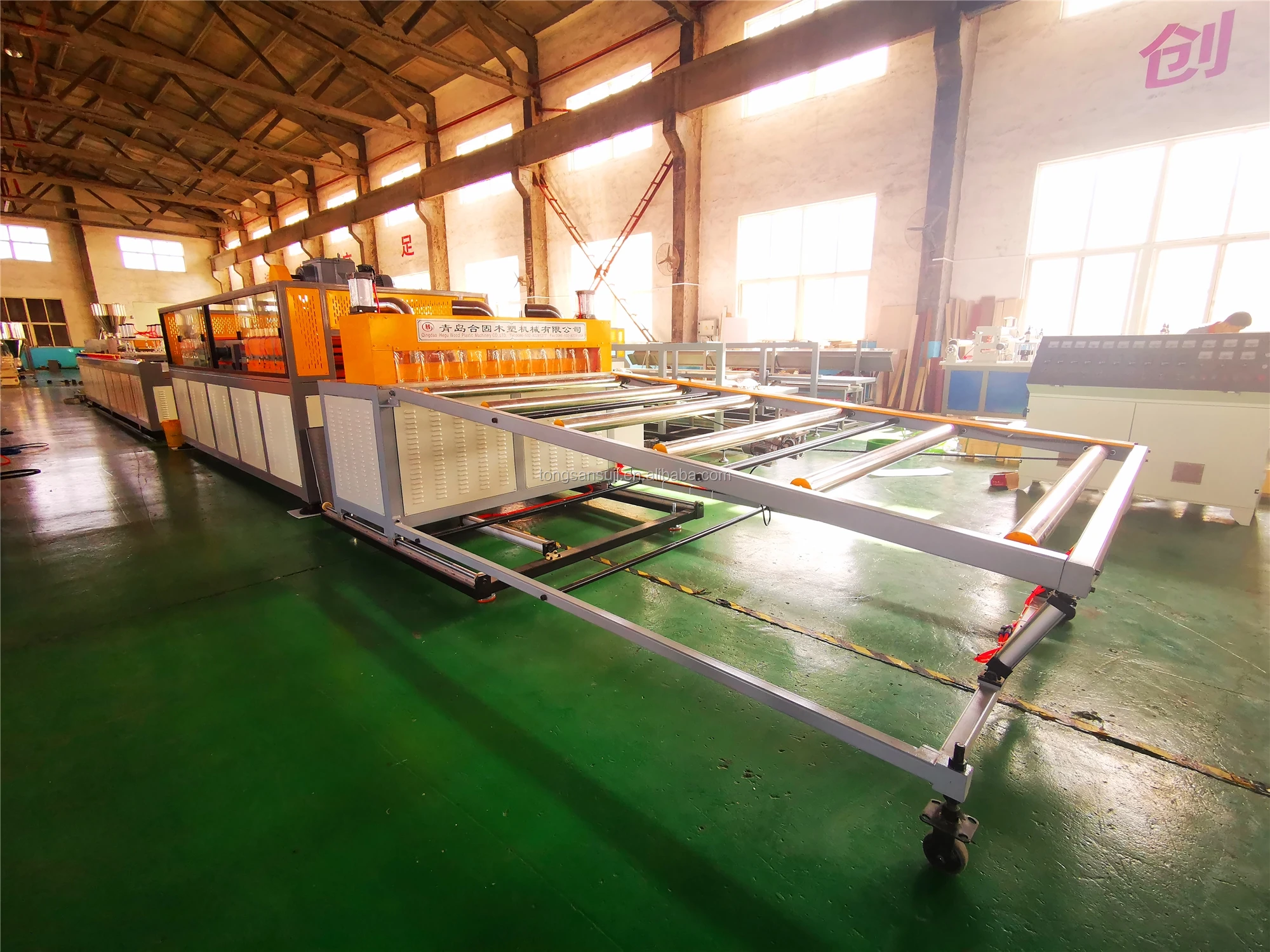

PVC WPC door extrusion line

WPC door plant

the WPC door manufacturing process machine including the machines as below:

Item
Machine name
Notes
1
wood powder making machine
80-100 mesh
2
WPC mixing machine
two sets
3
WPC door frame extrusion line
with customized molds
4
WPC door panel extrusion line
with customized molds
5
WPC door frame lamination machine
Better use PUR lamination
6
WPC door panel lamination machine
Better use PUR lamination
7
Vacuum lamination machine
for laminate unflate surface
8
Film cutting machine
cut lamination film
9
WPC door sanding machine
better to use water sanding
10
WPC door engraving machine
2-4 axies
11
Length and angle cutting machine
precision cutting
12
WPC door edge milling machine
vertical milling
13
Lock and hingle holes drilling machine
double head drilling
14
Protection film coating machine
double face coating
