CE certificated wpc terrace board making machine

FOB Reference Price:Get Latest Price
$30,000.00 - $60,000.00 / Set | 1 Set/Sets wood plastic WPC decking machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Model Number:
SJSZ-65A
Application:
Profile
Plastic Processed:
PE
Screw Design:
Double-screw
Place of Origin:
Shandong, China
Brand Name:
TONGSAN
Voltage:
380V/3phase/50hz customized
Dimension(L*W*H):
20m*2m*3m
Weight:
15000kgs
Certification:
CE certificated
Wood plastic profiles machinery:
wpc terrace board making machine
Material:
PE/PP/PVC,wood/rice husk/straw
sanding:
wpc sanding machine
embossing:
wpc embossing machine
brushing:
wpc brushing machine
door panel:
wpc door production line
profile:
wpc profile machine
board:
wpc board machine
extrusion:
wpc extrusion line
decking:
wpc decking machine
After-sales Service Provided:
Engineers available to service machinery overseas
Power:
85kw
Automatic Grade:
automatic
Supply Ability
Supply Ability:
5 Set/Sets per Month wood plastic WPC decking machine
Packaging & Delivery
Packaging Details
wpc machine Packaging Details:Pallet,the material of pallet is stainless steel pipe the surface of each part of machinery covered film together with one set of packing list in English wooden crate,under fumigation treatment,together with one set of packing list in English partial shipment allowed container shipment allowed before delivery.We will send the dimension&weight of machinery to customer to help them choose suitable container.
Port
Qingdao port of China
Lead Time :
60working days
Product Description

wpc terrace board making machine

Wood plastic machine

We have the complete wood Plastic WPC decking machine in our factory stock now. if you would like to visit our factory for checking the machines, we could arrange for you to run the machine to see production process.

Video for WPC terrace board making machines:
WPC granulating machine: http://cloud.video.taobao.com/play/u/2726714571/p/1/e/6/t/1/46468595.mp4
WPC terrace board making machine, WPC decking machine: http://cloud.video.taobao.com/play/u/2726714571/p/1/e/6/t/1/46463961.mp4
WPC embossing machine: http://cloud.video.taobao.com/play/u/2726714571/p/1/e/6/t/1/46507928.mp4

Double WPC keel extrusion line: http://cloud.video.taobao.com/play/u/2726714571/p/1/e/6/t/1/46465513.mp4

Wood plastic WPC decking machine

Wood Plastic decking machine

The wood-plastic is a new kind of synthetic material which uses PVC,PP,PE resin or recycled plastic and plant fibre ( wood powder,chaff,straw etc.) as raw material and through the process of mixing,exrusion,calibrating,drawing off and cutting. This kind of wood-plastic materials are not only very similar with natural wood in appearance and feel,but also with the same characteristics as wood of excisable, planeable,sawable, unmatched grip,low bibulous rate, good moisture resistance, mothproof,mildew resistance,good resistance to acid and alkali,anti-corrosion, and it has the feature of fire resistance.The products are non-toxic,non-polluting,environment-friendly and save-energied, without formaldehyde, benzene and ammonia and other harmful substances.The wood-plastic products are widely used in outdoor floor,hydrophilic construction,balcony,landscape architecture,chairs and benches, fences, indoor doors and windows, furnitures, etc.


Description of wpc products:
1, New product: The wood-plastic is a new kind of synthetic material through the process of mixing,exruding,calibrating,hualing off and cutting,
2, Material: uses PVC,PP,PE resin or recycled plastic and plant fibre ( wood powder,chaff,straw etc.) as raw material.
3, Advantages: This kind of wood-plastic are not only very similar with natural wood in appearance and feel, but also have the same characteristics as wood of excisable, planeable,sawable, unmatched grip,low bibulous rate, good moisture resistance, mothproof,mildew resistance,good resistance to acid and alkali,anti-corrosion, and it has the feature of fire resistance. The products are non-toxic,non-polluting,environment-friendly and save-energied, without formaldehyde, benzene and ammonia and other harmful substances.
4, Application: The wood-plastic products are widely used in outdoor floor, close to water construction,balcony,landscape architecture,chairs and benches, fences, interior doors and windows, furniture, etc.

Production flow for wood plastic WPC decking machine

1, Preparing the material:

wood powder material: 80-100mesh wood powder, it can be made from wood sawdust, rice husk, rice straw, wheat husk and straw, cotton staw and agriculture wastage. machine need is wood crushing and pulverizer machine

plastic material: recycled PP/PE plastic after washing and crushing into flakes. machine need is plastic washing and crushing line.

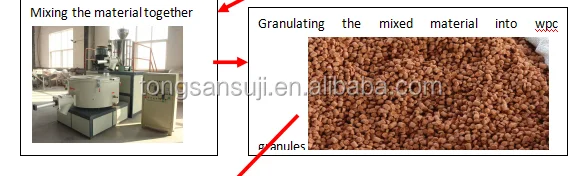

2, WPC material mixing and granulating

Mixing: put all the material into the mixing machine, such as PP/PE recycled flakes, wood powder, chemical additives

Granulating: it is important to use a high quality granulating machine to make WPC granules, moisture exhuasting system is necessary for granulating process.

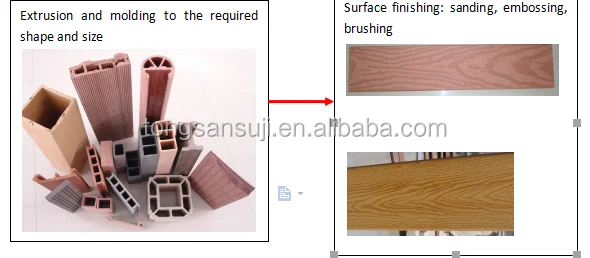

3, WPC products extrusion-molding-surface treatment

Extrusion and molding:Our conical double screw extruder is specially designed for high quality WPC products extrusion, it can make  WPC material fully mixed and melted and uniform,equip with good deisgned mold and calibration, online cutting device, our Wood plastic WPC profile machine can make good WPC products, such as decking prodfiles, garden profiles, chair profiles, pergoza profiles, railing system profiles.

Surface treatment: sanding, brushing and embossing process can make the WPC products with nature wooden grain which is good accepted by customers.

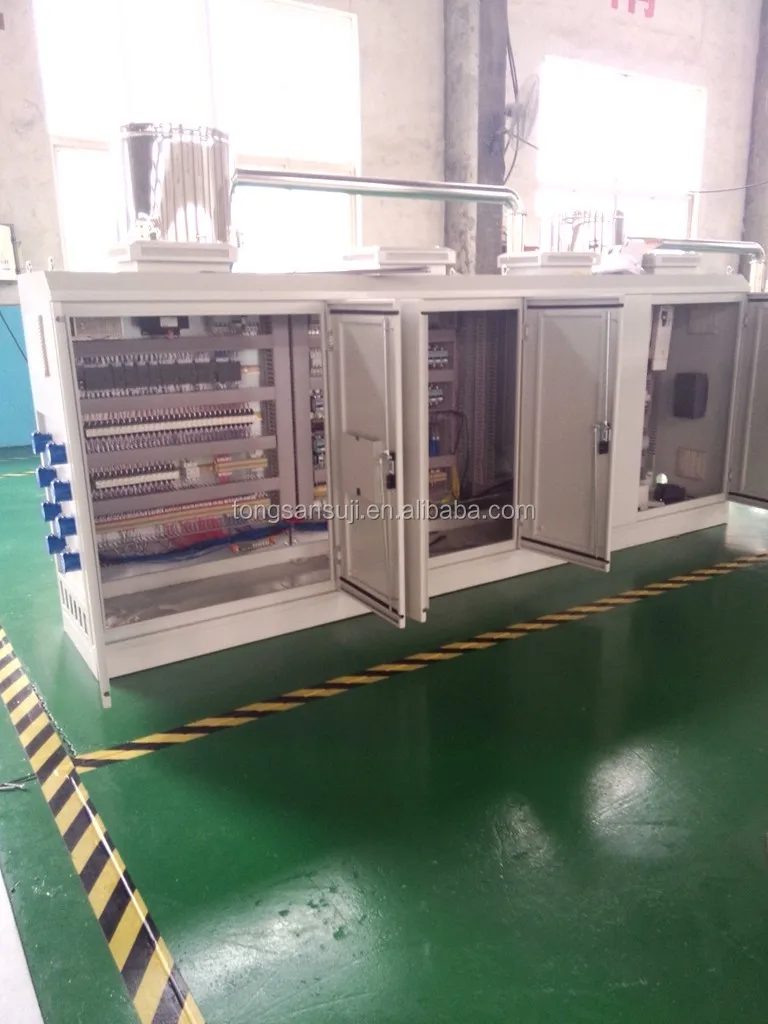

electricity system

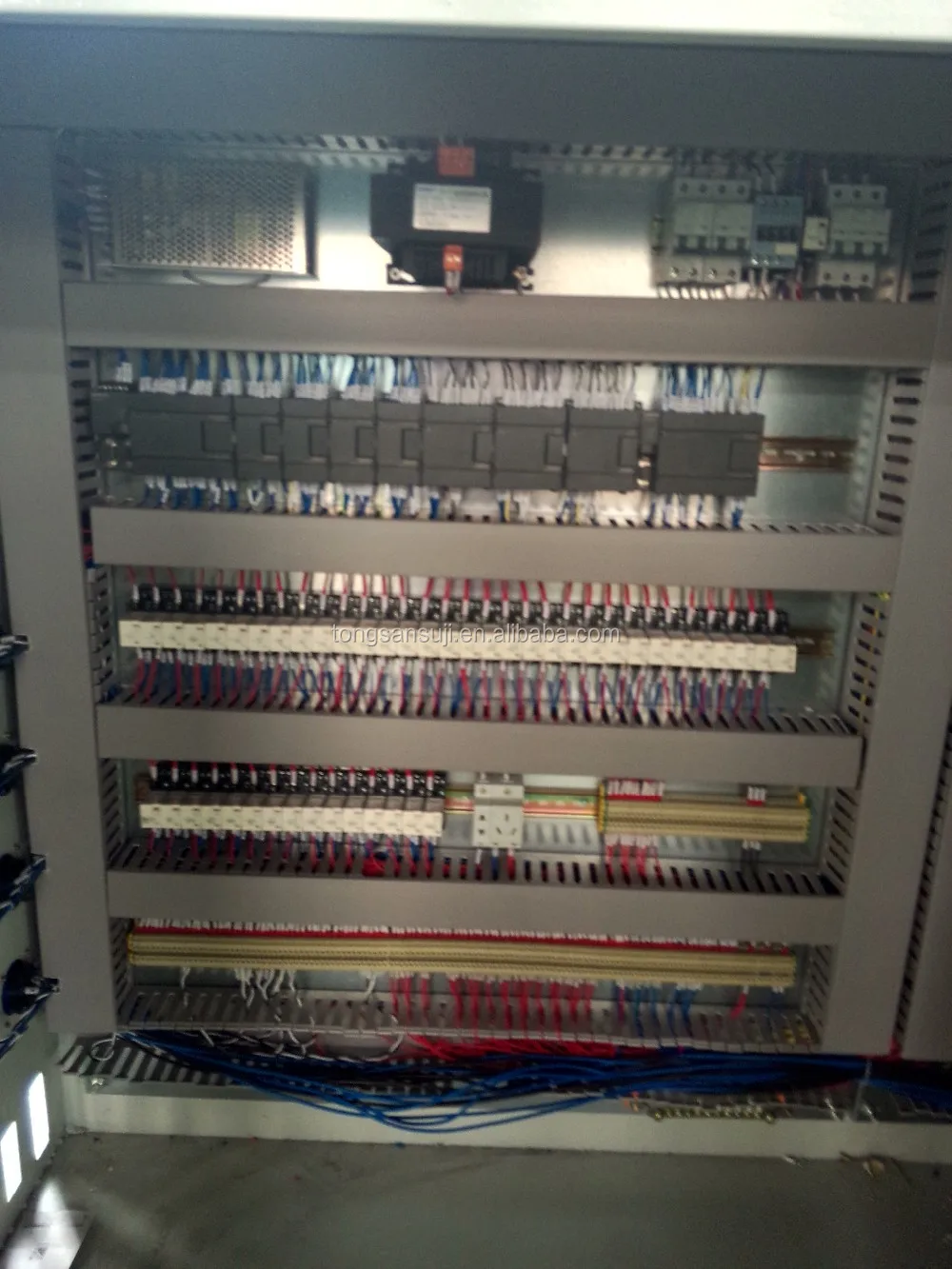

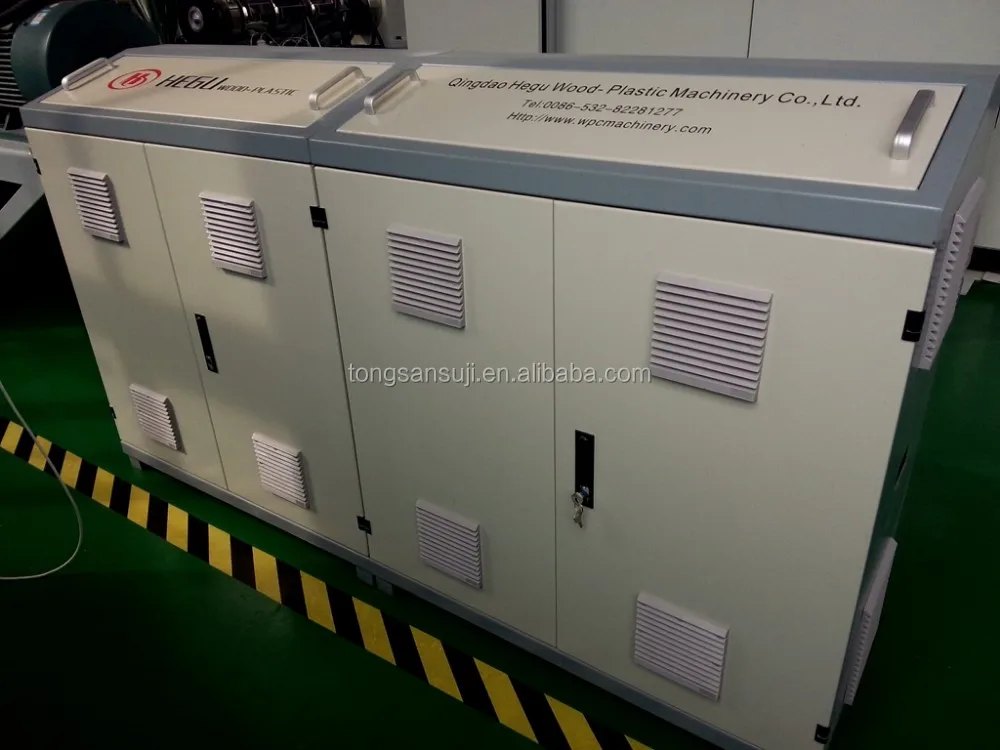

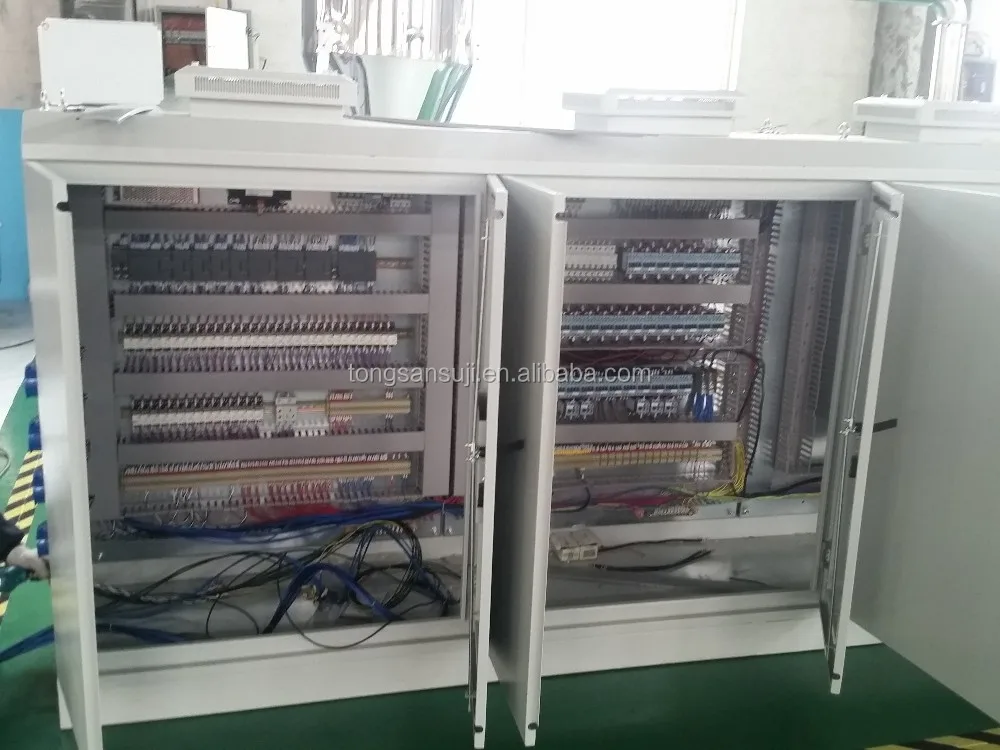

High quality electricity control cabinet for our Wood plastic WPC decking machine

Schneider contractor


ABB inverter


Siemens PLC control


cables with marked Number

all electricity parts are orderly put in the cabinet

the cabinet is designed with beautiful appearance.
the cabinet is easy to be open or closed by spring lock, the cabinet is designed with heat cooling system..
Our service

INSTALLATION AND COMMISSIONING
WE WILL SEND THE TECHNICIAN TO BUYER’S FACTORY FOR INSTALLATION AND TESTING THE WHOLE LINE, AND OUR ENGINEER WILL DO TRAINNING TO BUYER'S WORKERS UNTIL THEY CAN RUN OUR MACHINE FOR STABLY PRODUCTION

AFTER SELL SERVICE: ONE YEAR GUARNTEE, FOREVER SERVICE!
WITHIN THE GUARANTEE OF ONE YEAR, WE WILL PROVIDE EFFICIENT AND ON TIME MAINTAINS,IF ANY SPARE PARTS DAMAGED IN THE GUARANTEE TERM BECAUSE OF QUALITY PROBLEM, WE WILL PROVIDE NEW SPARE PARTS FOR FREE FOR REPLACMENT.

Turnkey project service:
1, we will provide all the machines for the complete production according to customer's requirements.
2, we will provide complete service for factory layout and other informations to help customer to build the factory.
3, we can also provide the raw material to the customer if you need.
4, we will provide good service for machine installation and trainning, until the customers can run the machines and make stably production.
5, Except one year quality guarantee,we will provide after-sell service for all the life.
6, for long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. let us do win-win business together.


Contact: Rosy Qin
Mobile: 0086-15965573925
Skype: rosy-hegu
Alibaba: cn220187026
If any interest or questions about our machine, please feel free to contact with me.
Factory workshop

PE pipe production line

With this production line you can extrude high quality large diameter water and gas supply pipes .This pipes produced by our line have excellent stiffness and flexibility ,resistance to creep deformation ,excellent heat-linkage .Large dismeter HDPE pipes start to play very important role in the city water and gas supply systems.

The production line consists of control system ,extruder,mould,calibration unit,haul-off unit,planetary cutter and stacker.

This line is assembled lattice or spiral mould, new type calibration unit and spraying cooling bath. Advanced PLC control system and large chromatic liquid-crystal screen make the operation more convenient ,having a friendly human-machine interface.


PVC pipe production line

PVC PIPES are applied to agricultural and construction water supply and drainage, overhead or underground wire and cable.

Due to the special characteristics of the CPVC plastic pipes, they are widely used in the fields of crude oil transportation, pipe lines of chemical industry which require high temperature and corrosion resistance, hot and lukewarm water supply and drainage system, directly buried pipes of high and extra high voltage electricity, protection sleeves of wires and cables, etc.

PVC ceiling panel production line

1, plastic pvc profiles extrusion line is specializing in producing PVC plastic profiles including doors and windows profiles, decorative plates, tiny foaming profiles and decorative plates
2, pvc profile machine uses PVC powder as material to produce various sorts of the mentioned plastic profiles as profiles for doors and windows, decorative profiles, etc
3, By Absorbing advanced technology from abroad, our company developed the large plastic profile extrusion line, which is equipped with conical double-screw extruder, and it possesses the advantages of high degree automation, stable performance, high output and efficiency, etc
4, If change certain screw and mould, the pvc profile machine can directly extrude foaming profiles, and the effect is much better than that of single-screw.
5, pvc profile extrusion line is optimumly designed by referring to the latest overseas technology, it bears the features of even plasticization, low cutting rate, high output, and long lifespan, etc. And it composes conical double-screw extruder, vacuum sizing platform, tractor, cutting and film coating machine and material stirring bracket,etc.
6, The pvc profile machine is run by alternating current frequency controller or direct current controllable silicon. The temperature controlling instrument is introduced from abroad. In addition, the vacuum pump and traction engine of the auxiliary machines are quality products which can be maintained easily
7, To match with different moulds, the shape-fixing platform of 4m, 6m, 8m or 11m, etc. can be chosen accordingly. The main machine with parallel double-screw is especially suitable for high-speed extrusion of various kinds of profiles.

plastic granulation machine line

This extruder with modular construction and all gear-closing screw ,has the advantages of strong self-cleaning and good exhaust effect.The dual-metal alloy bushing is wear-resisting and corrosion-resisting.The machines can be equipped according to the material process,it has advantages of wide use, high output and low energy consumption.The granulation mode and electric control mode can be optimized according to the material and process requirements. With high mixing performance, parallel syntropic twin-screw extruder is adaptive to different processing of various materials,It is widely applied in the area of polymer processing, food processing, chemical products, auto industry, building decoration, especially in WPC granulating.

PVC fiber reinforced hose making machine

plastic single wall corrugated pipe machine

1, material for the single wall corrugated pipe and corrugated tube:
This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes
2, application for the single wall corrugated pipe and corrugated tube:
Plastic single-wall corrugated pipes have feathers of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.They are widely used in fields of auto wire,electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lanterns wire,tubes of air conditioner and washing machine,etc.
3, advatanges of the single-wall corrugated pipe machine (the machine for corrugated tube):
SJDBGZ seies plastic single-wall corrugated pipe production line developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of the up-market cars.
This production line with good performance and reasonble price,it will be the best choice for your producing single-wall corrugated pipe.

plastic double wall corrugated pipe machine

Application of Double wall corrugated pipe machine:
PVC PE double wall corrugated pipe machine/extrusion line adopts extruding and forming process, has the features of reliable quality and high efficiency. Compared with other plastic pipe wall structure, double wall corrugated pipe has excellent wall structure design, its low weight reach the lower production cost and improve the market competitiveness. It is widely used in various field instead of concrete pipe and iron pipes, because it has excellent features such as: easy connected and accessories installed, and quality reliable,


Advantage of TONGSAN Brand double wall corrugated pipe machine:
The main machine adopts special designed high efficiency screw which is specially used for polyolefin, it has the features of stable performance and high efficiency. The machine has two independent extruders, which can realize both inside and outside layer with different material and colors
Composite extrusion die head with specially helical structure to make the wall thickness uniform and stable production.
The forming machine has automatic power-off protection deivce. The forming machine can automatically exit from the die head to avoid equipment failure in case of electricity cut off suddenly. It also equipped with new type high transmitting ratio reducer, easy to operate and maintenance.
The corrugated forming system is in combination with water cooling and air cooling to ensure high production speed continuously. Advanced programmable lubricating system minimizes the moulds wear so as to increase the life of service and ensure work smoothly with high precision to ensure the products quality stability.
Mould adopts special aluminum alloy material and high precision die casting forming mould method, it has the advantages of high precision, high strength, good wearability and better heat dissipation performance.
Wave structure launched a comprehensive new optimization design to reach the best combination of high-rigidity and low weight.


plastic sheet extrusion line

l This production line is capable of continuously producing mono-layer or multi-layer PVC/PP/PE/ABS/PMMA/PC/PS/HIPS plate and sheet with the width less than 3000mm and thickness of 0.25-30mm .The products are widely used in the fields of refrigerater ,air conditioner ,auto,advertisement ,and construction ,environment protection ,etc.

l The line includes many equipments ,such as :extruder ,screen changer and mould,three-roller calendaring machine,bracket of cooling roller,landscape orientation cutting machine and the winder.

PP PE PVC wood plastic WPC profile extrusion line

The wood-plastic is a new kind of synthetic material through the process of mixing、exruding、calibrating、hualing off and cutting, which uses PVC,PP,PE resin or recycled plastic and plant fibre ( wood powder、chaff、straw etc.) as raw material. This kind of wood-plastic are not only very similar with natural wood in appearance and feel, but also have the same characteristics as wood of excisable、 planeable、sawable、 unmatched grip、low bibulous rate、 good moisture resistance、 mothproof、mildew resistance、good resistance to acid and alkali、anti-corrosion, and it has the feature of fire resistance. The products are non-toxic、non-polluting、environment-friendly and save-energied, without formaldehyde, benzene and ammonia and other harmful substances. The wood-plastic products are widely used in outdoor floor、 close to water construction、balcony、landscape architecture、chairs and benches, fences, interior doors and windows, furniture, etc.

WPC door machine

SJMS series wood-plastic door profile extrusion line mainly use PVC+wood powder to extruder wood-plastic profile such as building partition, cabinet door panels, window sill, skirting board, door edgeline, door jamb, window shutters, photo frame, mirror frame, furniture edge banding, door frame, door pocket, window pocket, column profile, stair handrail, floor board, decoration cladding panel, furniture, WPC pipes, etc.
Proper double screw extruder and single screw extruder, specially used for wood plastic products, can be chosen in accordance with the panel section, application, product specific gravity.
     Also the corresponding auxiliary machines such as vacuum shaping platform, hauling machine, saw machine, material reversing platform, etc. are equipped. Products of diversified specification can be produced with different dies.

WPC foam board machine

This production line adopts our unique wood and plastic technology and formula, it can extrude wood-plastic plates with PVC+ wood powder. The WPC products are widely used in high-grade car interior decoration, advertising board , base material and decoration materials for hotels, restaurants and entertainment .
According to customers different requirements, we offer three models to meet customer’s requirements( as following table). This line includes three-roller calendering machine, traction machine, uniquely designed plate shearing machine, and also equipped with the edge-cutting device for the waste material. Three water/oil boxes can control the temperature of three rollers. And the three rollers can be adjusted separately and it’s surface under the polishing treatment
The wood-plastic plate: product width 1000-2000mm, product thickness 3-35mm.
