Plastic PP PE Hollow corrugated sheet machine automatic / Plastic packing box production line

  • 1 - 4 Sets
    $140,000.00
  • 5 - 9 Sets
    $135,000.00
  • >=10 Sets
    $130,000.00
Model Number:
TS-PMS-SJ120/36
Output (kg/h):
300-350
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$10.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
sheet, profile, Plates
Plastic Processed:
PE, PP, PC, PE/PP, PC PP PE
Output (kg/h):
300 - 350
Screw Design:
Single-screw
Showroom Location:
Egypt, turkey, UNITED KINGDOM, GERMANY, VIET NAM, peru, SAUDI ARABIA, indonesia, pakistan, INDIA, Mexico, RUSSIA, spain, Thailand, Morocco, kenya, argentina, South Korea, CHILE, UAE, Colombia, algeria, Sri Lanka, Romania, BANGLADESH, south africa, KAZAKHSTAN, UKRAINE, kyrgyzstan, NIGERIA, uzbekistan, Tajikistan, malaysia, Australia
Place of Origin:
Shandong, China
Brand Name:
tongsan
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
25M*2.5M*3.5M
Weight:
20T
Certification:
ISO CE SGS
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
Good quality PP hollow sheet making machine manufacturer price
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, turkey, UNITED KINGDOM, GERMANY, VIET NAM, philippines, peru, SAUDI ARABIA, indonesia, pakistan, INDIA, Mexico, RUSSIA, spain, Thailand, malaysia, Australia, Morocco, kenya, argentina, South Korea, CHILE, UAE, Colombia, algeria, Sri Lanka, Romania, BANGLADESH, south africa, KAZAKHSTAN, UKRAINE, kyrgyzstan, uzbekistan, Tajikistan
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, farms, restaurant, HOME USE, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Name:
Plastic Hollow Sheet making machine
auxiliary machines 1:
Silk- screen printer
auxiliary machines 2:
UV Lengthening type curing machine
auxiliary machines 3:
automatic feeding manipulator
auxiliary machines 4:
Die cutting machine
auxiliary machines 5:
Binding machine
Sheet width:
1200-3000mm
Thickness:
1.5mm-12mm
Mold:
T-type sheet mold
Screen changer:
hydraulic screen changer
Screw Material:
38 CrMoALA
Screw diameter (mm):
120 mm
Screw L/D Ratio:
36:1
Product Certification certification
CE Certified.
Valid from 2019-02-19 until 2022-02-14
Packaging & Delivery
Packaging Details
standard sea worth package ,mainly pallet and PE film for Plastic PP Hollow corrugated Sheet automatic corrugated packing box making machine
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 To be negotiated
Video Description
Product Description

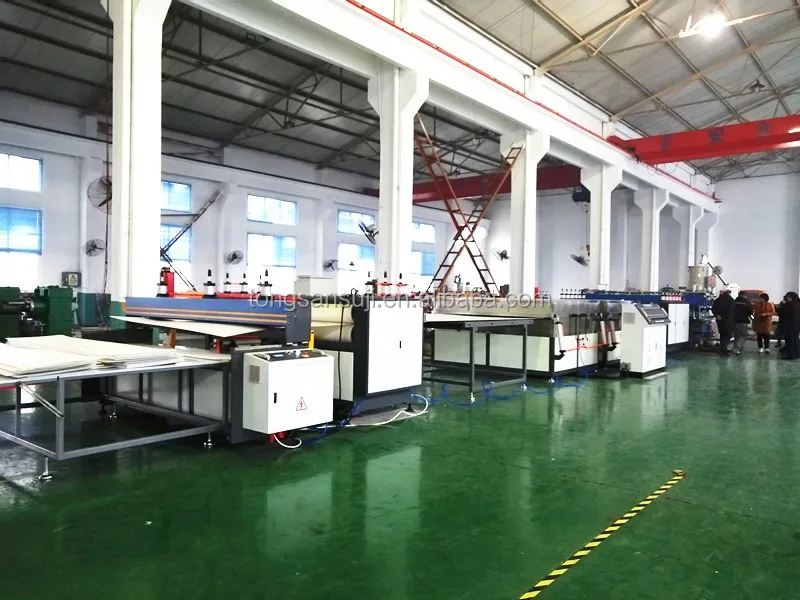

Plastic PP Hollow corrugated Sheet automatic corrugated packing box making machine

This production line realizes continuous production of PC/PE/PP hollow grid plate, which is applicable to construction decoration, advertisement collocation, and noise insulation of highway as well as packaging. PE/PP hollow grid plate is an ideal substitute for paper box in making packaging box. It is characterized by light weight, high intensity, dampproof, and anticorrosion. The width of the products is 1220-2800mm, and the thickness is 2mm-12mm.

Models of PP hollow sheet extrusion line

We have different models of PP hollow sheet extrusion line for making different width, we have the machines in our factory stock, and we can provide free machine testing if any customer visit our factory to check our machine
Model
Sheet width
Sheet thickness
Extruder model
Main motor power
TS-1400
1250mm
2-6mm,7-12mm
SJMS100/36
55-75KW
TS-1860
1700mm
2-6mm,7-12mm
SJMS120/36
75-90KW
TS-2300
2100mm
2-6mm,7-12mm
SJMS120/36
90-110KW
TS-2600
2450mm
2-6mm,7-12mm
SJMS120/36
90-110KW
TS-1400(CO)
1250mm
2-6mm,7-12mm
SJMS100/36+SJMS65/36
75KW+37KW
TS-1860(CO)
1700mm
2-6mm,7-12mm
SJMS120/36+SJMS65/36
90KW+37KW
TS-2300(CO)
2100mm
2-6mm,7-12mm
SJMS120/36+SJMS80/36
110KW+37KW
TS-2600(CO)
2450mm
2-6mm,7-12mm
SJMS120/36+SJMS80/36
110KW+37KW

PP hollow sheet application


The introduction of PP hollow sheet material will be a landmark start in the packaging industry. With advantage of low loss, effectively recyclable, simple production process, low labor cost, The PP hollow sheet is used to replace the carton packaging in packaging industry. The PP hollow sheet can be fully recycled after using and no loss in the production process, so that the packaging reached a real sense of environmental protection

Detailed Images

Extruder with feeder.

Extruder for pp hollow sheet machine: The specially designed screw and the advanced controlling system ensure excellent
plasticization, high output and stable extruding.

Hydraulic Quick Screen changer

Screen changer for pp hollow sheet machine : Quick screen changer of hydraulic system ensures the short course of screen changing.
Double-position combined with special sealing structure guarantee stable operation of screen changer.

Forming Die

Mold for pp hollow sheet machine: Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.

Main Calibrating device


Cooling Water Circulation System


Cooling and calibrating device.


Vacuum calibrating table for PP hollow sheet machine: Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.

1st Pull off machine

Tractor for PP hollow sheet machine: There are two tractors. The first one is high power, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal.

Heating oven device

Stress remover corona treatment device for PP hollow sheet machine:The advanced large area conductive heating mode can effectively
remove the stress of plate and further improve planeness of the plate.

2nd Pull off machine

The second one is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and
smooth cut of the edges.

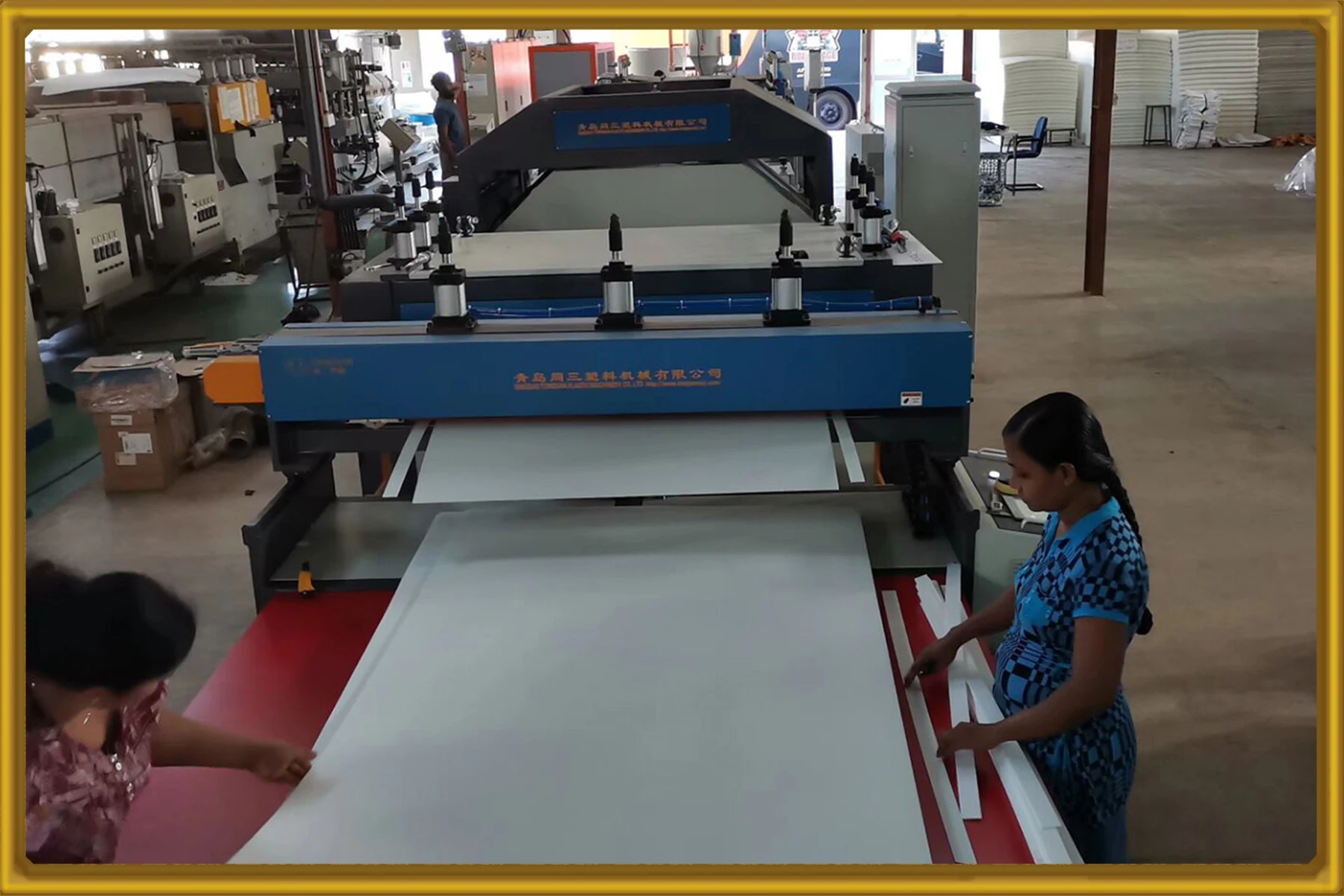

Automatic length cutter

Auto Cutting machine for PP hollow sheet machine: Accurate instant length-fixed cutting and automatic up-down discharging system combined with alloy steel sharp blade realize high quality of cutting.

Electric control system.

ABB inverter
Siemens contractor
Siemens PLC control
Omron temperature control
Siemens motor

Corona treatment device

It is necessary to use corona tretament machine for PP hollow corrugated sheet, it can help the surface to be better printed. our corona treatment device is high quality with strong corona effect

Related Products

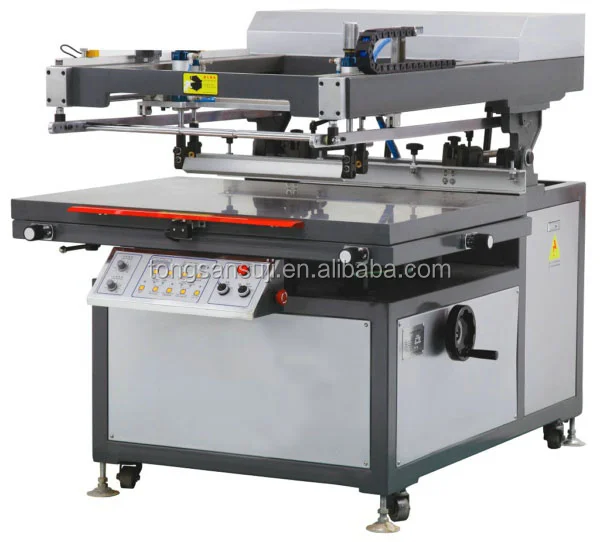

Silk- screen printer.

Widely used in the packaging industry
(e.g. Cigarette box packaging, wine box packaging, gift box packaging, etc.
Card printing), trademark, calendar, oil painting, computer keyboard,
Printing of New Year pictures, transfer paper, adhesive and credit CARDS;
Also suitable for electronic industry related printing.

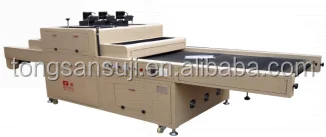

UV Lengthening type curing machine

Suitable for screen printing UV ink UV curing. Can produce grinding, local glazing, wrinkles, colorful convex oil, UV ink curing.

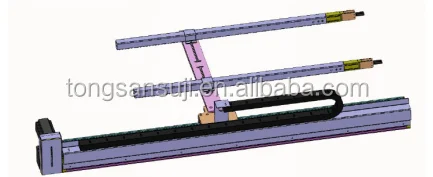

Automatic feeding manipulator

This series is widely used in the packaging industry (such as cigarette box packaging, wine box packaging, gift box packaging, etc.)

Brush), trademark, calendar, oil painting, New Year painting, transfer paper, adhesive, UV related printing industry on semi-automatic.

Die cutting machine.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

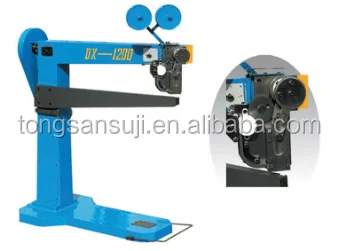

Binding machine

This machine is used for cutting the PP hollow sheet into required size and shape for packing box

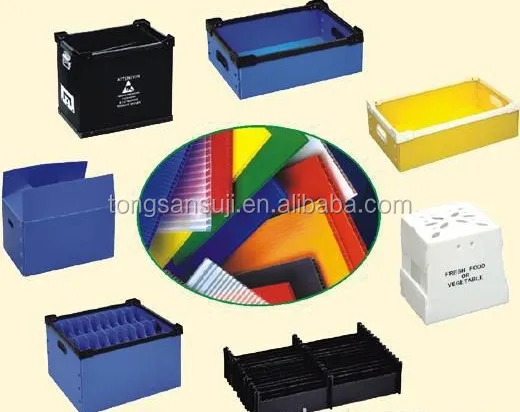

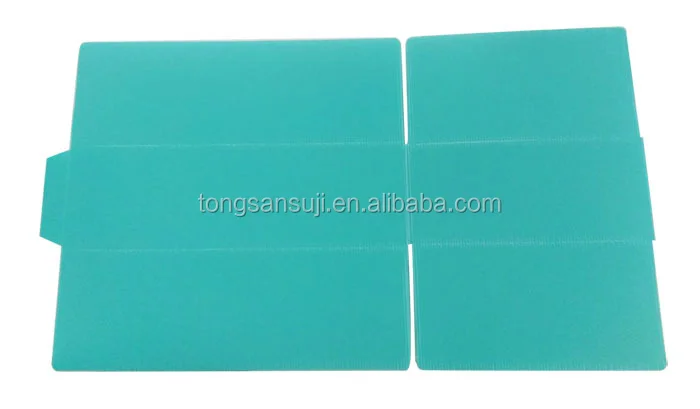

Hollow sheet box

PP hollow sheet has better physical properties than the carton, carton stability than good, not easy to tear, impact resistance is better than the carton, add colorant, cover the composite layer can be made of colorful products.

Our advantage of PP hollow grid sheet making machine


1,We adopt fan cooling style, the cooling speed can be fast.So it won't shrink after cutting, it can effectively reduce the error.And the speed of production can be more fast.

2,The oven's material is 201# stain steel,there are total 4 meters with two 2 meter oven.The customer can choose to use one or two according the product need.

3,Our company is the only one who adopt imported rubber roller which softness is more suitable for hollow grid sheet.The friction force of the rubber roller is more strong ,more durable and longer lasting.

4,The cutter adopt SERVO motor from Japan

5,The paul off machine adopt helical gear

6,The mold from GELL adopt special steel which made with Italian formula technology ,it has the characteristics of memory rebound.The mold is more wear-resistant and the service life is several times longer than ordinary mold.

7,One set mold can produce different thickness range ,such as 2mm-5mm,5mm-8mm,8mm-12mm,just by change the center of the mold.

8,The screen changer adopt silk screen circulation, altogether 4 pcs silk screen, 3 normal use, 1 standby . It does not need to stop when changing the silk screen .

9, The production line adopting the co-extrusion mode,so the recycled material (80 %-90 %) can be used in the middle, and new material can be used for the surface. The product has smooth surface which no visible difference to the naked eye, so it can reduce a lot of costs.

10,Our equipment has a good look. The wire is convenient to connect and the plug is easy to identify with the mark number.

11,There are 6 rollers on the front haul off machine and 3 rollers on the second haul off machine ,so the production line is more stable.

12,The haul off machine and the calibrating platform are on the same guide rail for convenient synchronous alignment adjustment.

Application Of PP Hollow Corrugated Sheet

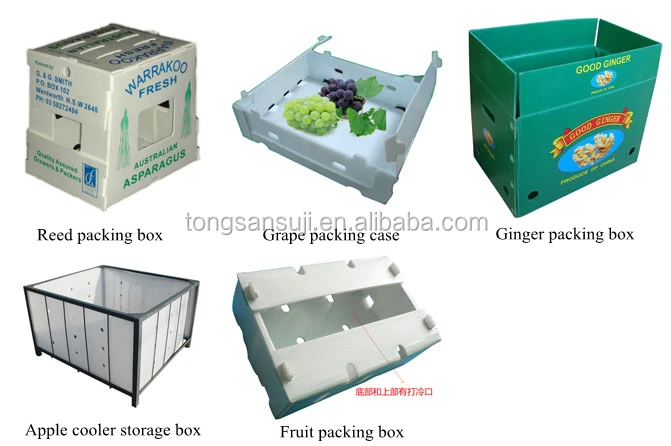

1, Application of PP Plastic Hollow Corrugated sheet/Plate in Fruit,Vegetable and Food Packaging
PP plastic hollow packing box has excellent moisture resistance, water resistance, low temperature resistance, light and high strength, non-toxic, environmentally friendly, recyclable and reusable features, etc.Products: Apple Store Packing Box, Ginger Packing Box, Asparagus Packing Box, Grape Packing Box, Milk Packing Box, Variety Packing Box, Dairy Packing Box, etc.
2, Application of PP Plastic Hollow Corrugated sheet/Plate in Industrial Packaging
PP plastic hollow plate is widely used in the field of industrial packaging, because of its light and high strength, good buffer performance, good weather resistance, environmental recyclable reusable.PP plastic hollow plate industrial logistics turnover box product line is very rich, there are double-layer fixed turnover box, single-layer fixed turnover box, single-layer folding turnover box, matching knife card pad, storage cage enclosure, etc. According to the function can be divided into electronic turnover box, auto parts turnover box, logistics turnover box and so on; can meet the logistics turnover needs of all kinds of enterprises.
3, Application of PP Plastic Hollow Corrugated sheet/Plate in Packaging of Glass Bottles
With the continuous improvement of the quality requirements of glass bottles, the traditional packaging of sacks cannot meet the needs of production and market. Tray packaging can overcome the drawbacks of sack packaging, can reduce the packaging and transportation of glass bottles broken, but also to avoid the sack after a long time on the bottle ash and even adhered to the bag of decay.PP plastic hollow plate according to the customer's requirements, sealing edge, sealing angle to produce a variety of high strength and size of glass tray packaging plate.
4, Application of PP Plastic Hollow Corrugated sheet/Plate in Advertising Decoration and Advertising Printing
PP Plastic is dedicated to improving the quality of hollow plate, research and development of plastic hollow plate deep processing. develop different processes according to different products. Made of indoor and outdoor advertising exhibition display board, publicity posters, dairy drinks and wine display box and other products, this product has waterproof and moisture-proof, anti-aging, exquisite printing, long use time, beautiful and generous, overall vision and other characteristics.
5, Application of PP Plastic Hollow Corrugated sheet/Plate in Refrigerator and Washing Machine
PP plastic hollow plate is a new type of environmental protection products, no pollution, no harm, meet the requirements of green environmental protection. The product has large internal quality, flat surface, high breaking strength, flame retardant, good moisture-proof performance, zero surface water and steam penetration, heat insulation, good energy saving effect. Especially the refrigerator with external condenser has excellent adiabatic effect. The company can make all kinds of refrigerator, freezer, washing machine back and base according to customer's request
Our Service

We have many machines in our factory stock, and we welcome you to visit our factory.we can show you our machine working if you visit us, we have following machines in stock.

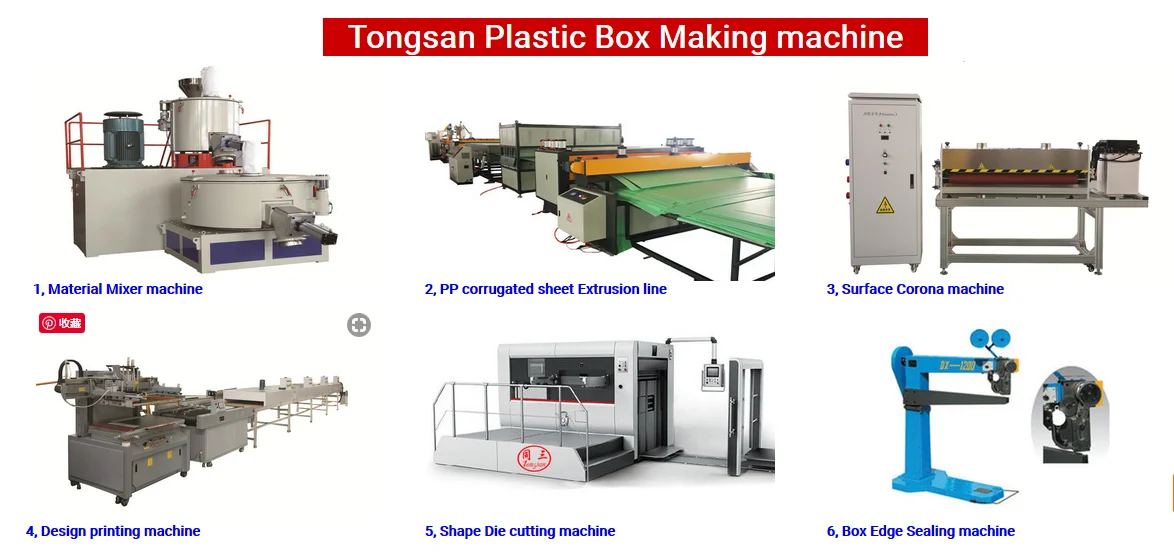

Our main products
Single wall corrugated pipe making machine
Double wall corrugated pipe making machine
Plastic PP PE  PPR PVC pipe making machine
PP PE PC hollow corrugated sheet machine
Plastic profiles making machine
