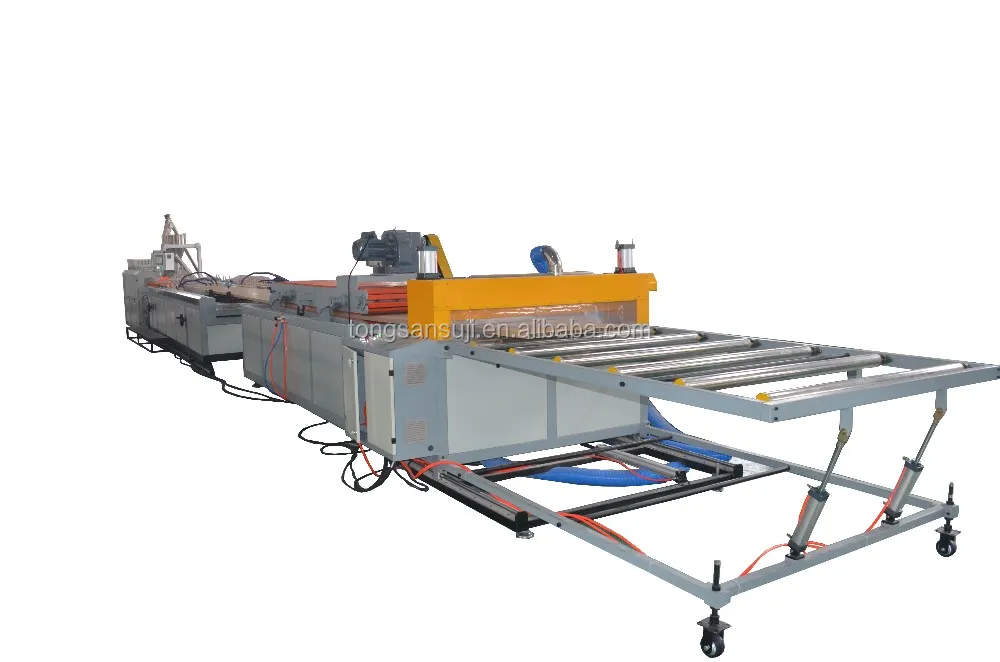

Turnkey project for PVC WPC hollow board door panel making machine price

  • 1 - 2 Sets
    $145,000.00
  • 3 - 4 Sets
    $144,000.00
  • >=5 Sets
    $143,000.00
Model Number:
SJ80/156,SJ92/188
Output (kg/h):
500-700
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 15 90 120 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$10.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Plates
Plastic Processed:
PVC, WPC
Output (kg/h):
500 - 700
Screw Design:
Double-screw
Showroom Location:
Egypt, Turkey, Viet Nam, Philippines, Peru, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, South Korea, Chile, Colombia, Algeria, Sri Lanka, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
Place of Origin:
Shandong, China
Brand Name:
HRGU
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
25M*2.5M*3M
Power (kW):
90
Weight:
20T
Certification:
ISO CE SGS
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Key Selling Points:
professional wpc door making machine manufacturer
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Turkey, United Kingdom, Italy, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Name:
PVC DOOR PANEL MAKING MACHINE
Raw material:
recycled plastic and plant fiber(wood powder,chaff,straw)
Max.extrusion capacity:
300-500kg/h
Product width:
600mm
Product thickness:
30-50mm
Invetery:
ABB invetery
Actual energy consumption power::
210kw
Extruder:
Conical double screw extruder for wpc door machine
Main motor Power(W):
90KW
Screw Material:
38 CrMoAlA
Screw diameter (mm):
92 mm
Screw L/D Ratio:
22:1
Product Certification certification
CE Certified.
Valid from 2019-02-15 until 2022-02-14
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard sea worth package,mainly wooden pallet and PE film for Turnkey project for PVC WPC foam board for door making machine price
Port
QINGDAO
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 15 90 120 To be negotiated
Video Description
Product Description


 Feasibity report for the WPC PVC door making machine turnkey project
Our company is professional for the WPC PVC door making machine turnkey project, we have rich experience for installing this project in different countries. we could provide you complete feasibility report for reference.

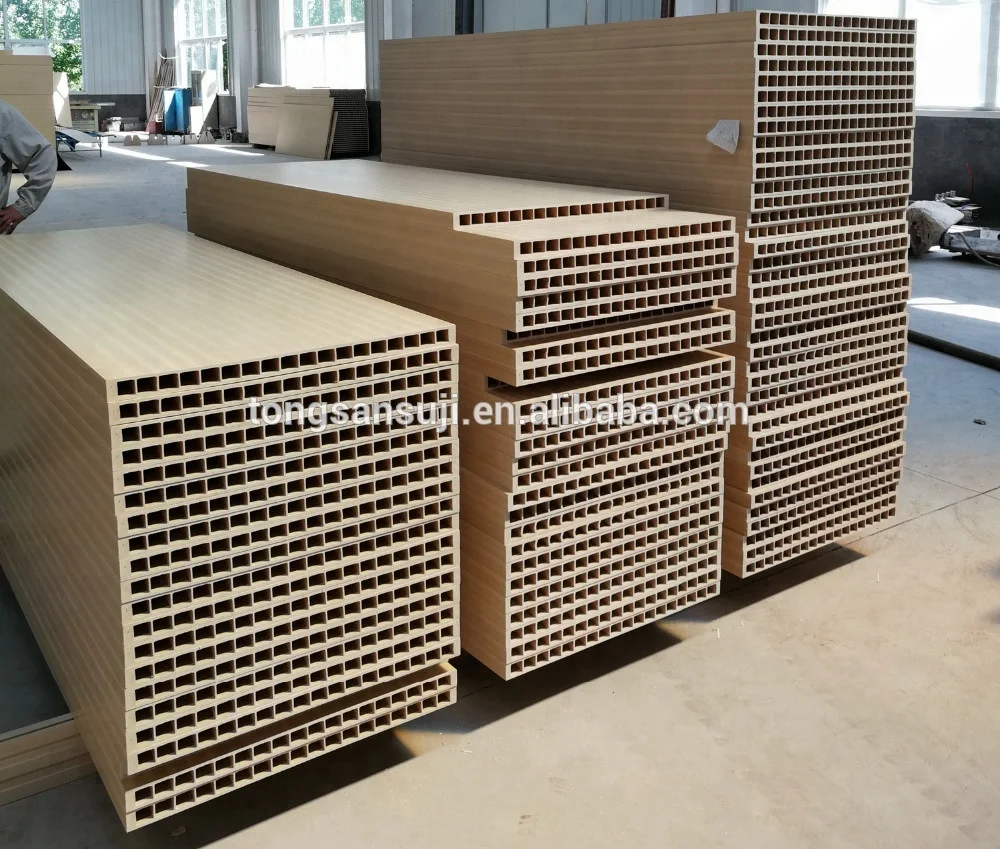

Description about WPC product
Wood-plastic products are a new type of green environmental protection sight material made from plastics and cellulose(straw,wood powder and rice chaff)by means of special treatment and processingMore durable,stable,hard density then wood fiber.It enjoys such advantages as follows:


1,Environmental friendly,100% recyclable,non-pollution,no toxic chemicals.


2,Recoverable,recycle,classical environment protection materials.

3,Against UV,weather resistance,flexible and strong arcing curves.

4,Corrosion resistance,moisture resistance and resistant to hot.

5,Colorful,easy to clean and maintenance.

The production line with the following feathers:


1) This technology is suitable to produce WPC products at high value with variety of plastic and nature fiber, and the material is of 90% of waste plastic and waste natural fiber

2) With scientific and reasonable technology, the machine has high efficiency and runs stably

3) The parallel twin screw extruder is used to mix the wood and plastic, and get good homogeneous melt

4) This is one step WPC extrusion technology, which saves energy

5) This production line can product wpc products of different specifications only to change mold.

6)Imported PLC automatic control

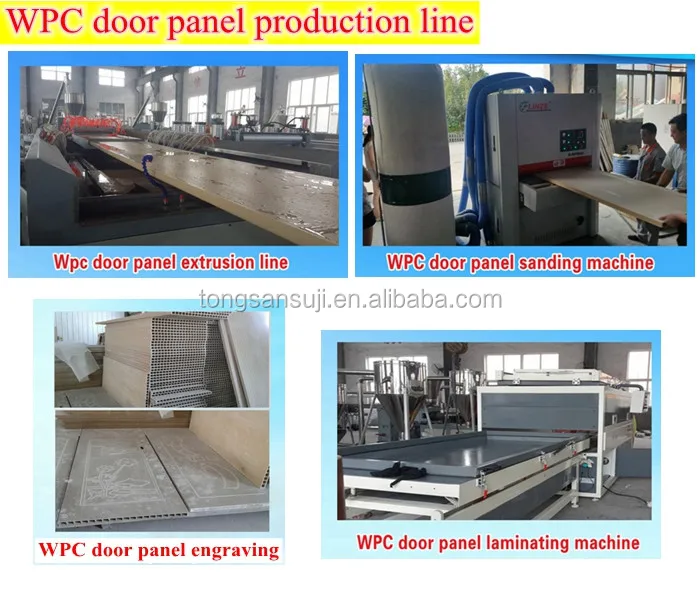

WPC door panel production line including following processing:


1, Material preparing: PVC Resin, wood powder, CaCo3, Chemical additives according to formula.

2, Mixing all the materials into uniform

3, Extrusion- mold- calibrating- haul off -cutting-stacking,you shall get the original WPC door panel

4, Sanding the surface of WPC door panel for two sides.

5, CNC engraving on the door panel to make 3D design, lock holes, hingle holes.

6, laminating on the WPC door panel surface.

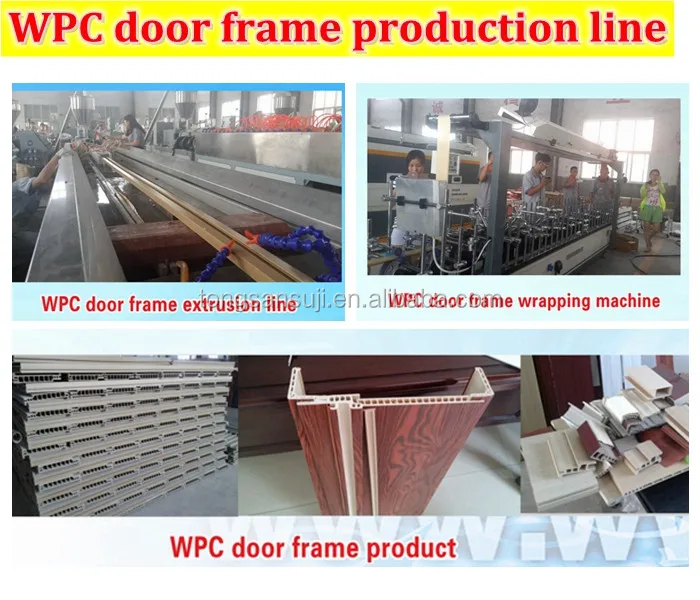

WPC door frame production line including following processing:


1, Material preparing: PVC Resin, wood powder, CaCo3, Chemical additives according to formula.

2, Mixing all the materials into uniform

3, Extrusion- mold- calibrating- haul off -cutting-stacking,you shall get the original WPC profile for door frame,

you can change different mold to make different profiles on the same machine line

4, laminating the WPC door profiles

5, installation WPC door frame.

Detailed Images

Machine Parts

Extruder for the WPC door making machine
SJSZ80/156 Conical double screw extruder
Main motor: 75kw
With auto feeding device
Capacity: 300kg/h


vacuum pump: 5.5kw*1 set

Main Features

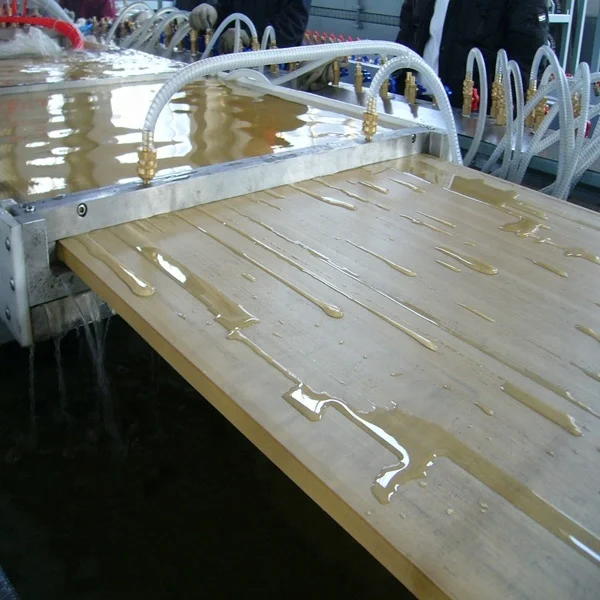

Calibrating machine for WPC door making machine
Cooling method: water cooling and vacuum cooling
length: 6 meters
water pump: 5.5kw*2 sets

Machine Parts

Haul off machine for WPC door making machine

Haul off by caterpillar

quantity of caterpillar: four pairs

material of cater pillar: rubber

haul off length: 3 meters


Main Features

Cutting device for WPC door making machine

Cutting by: circle moving saw

cutting length: adjustable

Description for PVC door panel extrusion machine and wpc door machine

1, Material of wpc door machine:
SJSZseries PVC wood plastic door machinery mainly use PVC+wood powder to extrude wood-plastic door panels.

2,extruder for wpc door machine:
 Proper conical double screw extruder,specially used for wood plastic products,can be choosen in accordance with the panel section,application,product specific gravity.

3,downstreams for wpc door machine:
 Also the corresponding auxiliary machines such as vacuum shaping platform,hauling machine,saw machine,material reversing platform,etc.are equipped.

4, Mold for wpc door machine:
Products of diversified specification can be produced with different dies.

Related Products

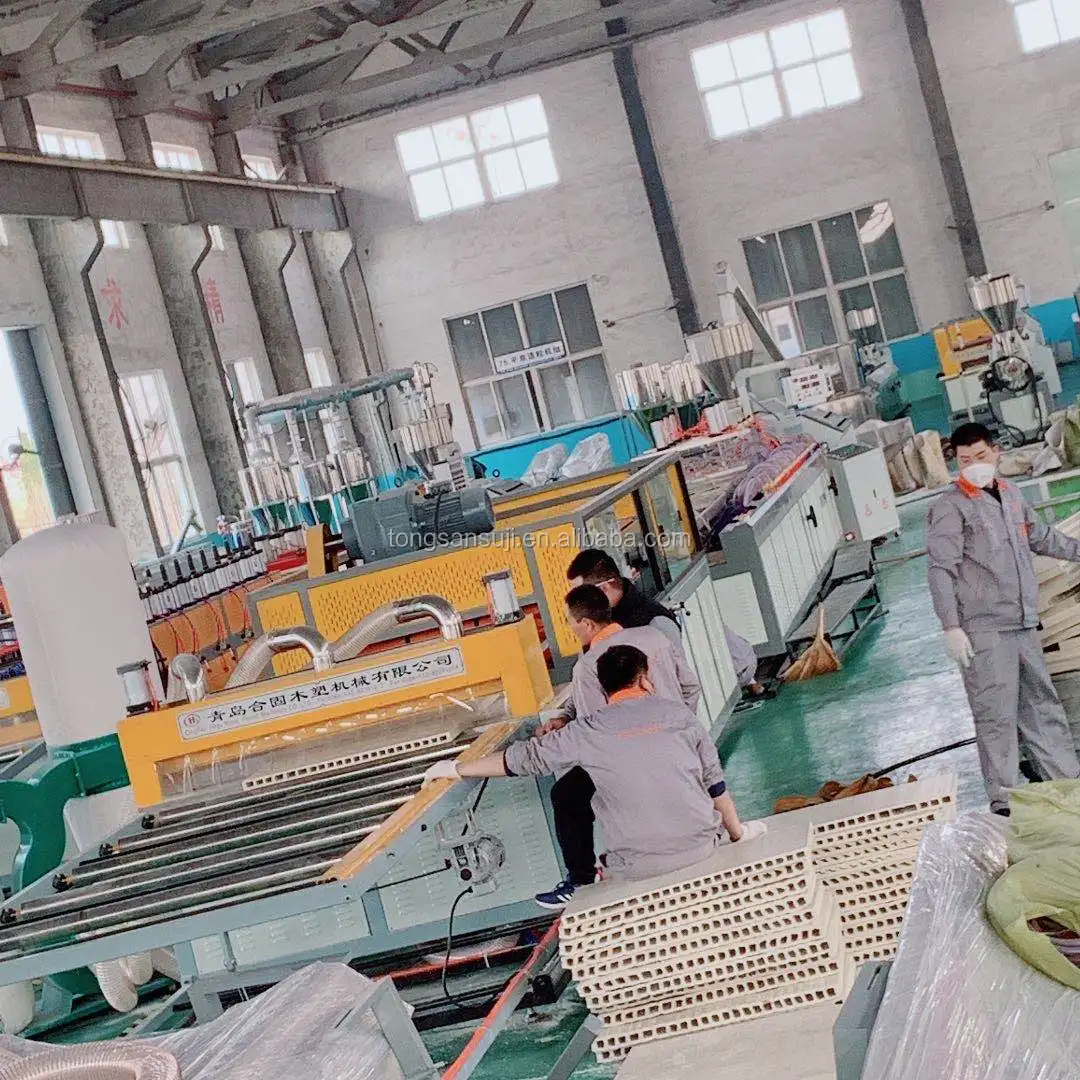

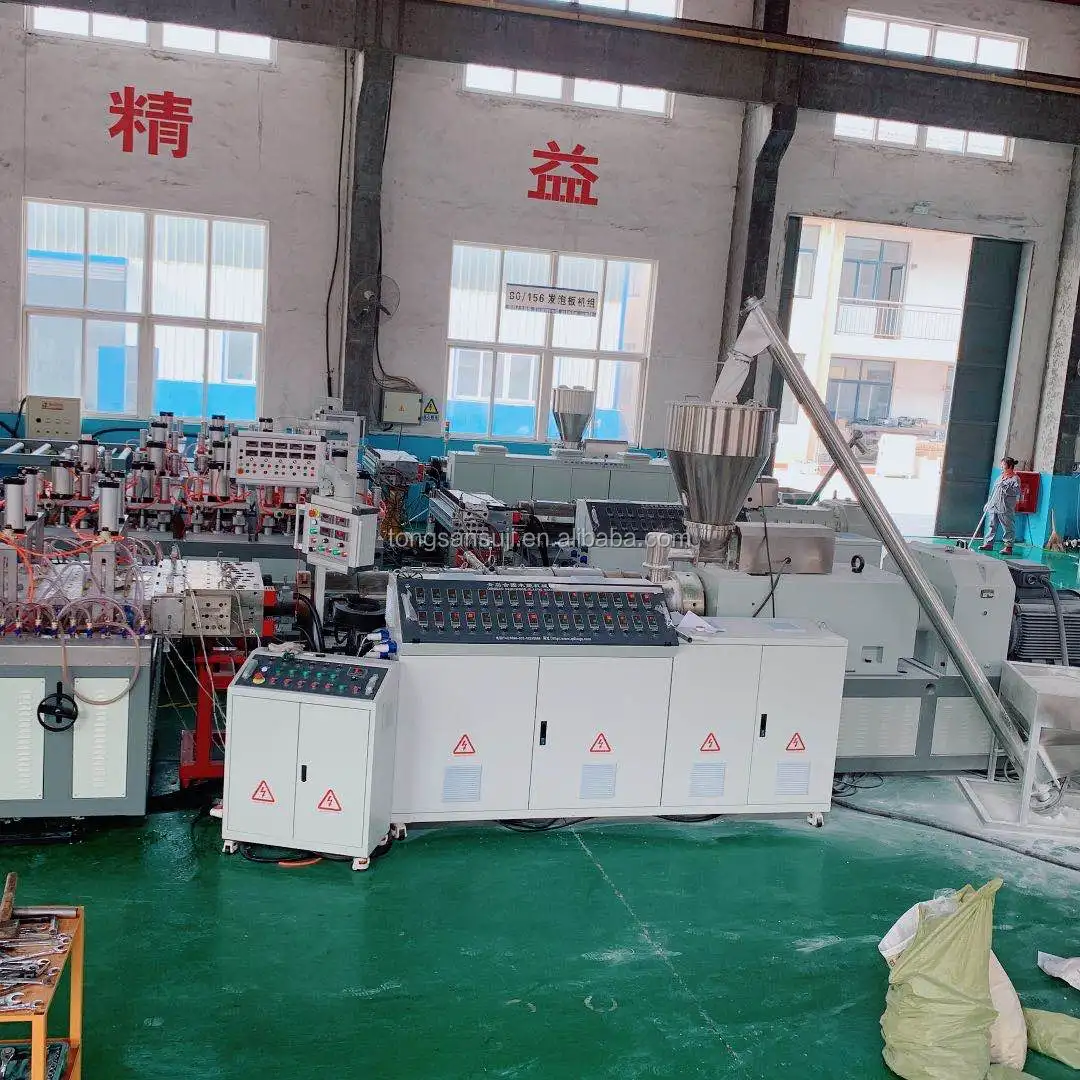

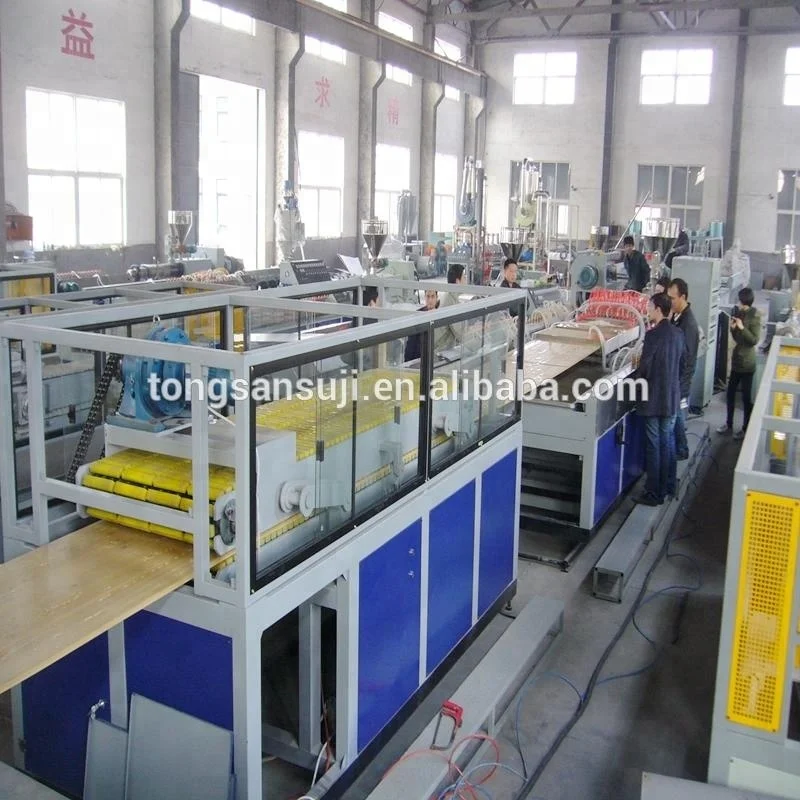

Machine in Workshop
Our Service

Perfect Service


1.We will provide the Feasibility Analysis Report for the wood-plastic project.

2.We will provide the model selection and technical parameter for wood-plastic machinery.

3.We will provide the design for the plant and electric power accounting for the facilities.

4.We will provide the design for wood-plastic formula according to the product requirements.

5.We will provide the technology of wood-plastic product surface treatment

6.We will provide technique training for operator.

7.We will provide solution for the practical problem during the production.

8.We will install and test the machine for free.

9.We will provide turnkey project to customers.

Certifications

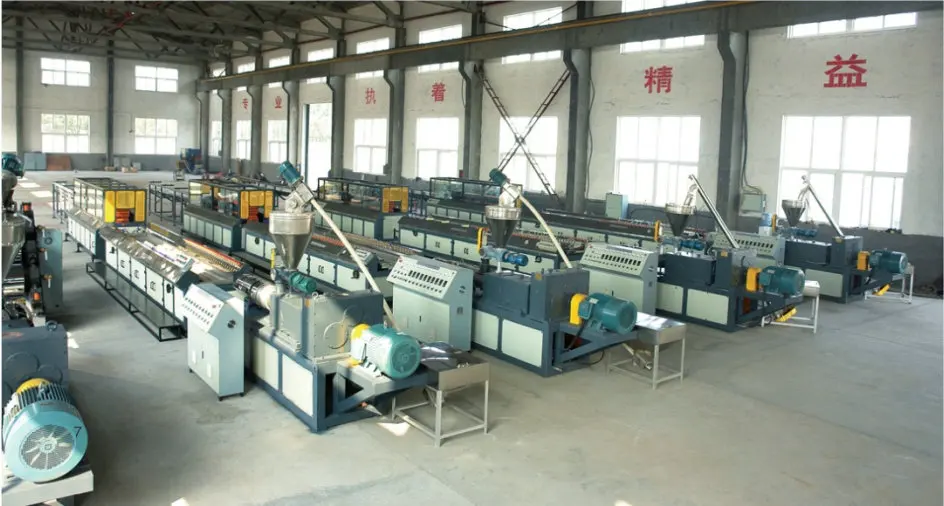

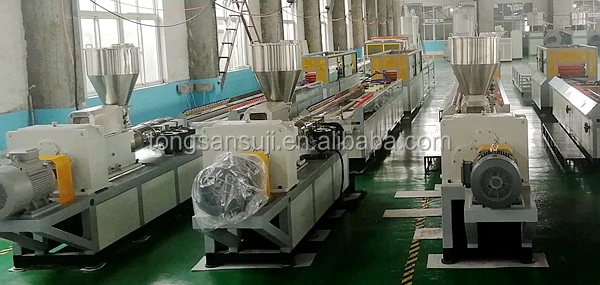

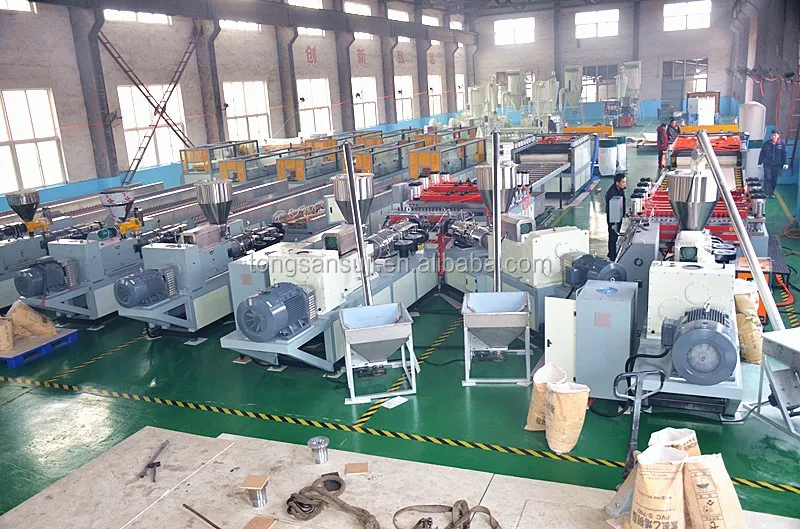

Machine in stock

we have many machines in our factory stock, and we welcome you to visit our factory.we can show you our machine working if you visit us, we have following machines in stock.


1, Corrugated pipe machine


2,WPC profile machine.

3, WPC door machine

4, WPC foam board machine.

5, PP hollow sheet machine

6, PE pipe machine

7, PVC pipe machine

8, PVC fiber reinforced hose making machine

9, PVC sheet machine

10, ABS/HIPS/PE/PP sheet machine.

11, other auxiliary devices, such as crusher, miller, mixer.

PE WPC granulating making machine

PE WPC profiles making machine

PVC WPC profiles making machine

PVC WPC door panel making machine

PVC WPC foaming board making machine
