Best selling high speed single wall corrugated pipe machine

  • >=1 Sets
    $26,000.00
Model Number:
GSDBGZ
Output (kg/h):
40-80kg/h
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$1.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
PIPE
Plastic Processed:
PP/PE/PVC/EVA/PA
Output (kg/h):
50 - 100 kg/h
Screw Design:
Single-screw
Screw Material:
38CrMoAlA
Screw L/D Ratio:
33
Place of Origin:
China
Brand Name:
TONGSAN
Voltage:
3P/380V/50Hz
Dimension(L*W*H):
10*2*1.5m(need customized)
Power (kW):
55
Weight:
1000kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Key Selling Points:
Long Service Life
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Pipe diameter:
4.5-58mm
Screw and barrel:
38Crchrome plating polishing treatment
Output capacity:
60-80kg/h
Dryer hopper:
1 set
Die head:
high quality
Extruder model:
SJ-65/30
Motor brand:
Siemens
Automatic Grade:
automatic
Screw diameter (mm):
65 mm
Product Certification certification
CE Certified.
Valid from 2019-02-19 until 2022-02-14
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
as export standard,pallet ,the material of pallet is stainless steel pipe the surface of each part of machinery covered film together with one set of packing list in english wooden crate : under fumigation treatment . together with one set of packing list in english partial shipment allowed container shipment allowed before delivery ,we will send the dimension & weight of machinery to customer to help the them choose suitable container
Port
QINGDAO
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description
GSDBGZ high speed single wall corrugated pipe machine is developed on the basis of our original single wall pipe machine.The moulds are moved by gear on the runway.It is equipped with specially designed water cooling sealing system,and the lubrication oil can be injected automatically.
In the forming machine, for small sizes mould,it can be set with two mould chambers which can make two different sizes of pipes only by adjsuting the height of forming machine automatically.
All these features improve the production speed of single wall corrugatede pipes to a great exrent,which can reach 20-25m/min.
Besides, the production line is equipped with pre-stress eliminating cooling device,automatic tapping machine in production line and automatic cooling machine,and it is especially suitable for the production of car harness corrugated pipes.
Model
Pipe Diameter
Extruder Model
Line Speed
Mould Pairs
Vacuum pump (Optional)
GSDBGZ-14
4.5-13mm
45/28
12-20m/min
63
1.5kw
GSDBGZ-50
10-50mm
65/30
20-30m/min
72
2.2kw

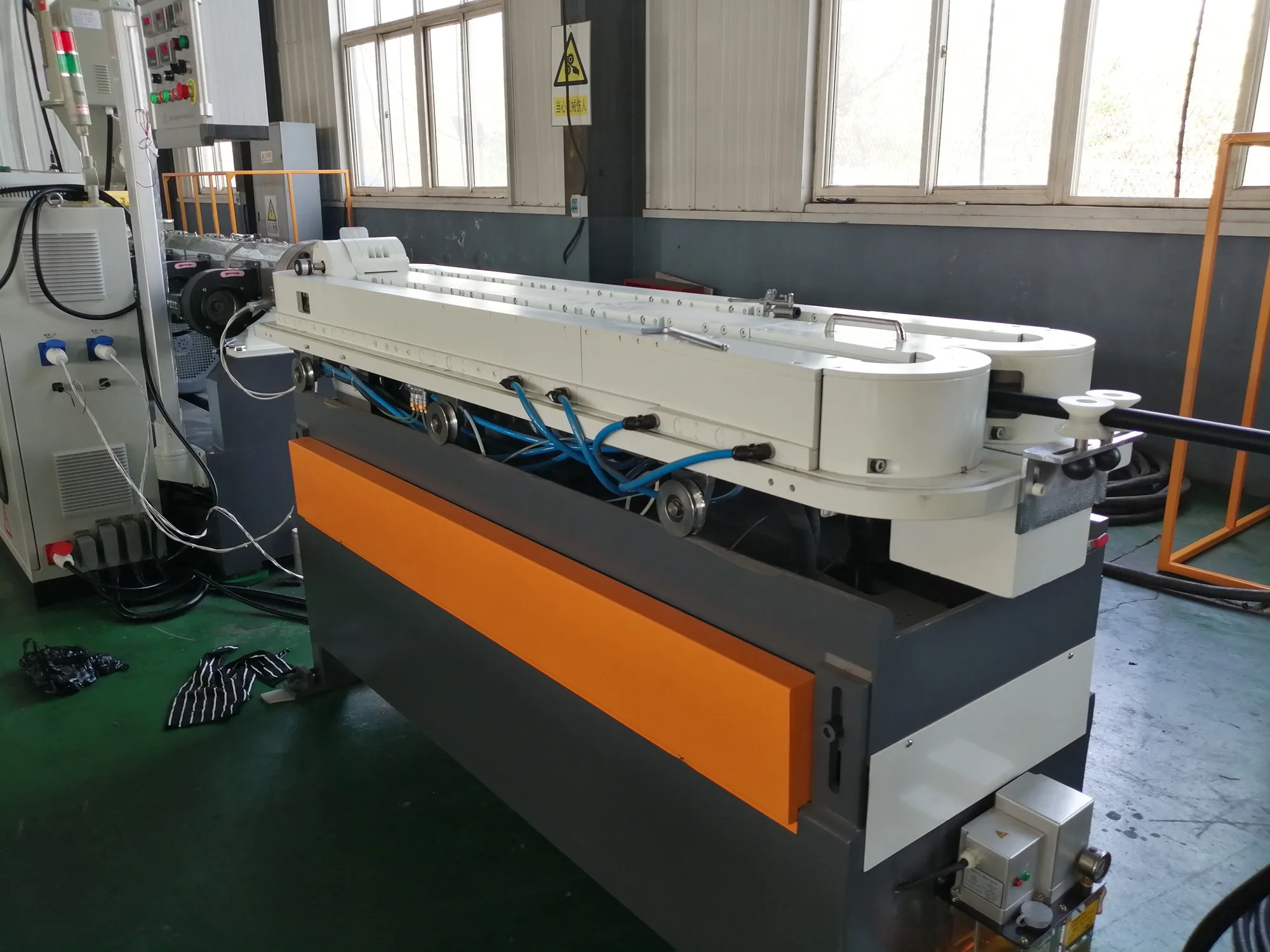

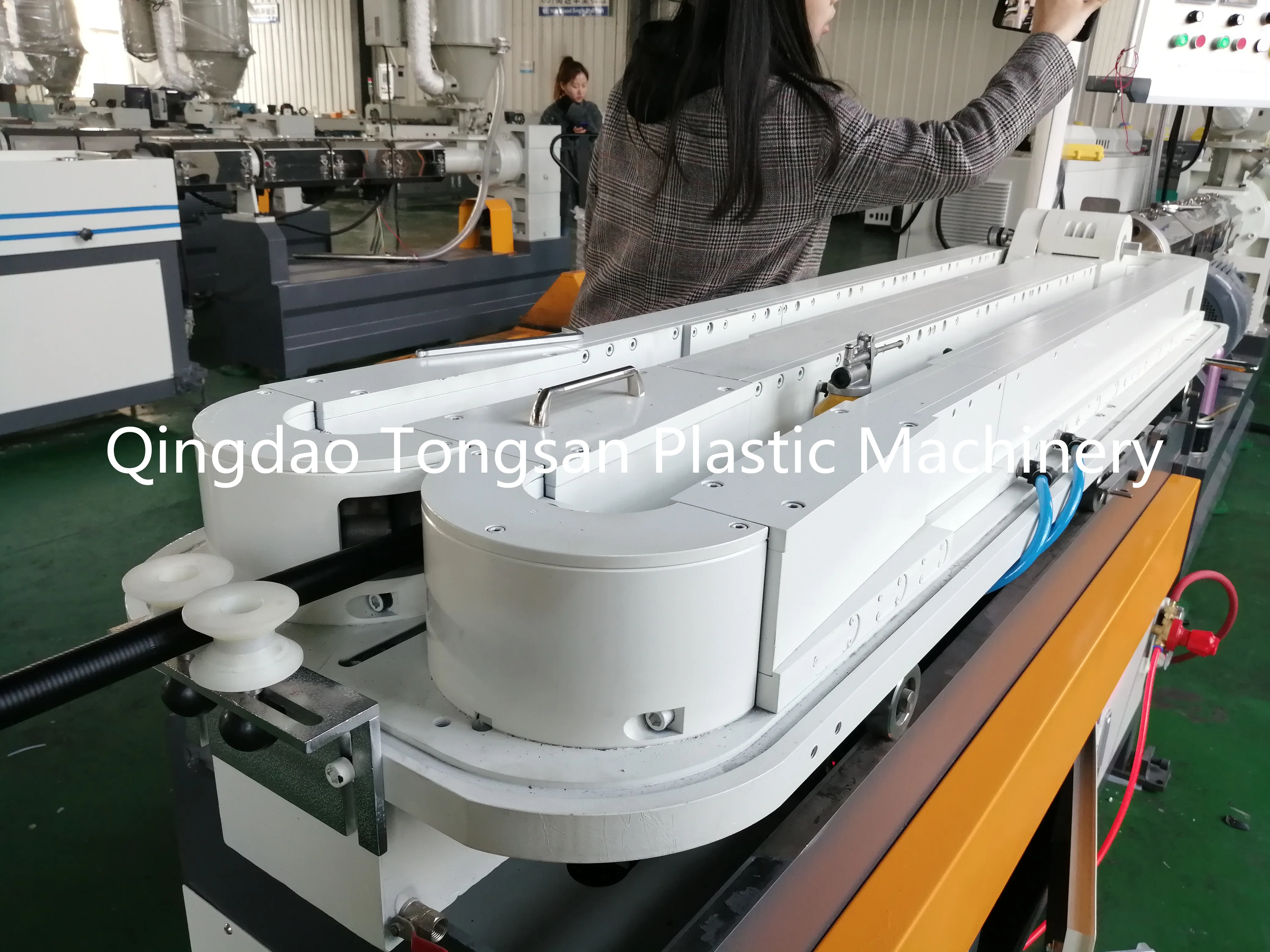

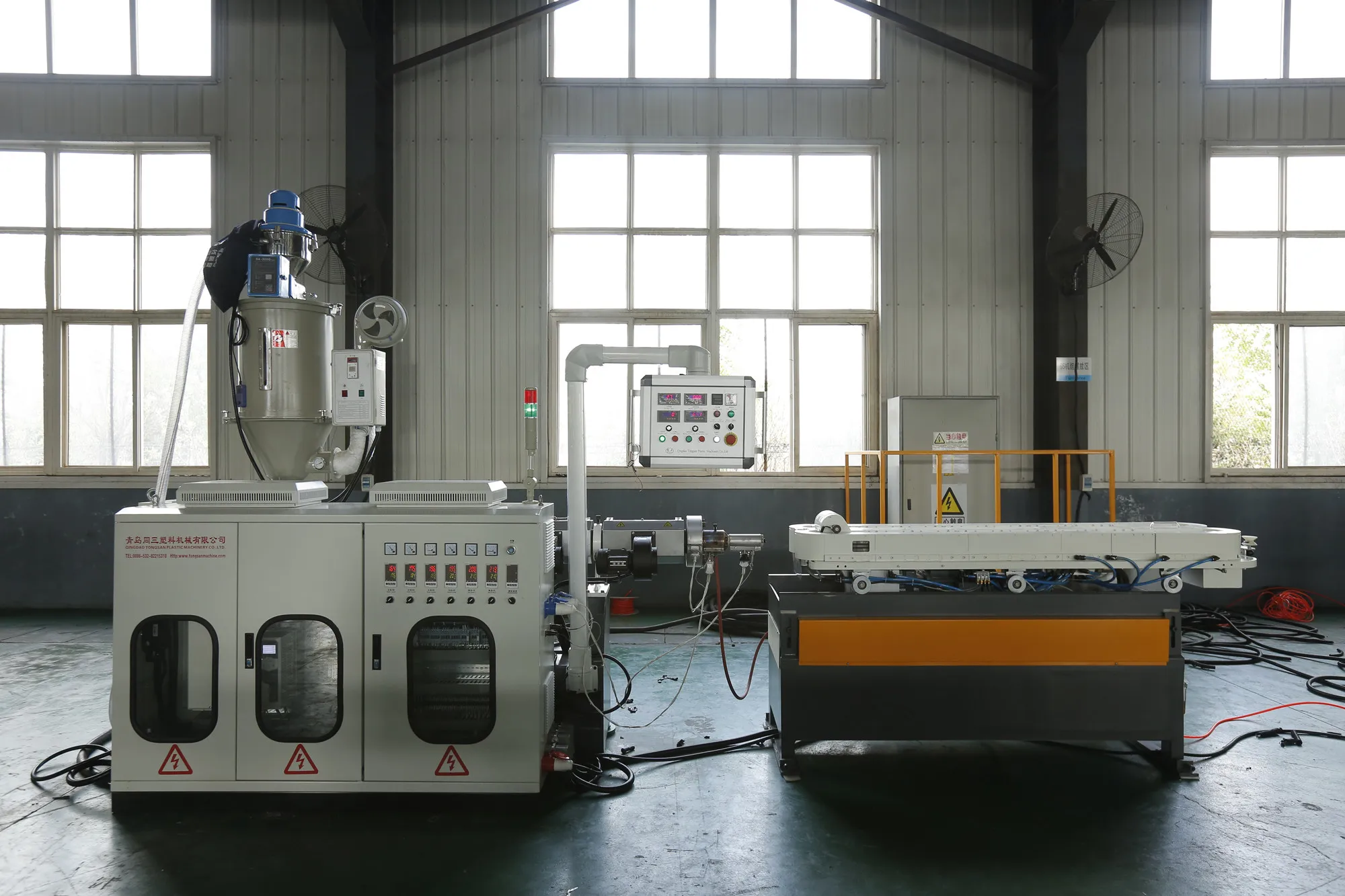

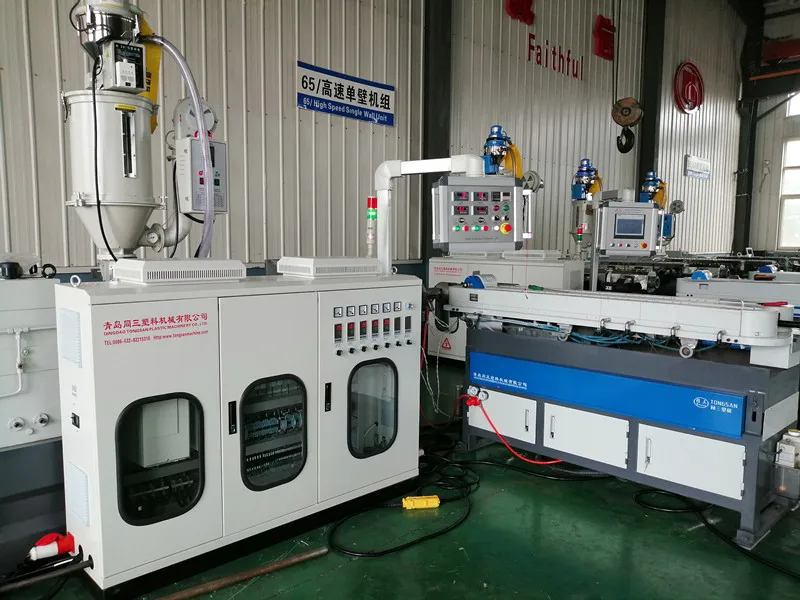

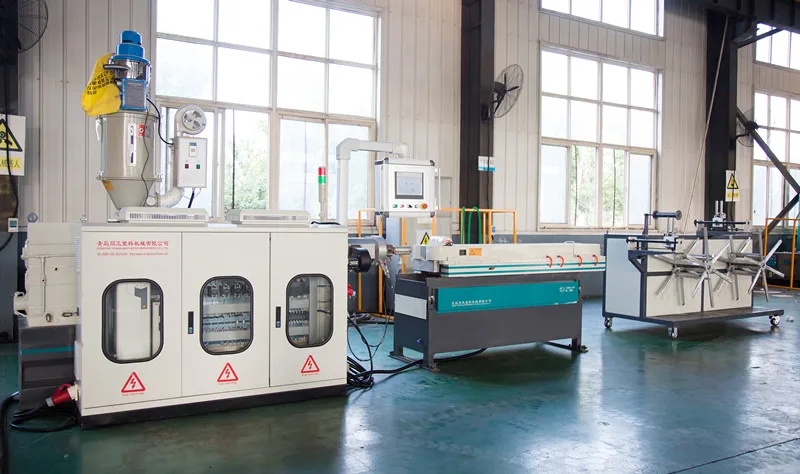

Detailed images
Machine in stock
1,Single wall corrugated pipe machine
2,WPC profile machine./PVC window and door profile machine
3, WPC door machine
4, PVC WPC foam board machine.
5, PP hollow sheet machine
6, PE pipe machine
7, PVC pipe machine
8, PVC fiber reinforced hose making machine
9, PVC sheet machine
10, ABS/HIPS/PE/PP sheet machine.
11, Other auxiliary devices, such as crusher, miller, mixer.
Certifications
Why Choose Us
Pre-sale services
1.Provide the free consultation of the machine
2.Provide the standard device and the flow chart
3.According to the clients' special requirement, offering the reasonable plan and free design helping to select the machine
4.Welcome to visit our factory or the domestic clients' factory.
Services during the sales
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Inspect the machine before leaving the factory.
3.Send our experienced workers and engineer to your factory for installing and adjusting all the machine
4.Train the first-line operator.
5.Provide the basic formula
After sale services
1.One year warranty
2.24 hours online service
3.Engineers available to service machinery overseas
4.Provide technical exchanging
