High quality PVC WPC wooden door making machine

FOB Reference Price:Get Latest Price
$120,000.00 - $160,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SJSZ-80/156, 92/188
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 80 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
board
Plastic Processed:
PVC+WOOD
Output (kg/h):
350 - 500
Screw Design:
Double-screw
Screw L/D Ratio:
22
Place of Origin:
Shandong, China
Brand Name:
QINGDAO TONGSAN
Voltage:
3P/30V/50HZ or as local
Dimension(L*W*H):
25m*3*2.5m
Power (kW):
120
Weight:
10-15 tons
Certification:
CE
Warranty:
1 Year, 12 months
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Key Selling Points:
Long Service Life
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Raw material:
PVC/WPC
Extruder model:
SJSZ-92/188
Main motor power:
110-135kw
Motor brand:
Siemens
Output capacity:
300-500kg/h
PVC mixer:
Equipped
Mould:
according to customer design
Main electrical component:
ABB, RKC, Omron, Shneider etc.
Screw diameter (mm):
80 mm
Automatic Grade:
automatic
Product Certification certification
CE Certified.
Valid from 2019-02-19 until 2022-02-14
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
Standard sea worth packaging,mainly wooden pallet and vacuum film.
Port
QINGDAO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 80 To be negotiated
Video Description
Product Description

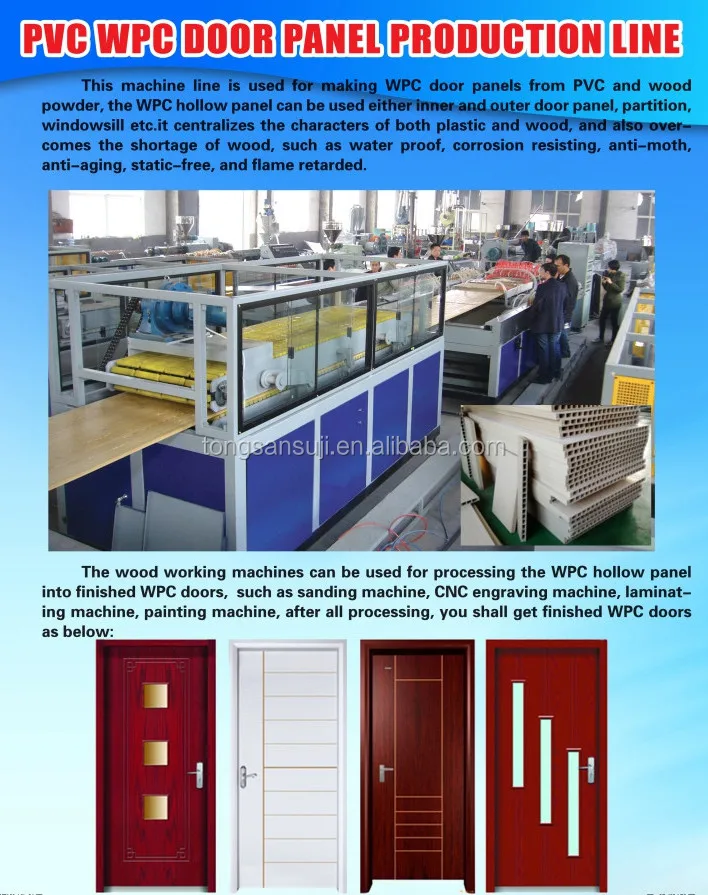

PVC WPC door board production line is adopted specially designed HGMS80/156,HGMS92/188 conical twin screw extruder.It adopts imported ABB and Simens speed frequency converter.It choosees imported imported RKC and OMRON temperature controller.It possesses the features of easy and reliable operation.The production line consists of conical twin screw extruder,mould for door boards,forming moulds, calibrating cooling stage,caterpillar haul off ,transverse cutter and tile stacker..

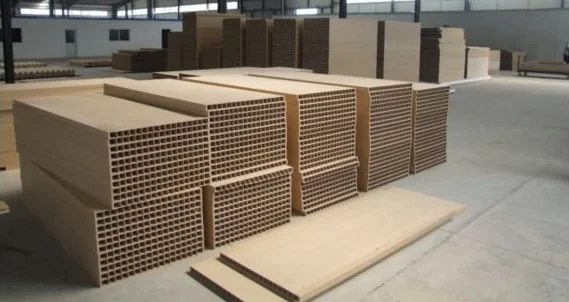

The PVC WPC door board production line is widely used in producing inner and outdoor board.partition window sill etc.and by mixing extrusion and forming technology,it can use PVC as main raw material,either with or without wood powder.The final products centralizes the characters of plastic and wood.It not only has special apperance effect,but also overcomes the shortage of wood.It has good processability as wood,and the proportion can be controlled in 0.6-0.9kg/m3.It can be sawed,drilled,and planed by the wood working tools.The WPC materials and products have features of heavy acid bases resistance,water-proofing,corrosion resisting,anti-moth,anti-aging,static-free and flame retarded.

We have the complete WPC PVC DOOR MAKING machines in our factory stock now.We welcome you come to visit our factory to check machine. We have rich experience for providing turnkey project for WPC door making machine to dfifferent countries.

WPC door making machines including the machines as below:

1), WPC door panel extrusion line
2), WPC door frame extrusion line
3), WPC door panel surface treatment machines: such as sanding machine, engraving machine, lamination machine, painting machine, hot stamping machine
4), WPC door frame surface treatment machines: such as lamination machine, hot stamping machine, painting machine.

Detailed Images

The WPC door panel extrusion line includes the below parts:
1 Mixing machine for WPC PVC door making machine: high speed heating and cooling mixing
2 Feeder and extruder for WPC PVC door making machine: conical double screw extruder with high capacity design for WPC production.
3 die and mold for WPC PVC door making machine: you can change the mold for making different size of door panels.

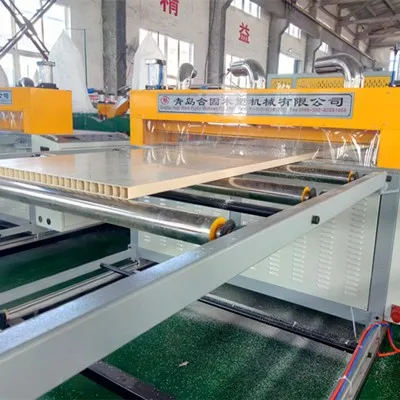

4 Calibrating machine for WPC PVC door making machine: vacuum and water cooling for high capacity production
5 Haul off machine for WPC PVC door making machine: high power haul off device is specially designed for WPC door production.
6 Cutting machine for WPC PVC door making machine: the cutter should be designed with high quality saw.

7 Material stacker

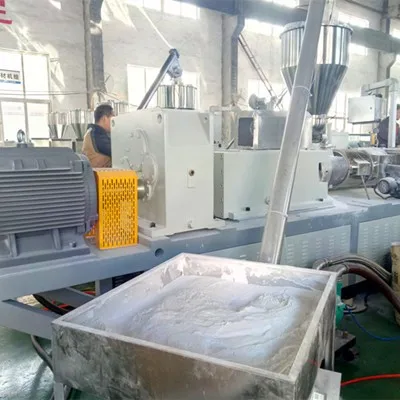

Name: Extruder

SJSZ-80/156 or SJSZ-92/188 twin conical screw extruder, Siemens motor ,ABB frequency converter

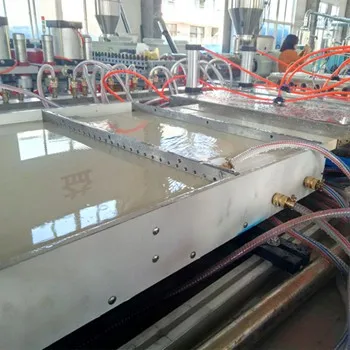

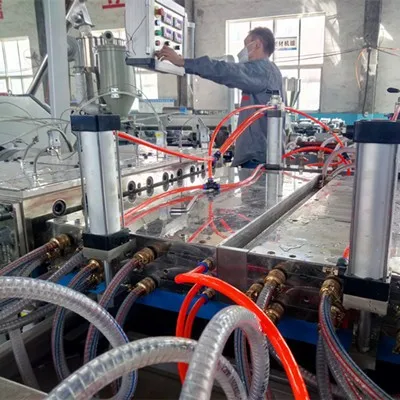

Name: Die head mould and calibrating mould
The mould size can be customized by customer

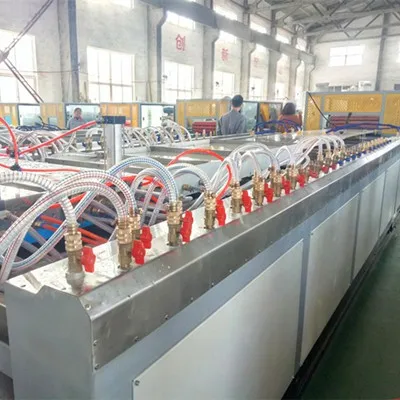

Name: Calibraing table
Length :6000mm, the material of water-connection part is stainless steel.

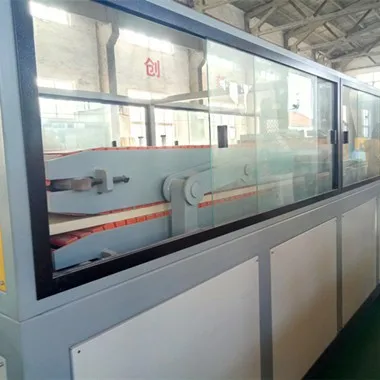

Name: Haul off machine
High quality rubber blocks


Name:Cutting machine and stacker


Surface treatment

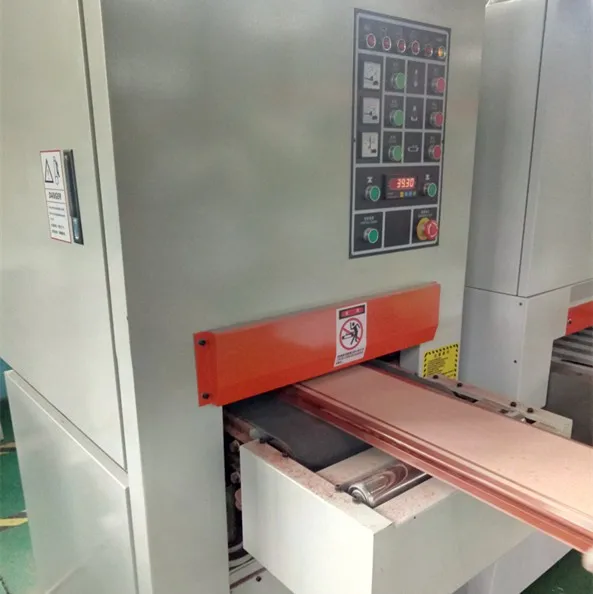

Sanding machine for WPC PVC door making machine
sanding machine is used for polishing the WPC door surface.
our sanding machine is high quality for good polishing, we provide different designs of sanding for different requirements.
dust suction device is equipped for collection the sanding dust

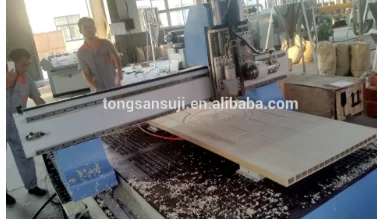

CNC engraving machine for WPC PVC door making machine
High quality automatic CNC engraving machine can make beautiful design on the WPC door surface.
and also it can make the holes for door locks or hingles.
Professional designed knives for WPC material specially is made according to our experience for testing on WPC doors for many many times.

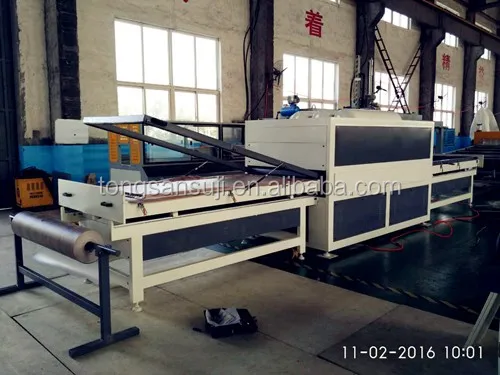

Lamination machine for WPC PVC door making machine
For the surface color, you could have many different options, we could design the complete project according to your market demands.
such as vacuum lamination machine, PUR lamination machine, hot stamping machine, painting machine.


Related Products

PVC WPC door frame machine

100% Response Rate

WPC floor panel machine

91.8% Response Rate

PVC WPC foam board machine

91.8% Response Rate

Certifications
Our Service

WPC PVC door making machine turnkey project service
1, we will provide all the machines for the complete production according to customer's requirements.
2, we will provide complete service for factory layout and other informations to help customer to build the factory.
3, we can also provide the raw material to the customer if you need.
4, we will provide good service for machine installation and trainning, until the customers can run the machines and make stably production.
5, Except one year quality guarantee,we will provide after-sell service for all the life.
6, for long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. let us do win-win business together.

Packing & Delivery
Packaging
Size
Need to be confirmed when shipped
Weight
Need to be confirmed when shipped



Packaging Details
as export standard,pallet ,the material of pallet is stainless steel pipe the surface of each part of machinery covered film together with one set of packing list in english wooden crate : under fumigation treatment . together with one set of packing list in english partial shipment allowed container shipment allowed before delivery ,we will send the dimension & weight of machinery to customer to help the them choose suitable container
