corrugated pipe extrusion line high speed

  • 1 - 4 Sets
    $34,000.00
  • 5 - 9 Sets
    $32,000.00
  • 10 - 19 Sets
    $30,000.00
  • >=20 Sets
    $28,000.00
Model Number:
SJ-65(ID9-50mm and speed 20m/min)
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
shape of corrugation (Min. Order: 1 Sets) Less
Samples:
$1.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
PIPE
Plastic Processed:
PE
Output (kg/h):
60 - 80
Screw Design:
Single-screw
Showroom Location:
Viet Nam, Saudi Arabia, India, Russia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan, Tajikistan, Malaysia
Place of Origin:
Shandong, China
Brand Name:
TONGSAN
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
12m*1m*2m
Power (kW):
30
Weight:
8000 kgs
Certification:
CE certificated
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
High Productivity
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
United States, Viet Nam, Philippines, Peru, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kyrgyzstan, Uzbekistan
Applicable Industries:
Building Material Shops
Material:
PP PE PVC or PA
Pipe range:
16-63mm(inner diameter)
corrugated pipe machine:
machine for corrugated tube
Screw L/D:
30:1 ratio
Material of screw and barrel:
38CrMoALA
Capacity of the screw:
60-80kg/h
Quantity of mould blocks:
50-90 pairs
Traction speed:
8-12m/min
extruder:
single screw extruder for single-wall corrugated pipe machine
Automatic Grade:
Semi-automatic
Screw Material:
38CrMoAIA
Screw diameter (mm):
65 mm
Packaging & Delivery
Packaging Details
machine for corrugated tube will be packed by film wrapping, good fixing in the container.
Port
Qingdao port
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 To be negotiated
Product Description

High speed corrugated pipe making machine.corrugated pipe extrusion line high speed

Main Description:
1,Used condition :
380V/3phase/50HZ
2,Suitable material :
PP, PE , PVC
3,Pipe range :
φ9-50mm
4, output capacity:
 60-80kg/h
Production speed
20-30m/min
Extruder model
SJ65
Main motor power
22kw
Machine size
12m*1m*3m(length*width*height)
Machine list
Quantity
SJ65/30 single screw extruder with auto feeder and drying hopper
1 set
Die head
1 set
Mold: 72 pais of mold blocks
according to customer's requirements
Steel wire unwiding and inserting device
1 set
Forming machine:  with water cooling
1 set
Coiling machine, double station
1 set
Electricity control system
1 set
Spare parts
1 set

Detailed description of the plastic single wall corrugated pipe machine

1, material for the single wall corrugated pipe and corrugated tube:
This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes

2, application for the single wall corrugated pipe and corrugated tube:
Plastic single-wall corrugated pipes have feathers of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.They are widely used in fields of auto wire,electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lanterns wire,tubes of air conditioner and washing machine,etc.

3, advatanges of the single-wall corrugated pipe machine (the machine for corrugated tube):
SJDBGZ seies plastic single-wall corrugated pipe production line developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of the up-market cars.
This production line with good performance and reasonble price,it will be the best choice for your producing single-wall corrugated pipe.

Detailed Images

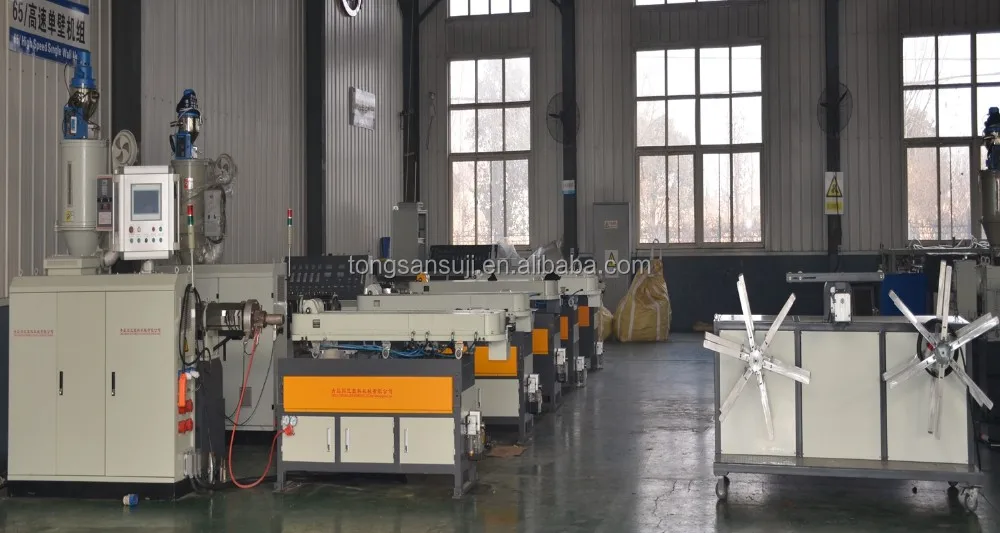

PICTURES FOR NORMAL SINGLE WALL CORRUGATED PIPE MACHINE

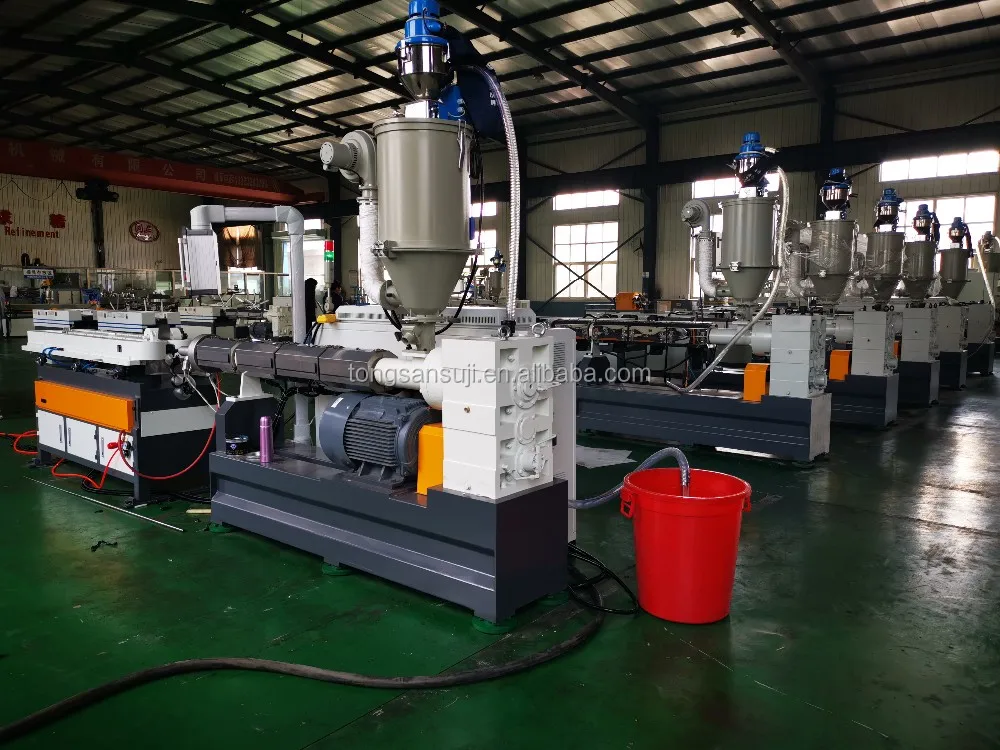

1, Single screw extruder for plastic corrugated pipe machine:

1) with auto feeding device
2) with drying hopper

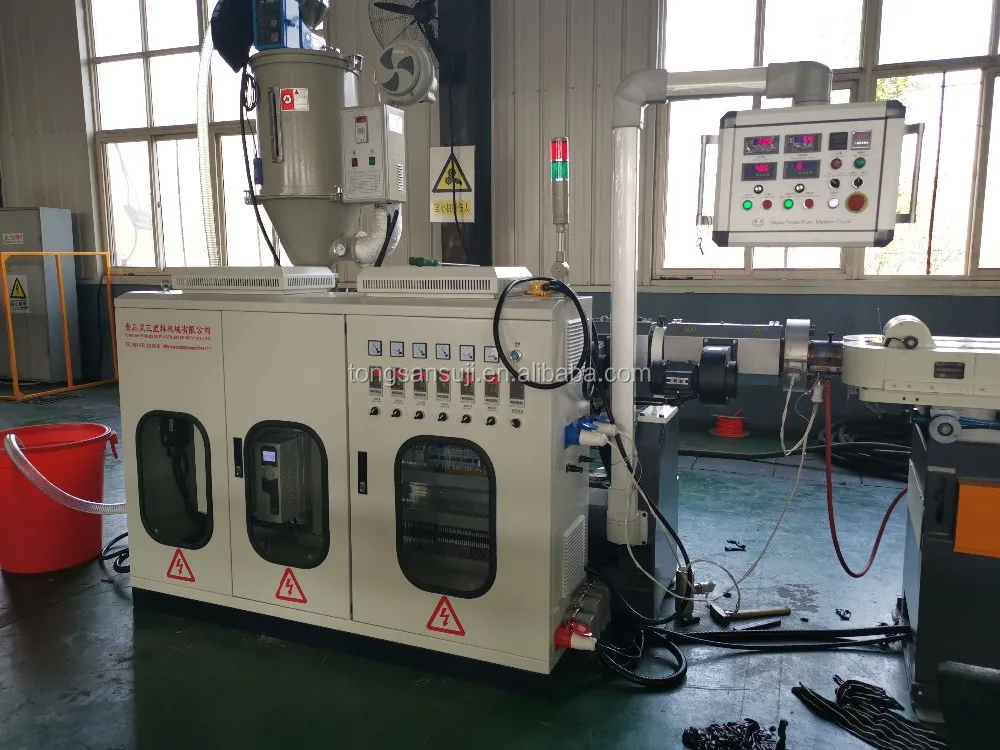

3) electricity control system: ABB inverter, Siemens Motor, Omron temperature control
4) with aluminum heater and blowing cooling

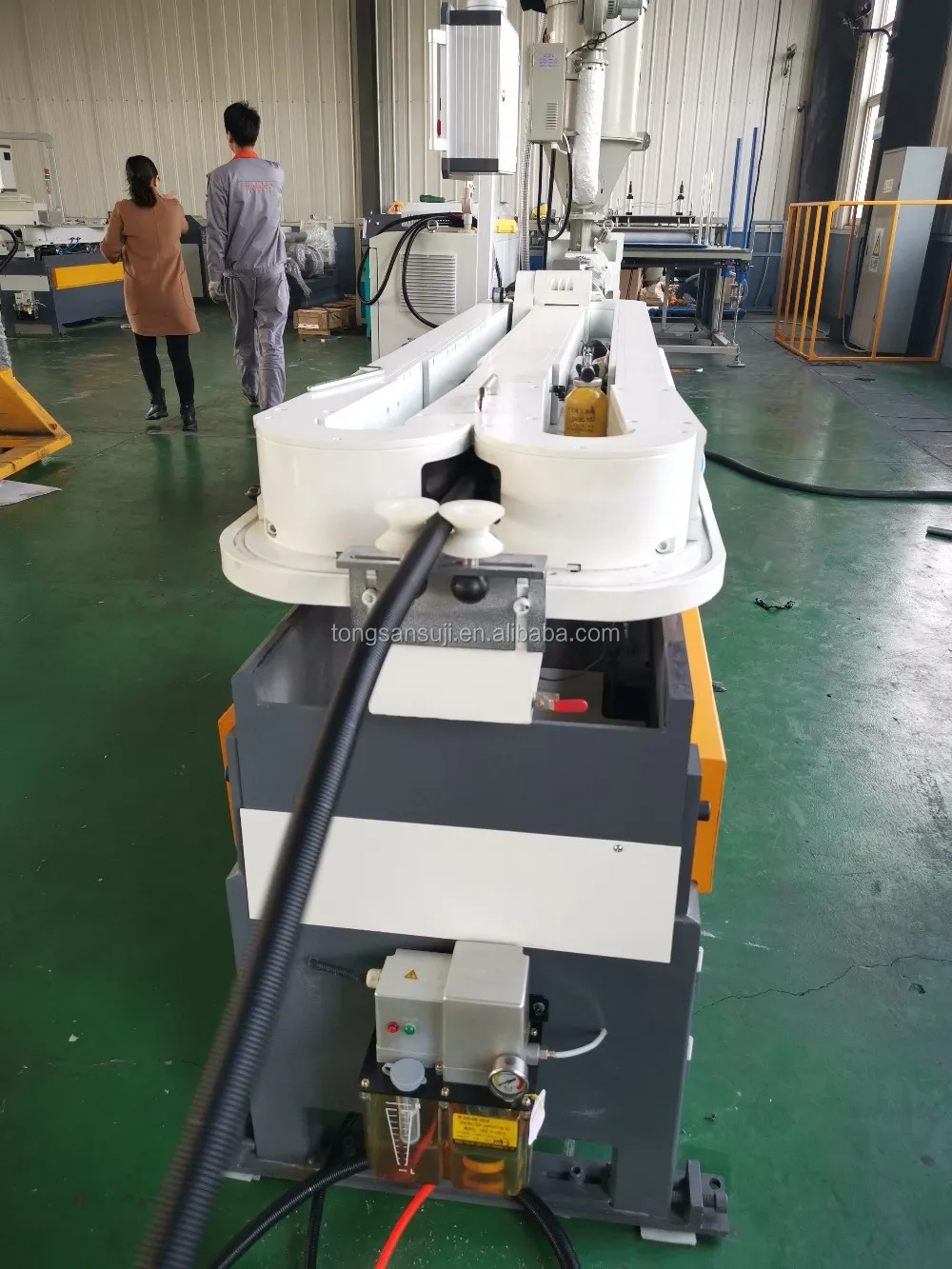

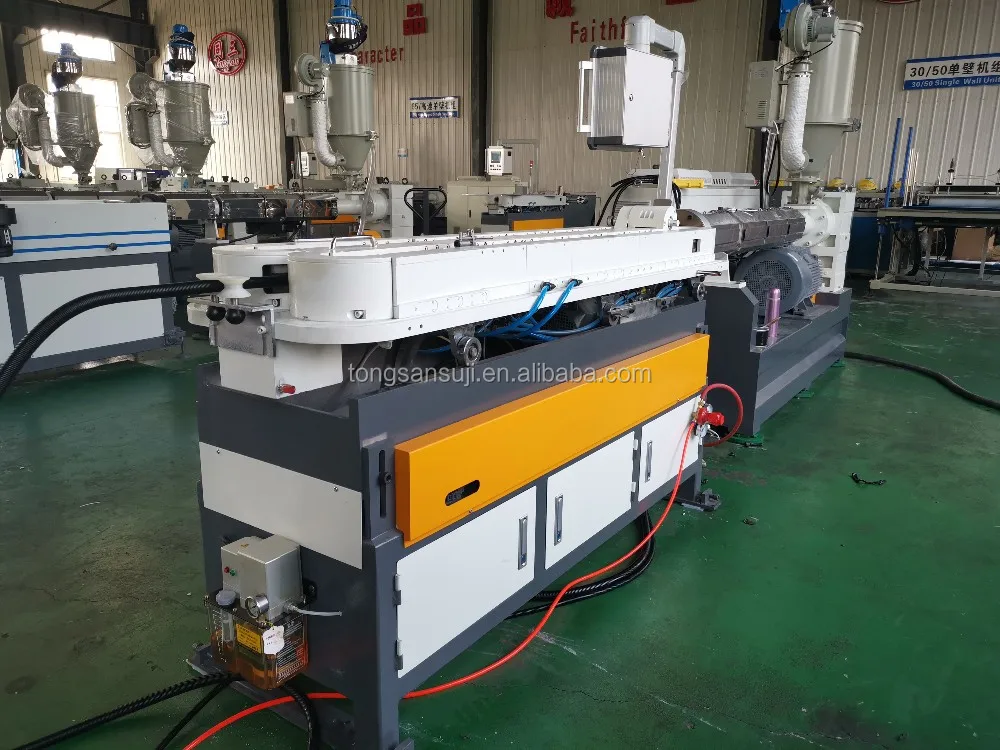

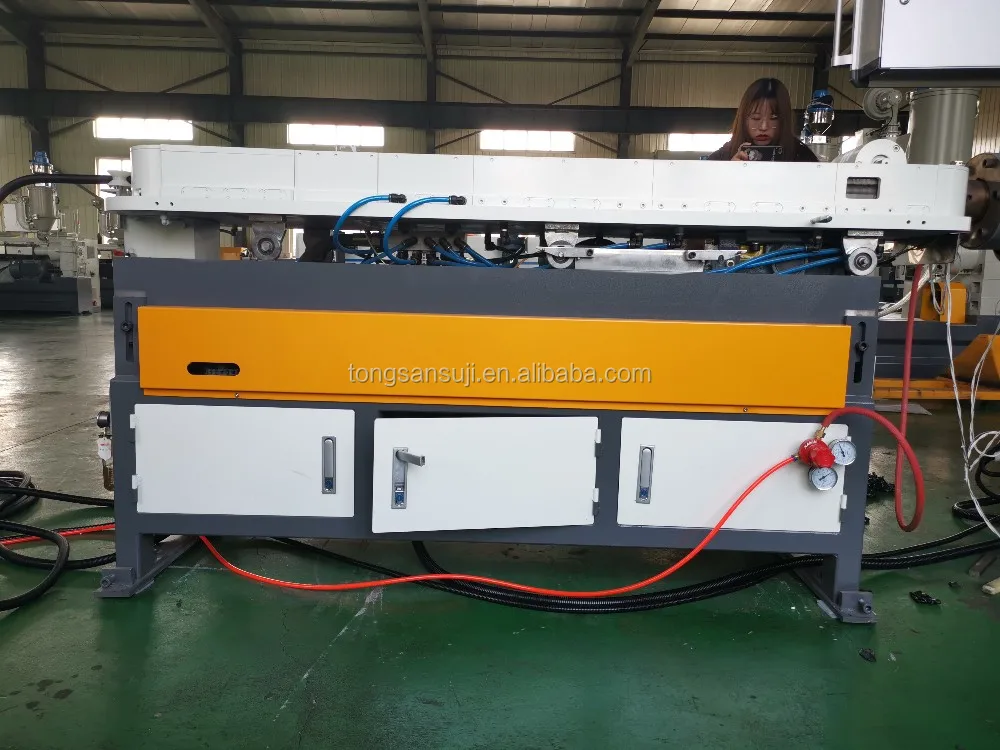

2, high speed forming machine for corrrugated pipe making machine

20-30meter/minute speed.

with water cooling

high speed mold for corrugated pipe making machine

material: 40 cr with nitrating

mold quantity: 72 pairs

cavity: double size on same mold

speed: 20-30meter/minute

Auto winding machine

1, winding station: double station

2, winding method: automatic windinhg

3, meter counting: automatic counting

4, winding meters: customized

Corrugated pipe mold making:

we have our own workshop and CNC machines to make corrugated pipe molds by ourself, we also has design team for design the corrugated pipe molds according to customer's requirements.

such as magic pipe mold, shisha pipe mold, double size mold....

Our service

INSTALLATION AND COMMISSIONING
WE WILL SEND THE TECHNICIAN TO BUYER'S FACTORY FOR INSTALLATION AND TESTING THE WHOLE LINE, AND OUR ENGINEER WILL DO TRAINNING TO BUYER'S WORKERS UNTIL THEY CAN RUN OUR MACHINE FOR STABLY PRODUCTION


AFTER SELL SERVICE: ONE YEAR GUARNTEE, FOREVER SERVICE!
WITHIN THE GUARANTEE OF ONE YEAR, WE WILL PROVIDE EFFICIENT AND ON TIME MAINTAINS,IF ANY SPARE PARTS DAMAGED IN THE GUARANTEE TERM BECAUSE OF QUALITY PROBLEM, WE WILL PROVIDE NEW SPARE PARTS FOR FREE FOR REPLACMENT.
