recycled plastic and wood composition wpc pellet machine

  • 1 - 4 Sets
    $53,000.00
  • 5 - 9 Sets
    $50,000.00
  • 10 - 19 Sets
    $48,000.00
  • >=20 Sets
    $45,000.00
Model Number:
SHMS75
Output (kg/h):
300-500
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$1.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Profile
Plastic Processed:
PE, PP, PVC, WPC
Output (kg/h):
350 - 450
Screw Design:
Double-screw
Showroom Location:
None
Place of Origin:
China
Brand Name:
TONGSAN
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
20mx2.5mx2.2m
Weight:
8-20T
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
Multifunctional
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Applicable Industries:
Building Material Shops
Material:
PE/PP/PVC and wood/rice husk powder
Capacity:
240kg/h
Max.Cutting Section(L*W):
240*65mm
Production line speed:
0.5-1.5m/min
Final product application:
construction, house decoration
wood powder:
wood powder milling machine with drying device
mixing machine:
high speed heating and cooling mixer
granulating machine:
exhaust type,parrel double screw extruder
extruding machine:
SJSZ65/132conical twin screw extruder
Screw diameter (mm):
75 mm
Supply Ability
Supply Ability:
5 Set/Sets per Month Lumber plastic machine/Wood plastic machine/ WPC machine
Packaging & Delivery
Packaging Details
The production line includes many parts, each part shall be packed by wrapping film. wooden box packing for special parts which are easy to be damaged.the packing list shall be provided to customer.each packing shall be marked according to customer's requirements
Port
Qingdao port of China
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 60 90 To be negotiated
Products Description

PP PE PVC Plastic and Wood Composition WPC Granulation Machine,WPC pellet machine

Practical Application for WPC granulator:
To make WPC (PE, PP, ABS, PVC) pellets specially for extrusion.
the WPC pellets are made by wood and plastic composition.
For PP PE WPC granulation machine, the wood content can be 60-65%,
the PP PE plastic can be recycled PP/PE flakes or granules.

The WPC granulator with the following advantages:
1, Paralell twin-screw extrusion machine designed according to characteristics of wood and plastic(PE and PP), professional
manufacturing, and stable function.
2, Good effect of mixing, plastication, etc.
3, Able to expel moisture and gas easily because of several vents designed.
4, Big output (about 400Kg/hr).
5, Different Machines between PE+wood and PP+wood pellets( (conveyer belt transportation and cutting as the first picture below)
Details Images

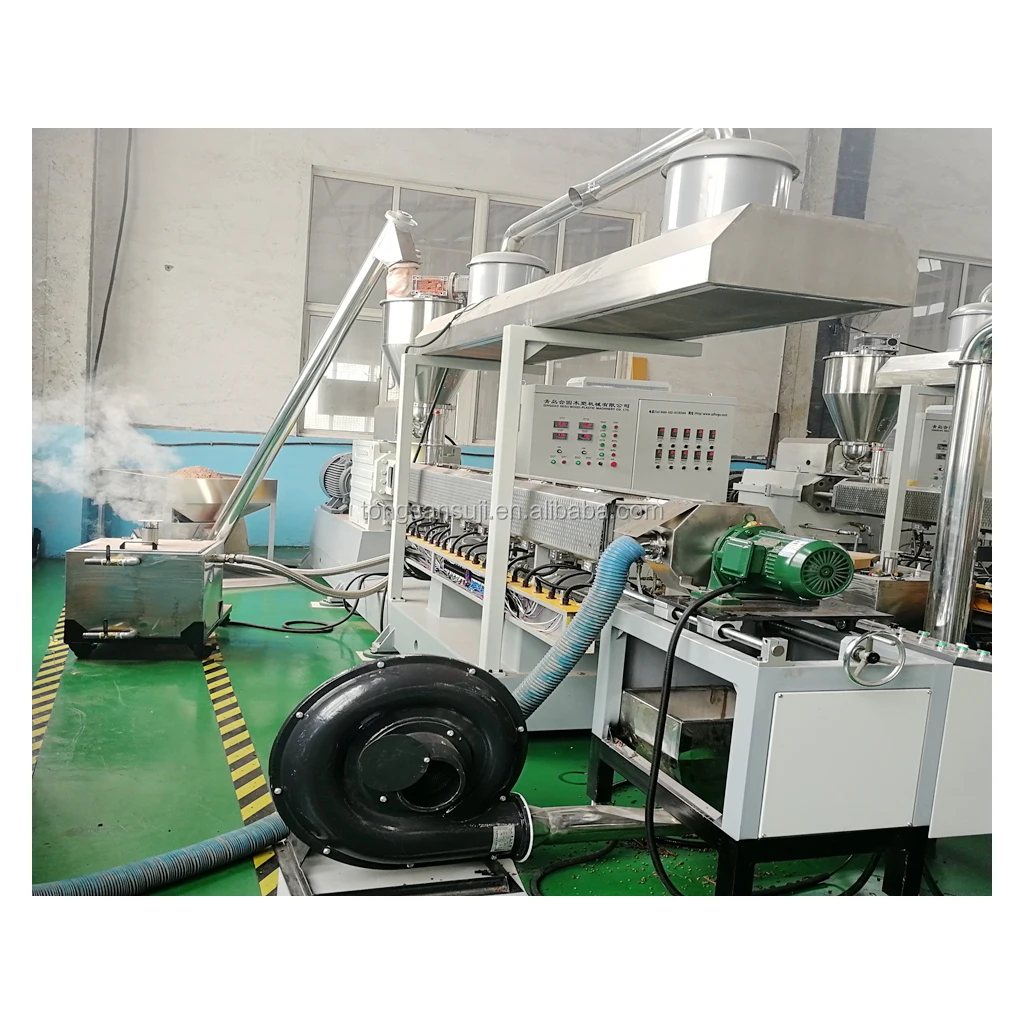

Extruder for the WPC granulation machine

1, the extruder equipped with the screw spiral auto feeder for feeding the mixed material.

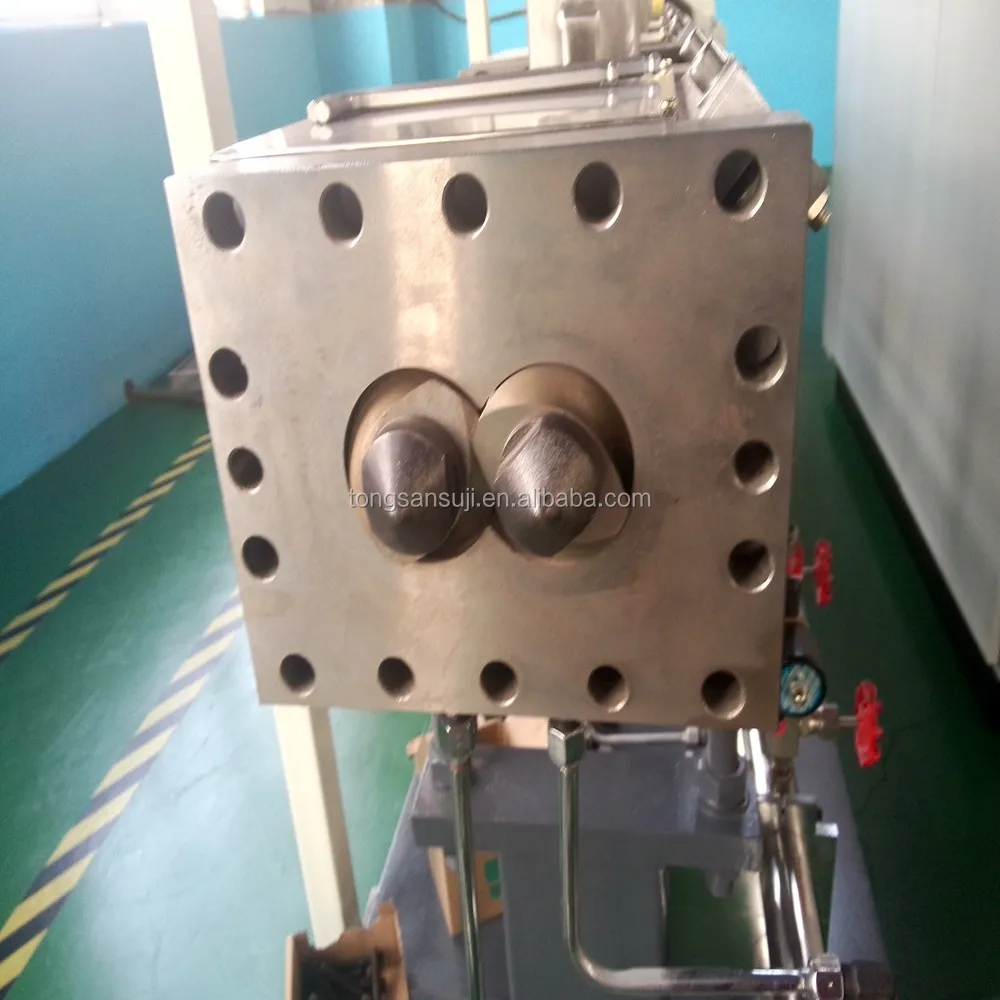

2, the extruder is parallel double screw extruder, the L/D ratio is 40:1, the long extruder ensures the WPC material could be good melted and mixed in the extruder.

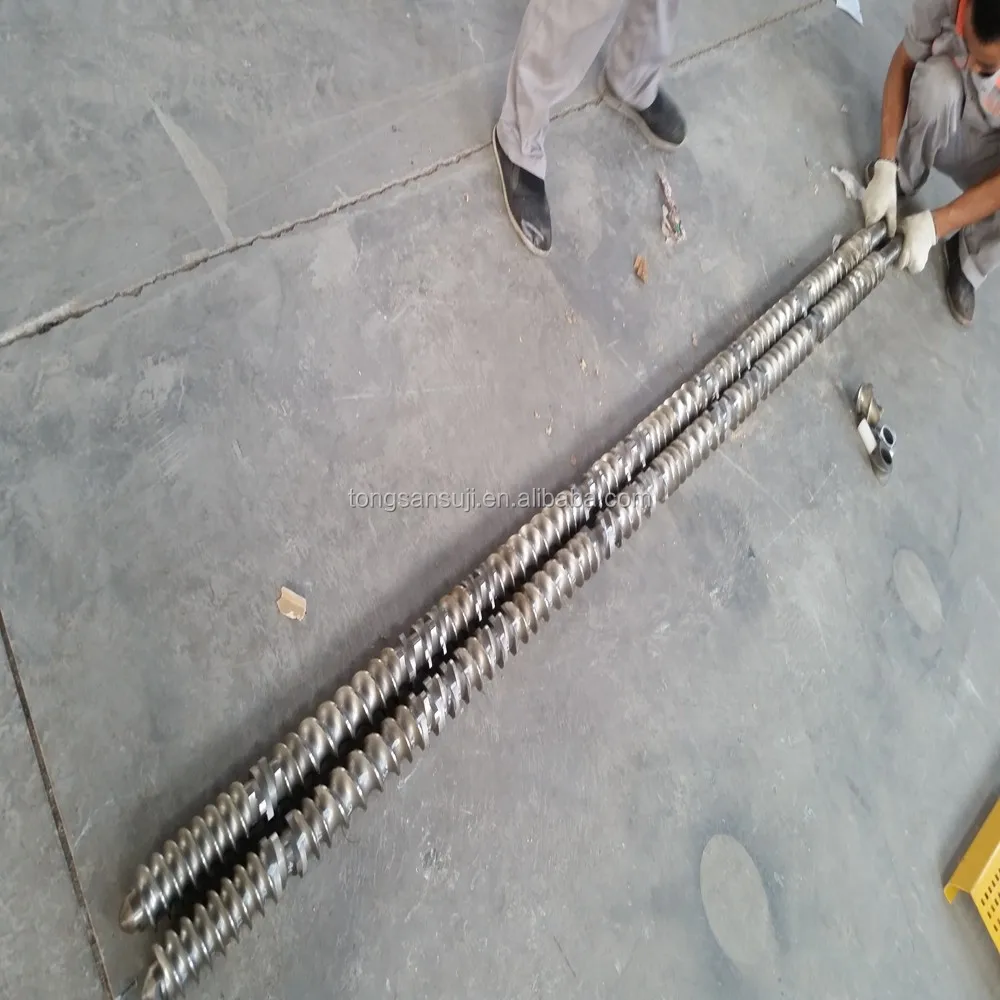

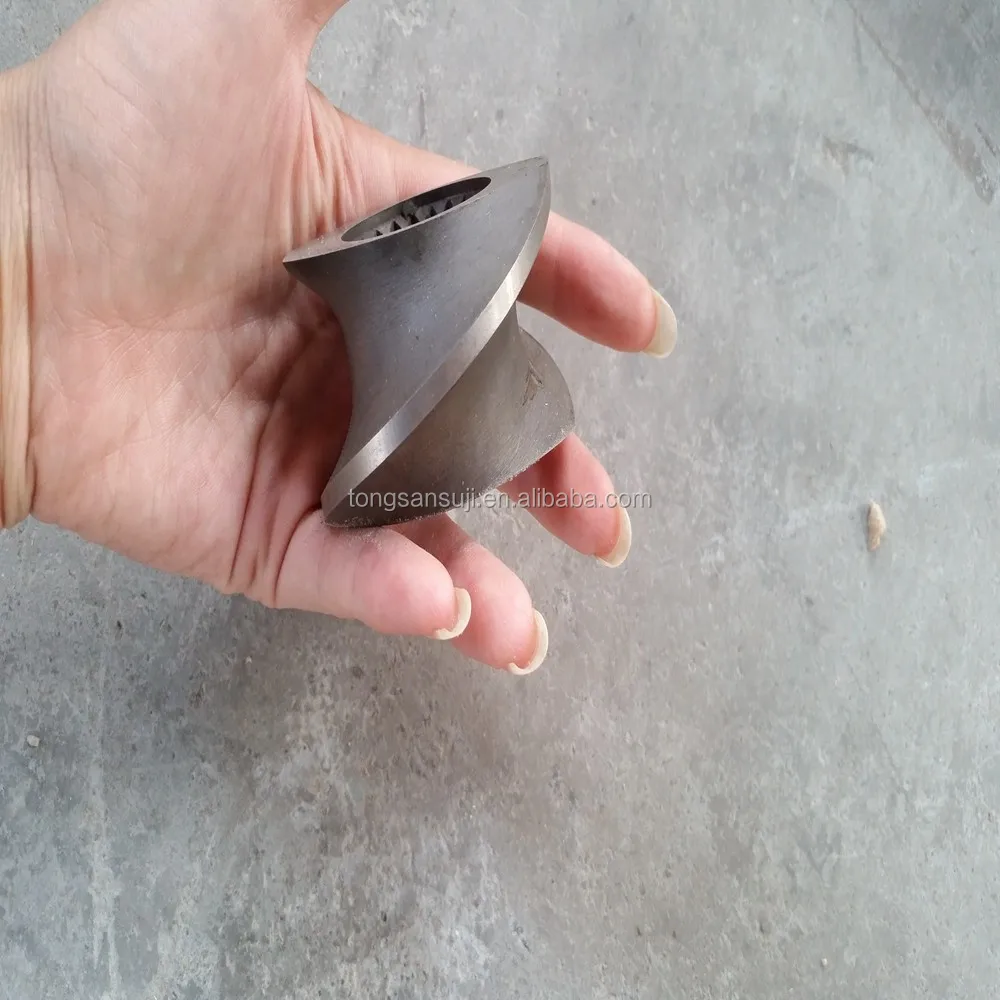

3, the screw design is like cordwood, the screw blocks for each section is different because the function of each section is different, such as feeding section, moisture exhuasting section, mixing section, melting section.
and if any screw block is damaged, it is easy for maintaince that you only need to change the damaged screw blocks.

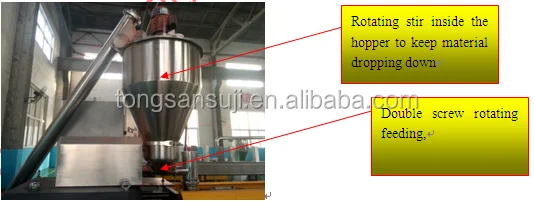

4, With force feeding device for the mixed material, because the material is recycled plastic and wood powder and chemicals, some are plastic flakes which may drop down slower than powder material, so with spiral screw in the hopper for mixing material in hopper, and with double screw rotating force feeding material to the barrel. We can ensure the material shall be evenly and uniform to be feeded.

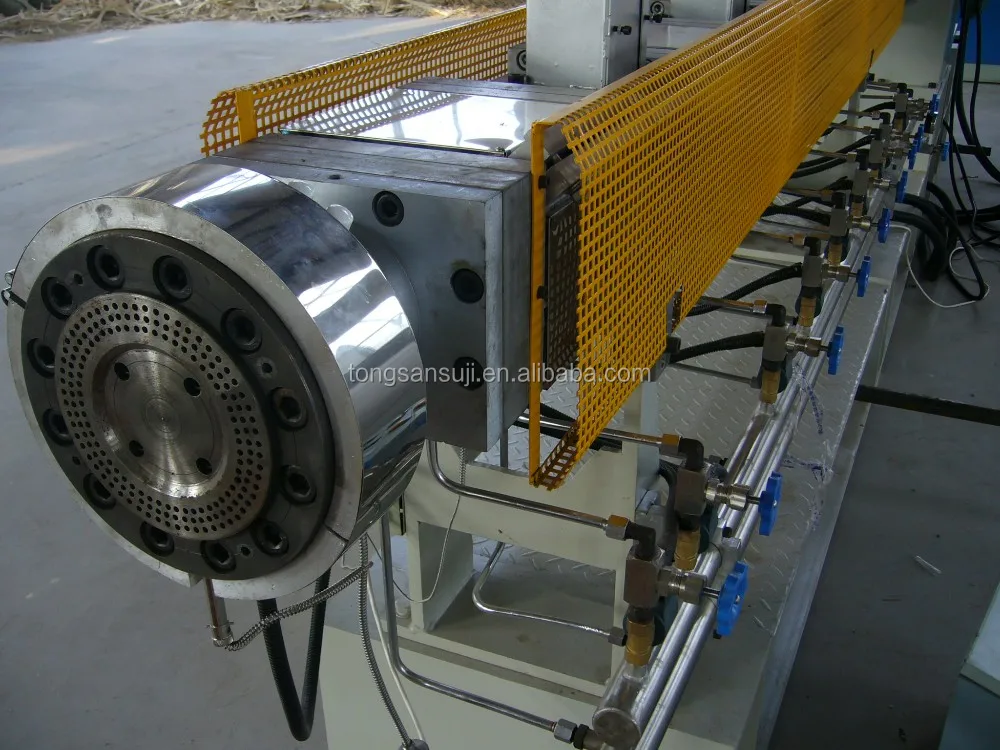

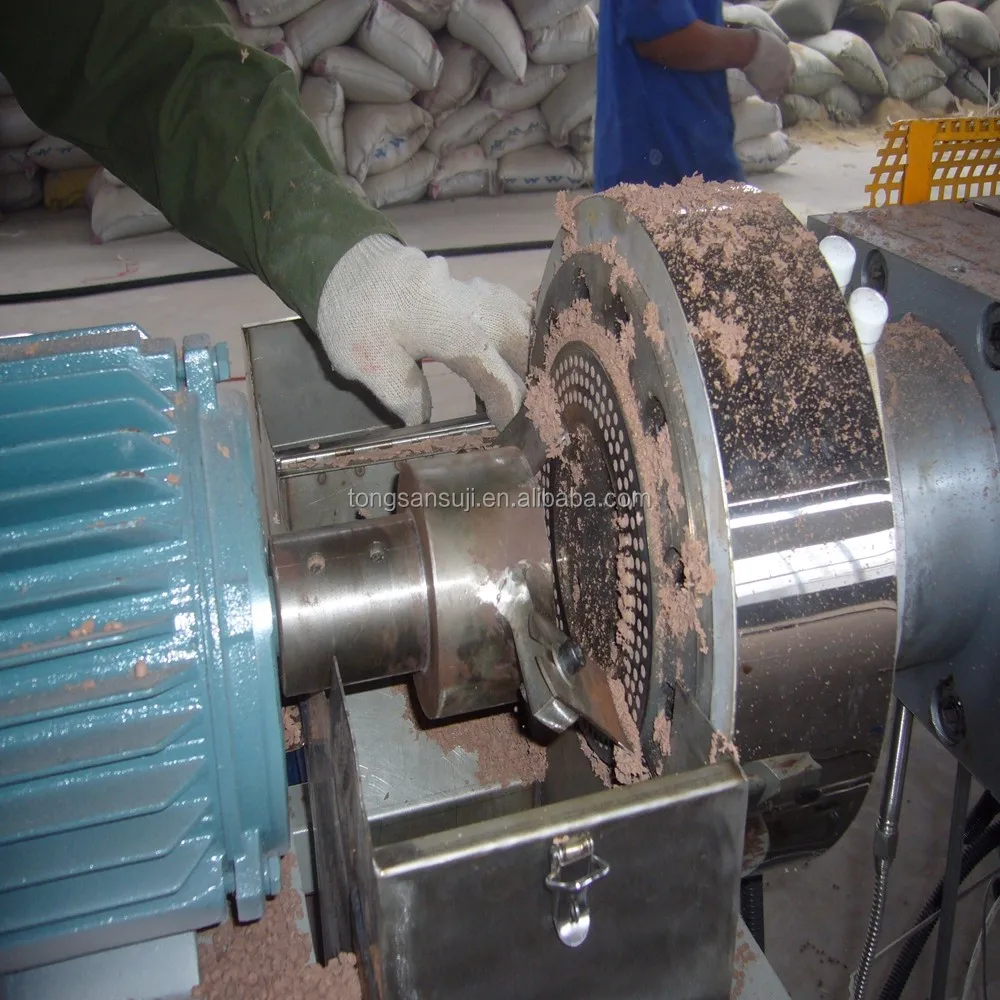

2, The granulation die for WPC granulation machine

1, the granulation die adopts hot cutting granulation process, it can get high granulation capacity.
2, the cutting is by high quality alloy cutting blades, the cutting blades are rotating with high speed in the production.
the speed can be controled by ABB frenquency control inverter.

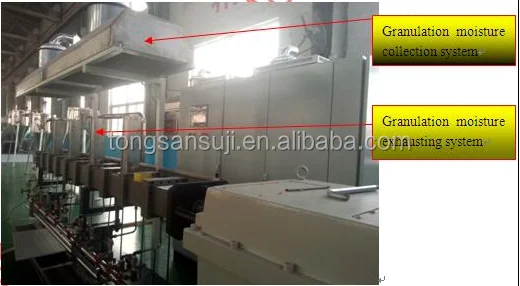

3, environment friendly design system, there maybe some smoke or moisture come out when doing pelletizing process, so we also designed the exhausting system on pelletizing die.

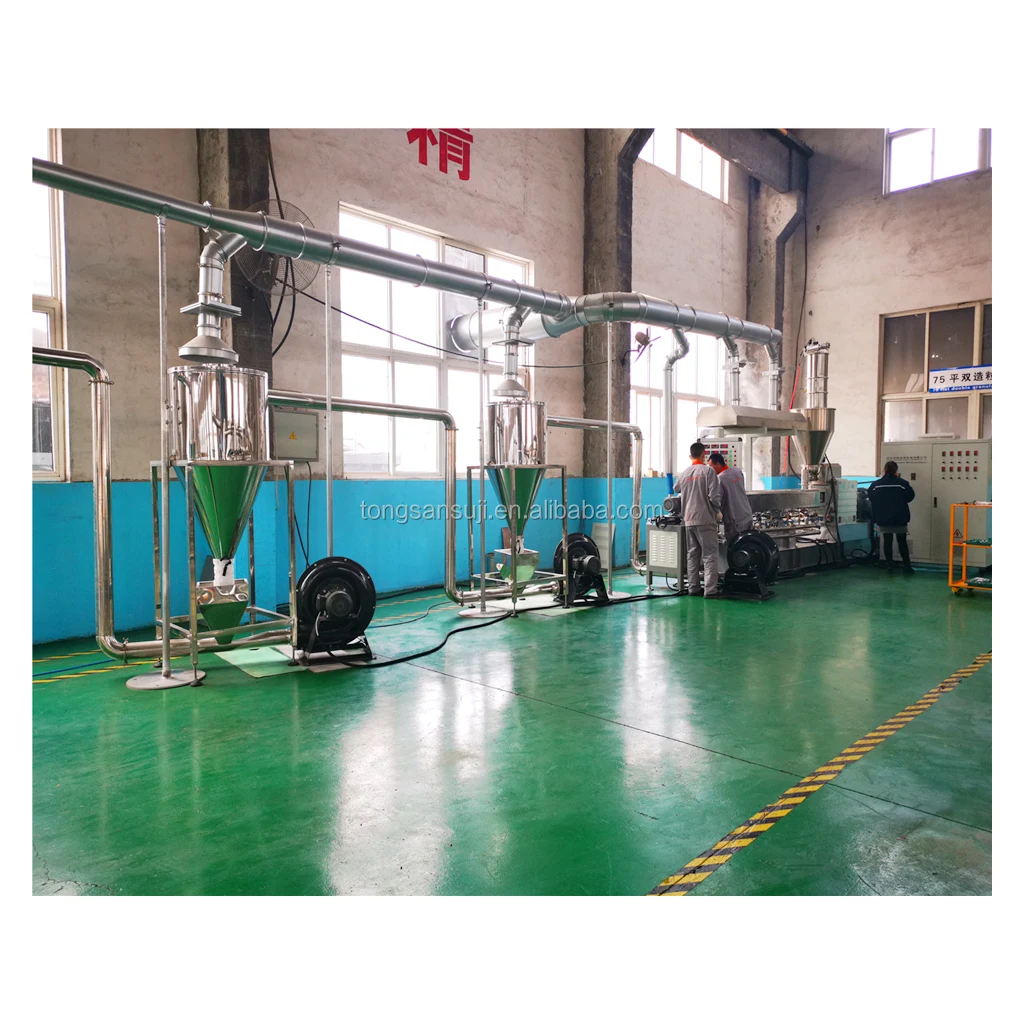

The cooling system for WPC granulation machine

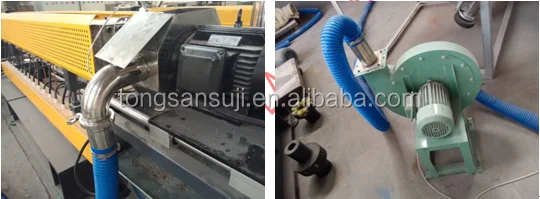

1, it adopts to air cooling by blowing fans. high power of 7.5kw blowing fans make high speed cooling and high speed convey for the granules.
2, three steps cooling fans ensure the final WPC granules can be totally cooled in the production

3, easy operation and moving for final product: we make a moveable tank for colleting the final WPC granules, you can easy move the product to the extrusion line, or you can equip motor and screw feeder with the tank to feed the WPC granules to the extrusion line directly.
Wood Plastic Composition Process

Using Waste wood and Waste plastic WPC wood plastic machine for making WPC decking and profiles

This WPC machine is used for making WPC profiles by Wood and Plastic composition, such as WPC decking, WPC wall cladding, WPC fencing, WPC pergola, WPC post, etc...

Raw material: Using Waste wood and Waste plastic WPC wood plastic machine for making WPC decking and profiles
Plastic material
recyccled PP/PE plastic
Wood material
wood powder from rice husk/straw,wheat husk/straw,wood sawdust,wastage wood
Percentage of plastic
25-30%
Percentage of wood powder
50-70%
Final product
WPC decking, WPC wall cladding, WPC pergola profile, WPC fence profile, and other WPC construction profiles
Production process
raw material--mixing--granulation--extrusion and molding--surface treatment
