Tongsan PP hollow corrugated plate production machine

FOB Reference Price:Get Latest Price
$128,800.00 - $268,800.00 / Set | 1 Set/Sets (Min. Order)
Output (kg/h):
200 - 300 kg/h
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 30 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$10.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Sheet, Profile, Plates
Plastic Processed:
PE, PP, PC
Output (kg/h):
200 - 300
Screw Design:
Single-screw
Showroom Location:
Egypt, Canada, Turkey, Russia, South Africa, Uzbekistan, Australia
Place of Origin:
Shandong, China
Brand Name:
Qingdao Tongsan
Voltage:
380V 50HZ 3Phase(customized)
Dimension(L*W*H):
20mx2.5mx2.2m
Power (kW):
110
Weight:
2-10T
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
High Productivity
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Turkey, India, Australia, South Africa, Uzbekistan
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Marketing Type:
New Product 2020
Video outgoing-inspection:
Provided
Machinery Test Report:
Not Available
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Screw Material:
38CrMoAl
Screw diameter (mm):
36 mm
Screw L/D Ratio:
1/36
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
stander sea worth package for 600 mm PP melt blown frabic making machine / Melt blow non woven fabric extrusion machine
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 30 45 To be negotiated
Product Description

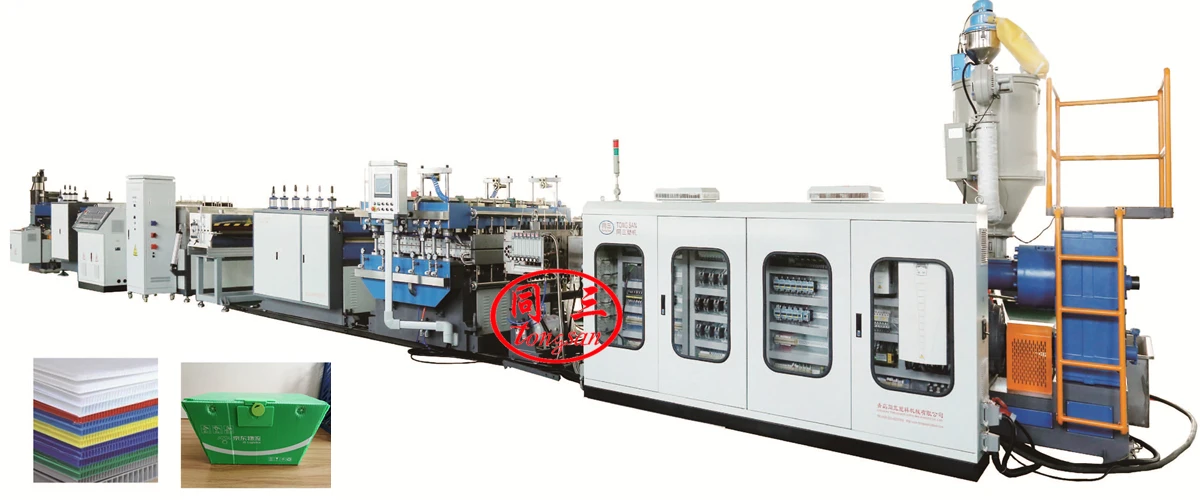

PP twin wall corrugated sheet making machine

Qingdao Tongsan hollow corrugated sheet making machine can produce the sheet with the width of 1220-2450mm and thickness of 1.5mm-12mm.

Models of PP twin wall corrugated sheet making machine

We have different models of PP corrugated sheet machine for making different width of final product
Model
Sheet width
Sheet thickness
Extruder Model
 Motor Power
TS-1400
1250mm
1.5-12mm
100/36
55-75kw
TS-1800
1700mm
1.5-12mm
120/36
75-90kw
TS-2300
2150mm
1.5-12mm
120/36
90-110kw
TS-2600
2450mm
1.5-12mm
120/36
90-110kw
TS-3000
2800mm
1.5-12mm
150/36
132kw
Detailed Images

Auto feeder

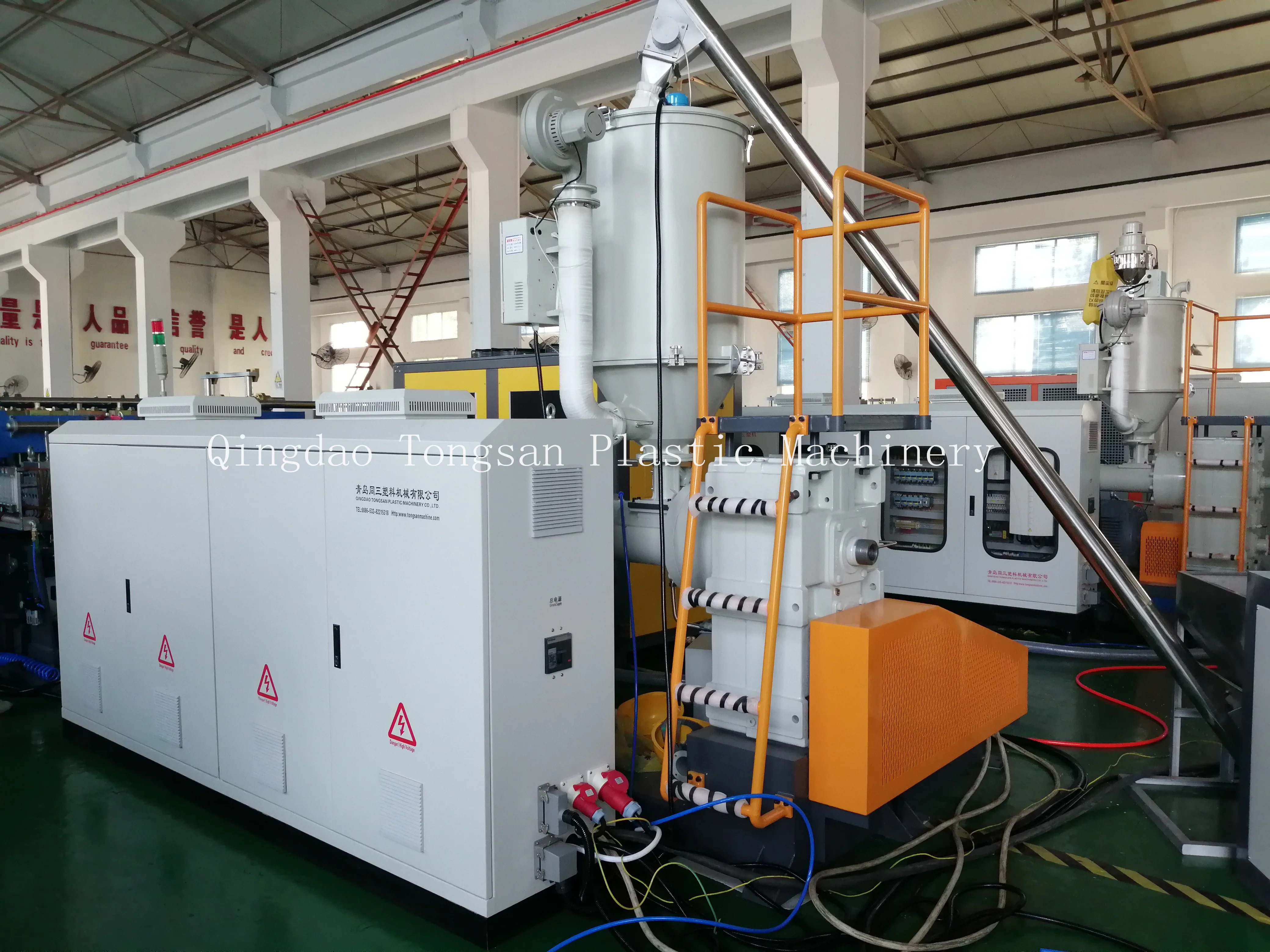

Main extruder

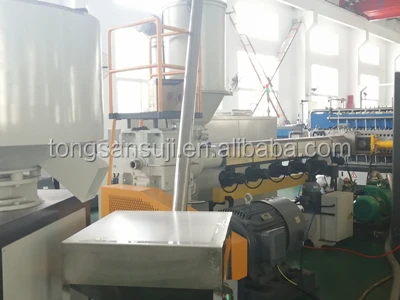

Co extruder

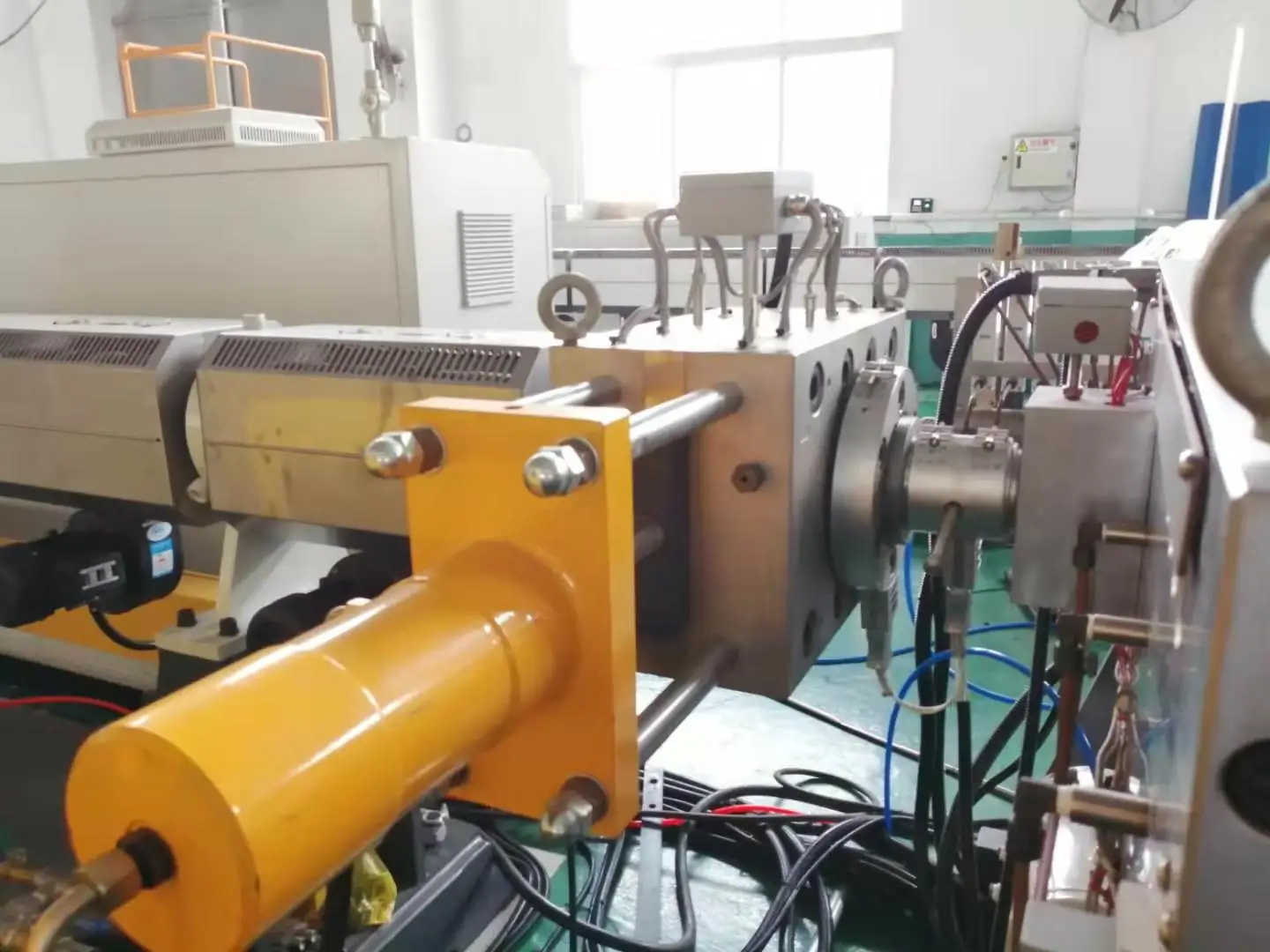

Screen changer

Die head

Calibrators

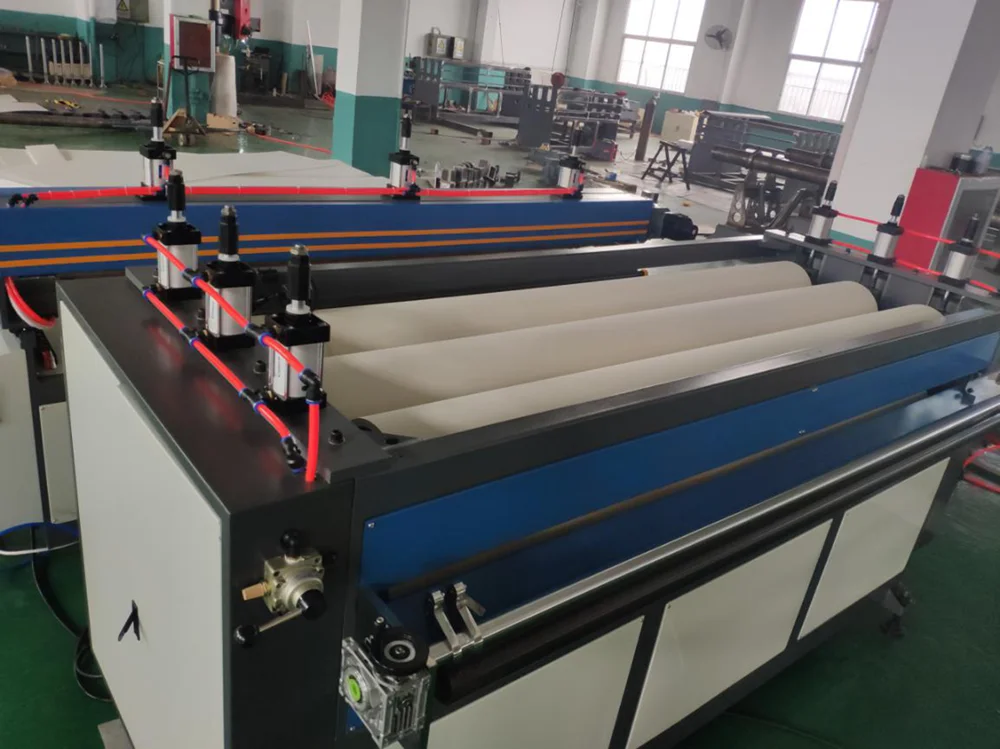

1st haul off

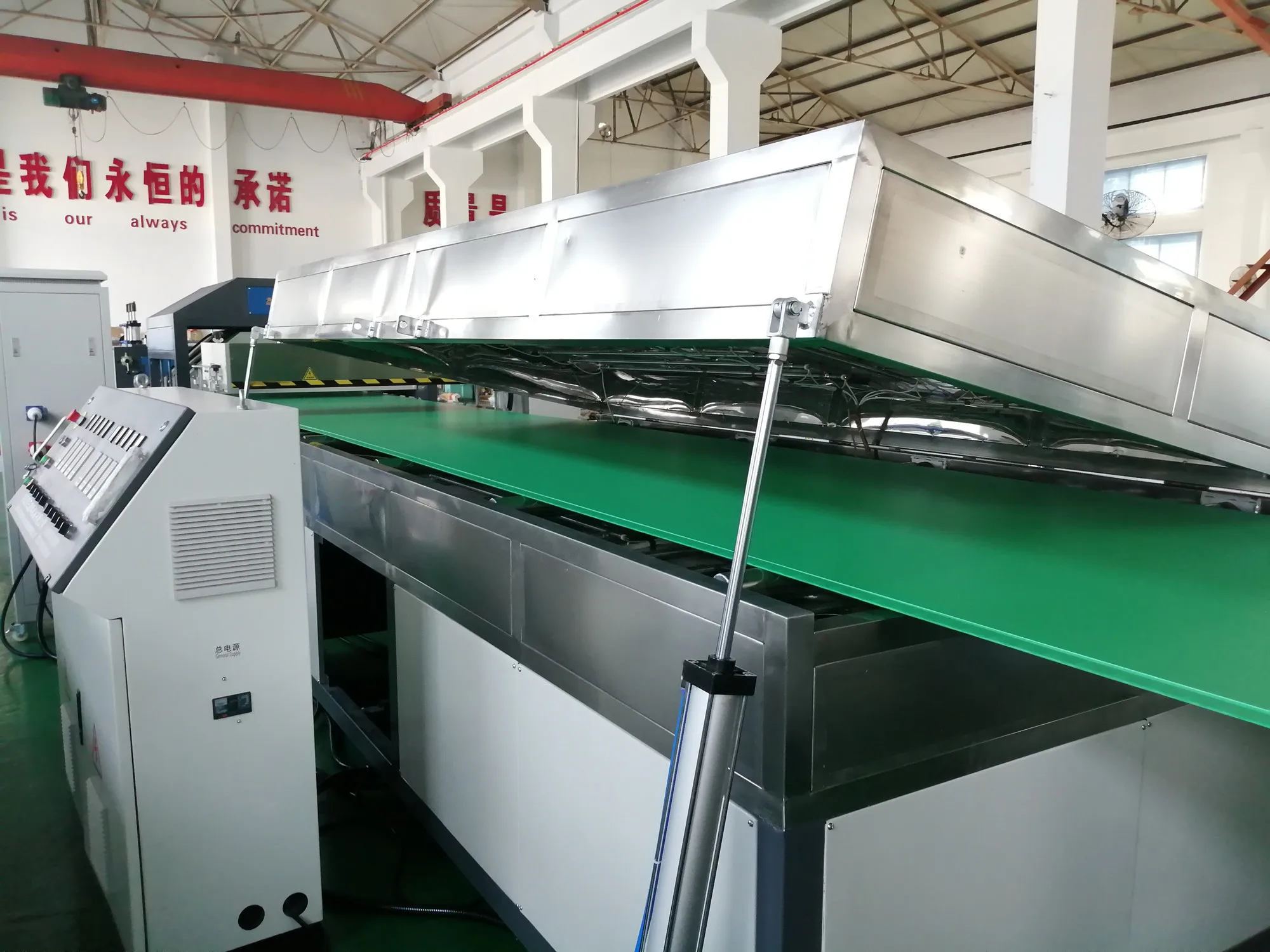

heating oven

cooling device

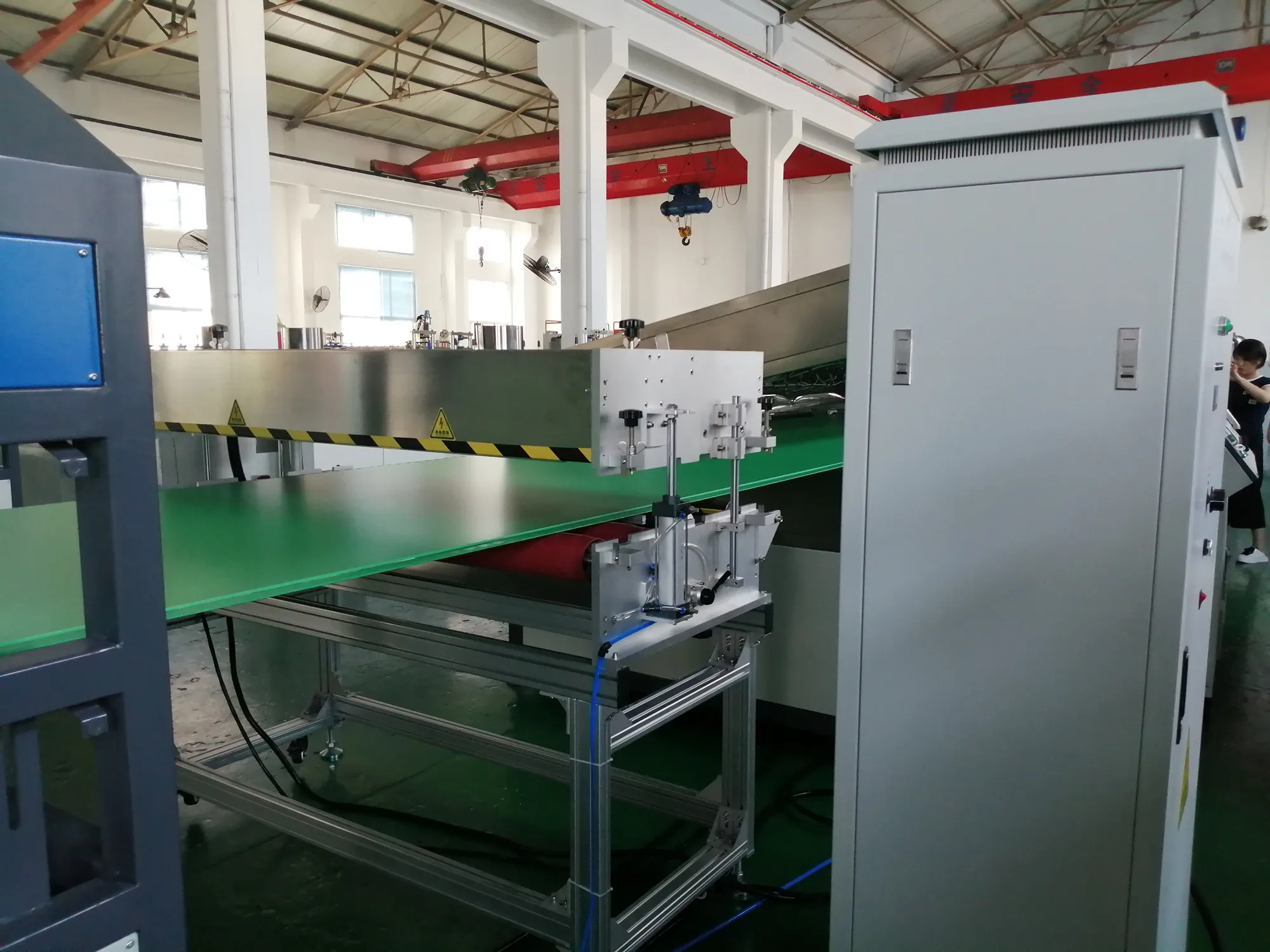

Corona treatment

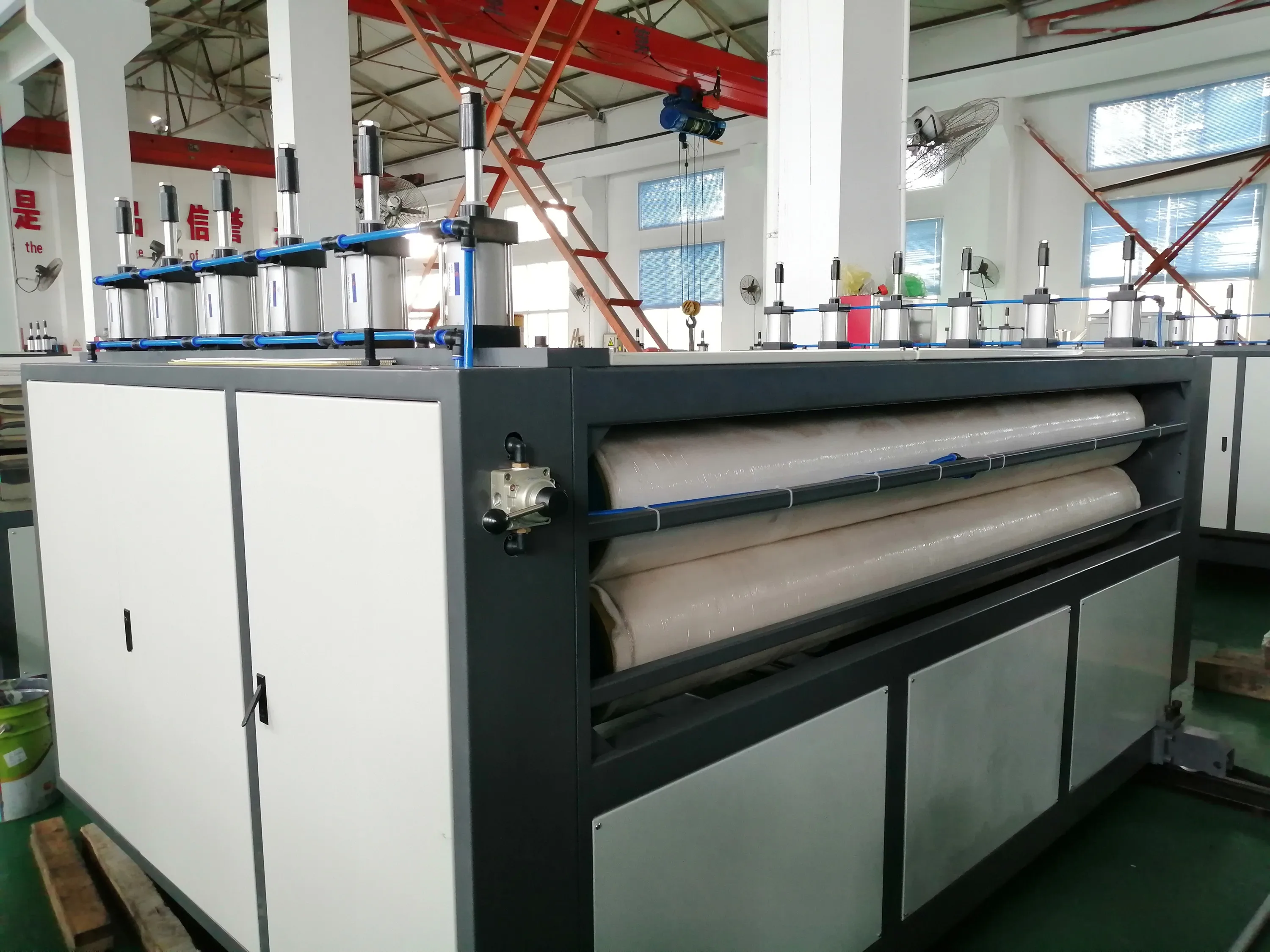

2nd haul off

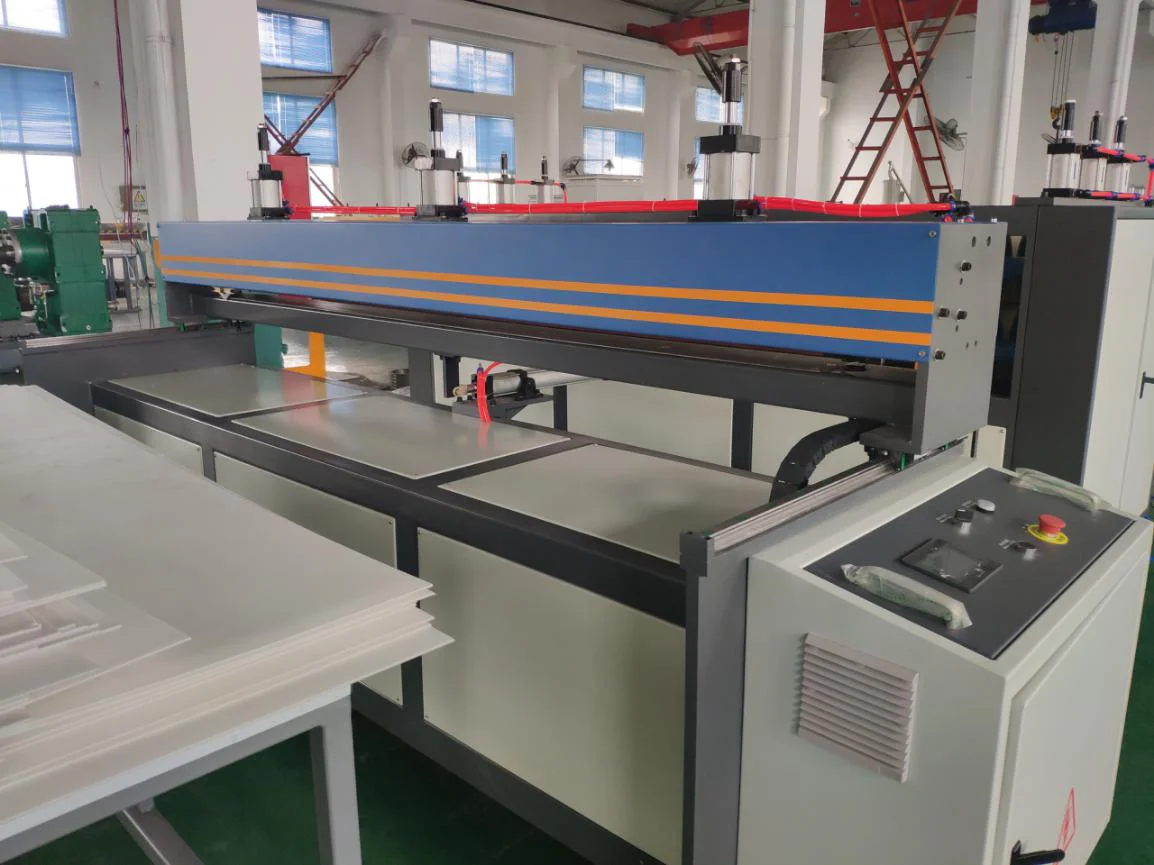

Auto length cutting

Application Of PP Hollow Corrugated Sheet
1, Application of PP Plastic Hollow Corrugated sheet/Plate in Fruit,Vegetable and Food Packaging
PP plastic hollow packing box has excellent moisture resistance, water resistance, low temperature resistance, light and high strength, non-toxic, environmentally friendly, recyclable and reusable features, etc.Products: Apple Store Packing Box, Ginger Packing Box, Asparagus Packing Box, Grape Packing Box, Milk Packing Box, Variety Packing Box, Dairy Packing Box, etc.
2, Application of PP Plastic Hollow Corrugated sheet/Plate in Industrial Packaging
PP plastic hollow plate is widely used in the field of industrial packaging, because of its light and high strength, good buffer performance, good weather resistance, environmental recyclable reusable.PP plastic hollow plate industrial logistics turnover box product line is very rich, there are double-layer fixed turnover box, single-layer fixed turnover box, single-layer folding turnover box, matching knife card pad, storage cage enclosure, etc. According to the function can be divided into electronic turnover box, auto parts turnover box, logistics turnover box and so on; can meet the logistics turnover needs of all kinds of enterprises.
3, Application of PP Plastic Hollow Corrugated sheet/Plate in Packaging of Glass Bottles
With the continuous improvement of the quality requirements of glass bottles, the traditional packaging of sacks cannot meet the needs of production and market. Tray packaging can overcome the drawbacks of sack packaging, can reduce the packaging and transportation of glass bottles broken, but also to avoid the sack after a long time on the bottle ash and even adhered to the bag of decay.PP plastic hollow plate according to the customer's requirements, sealing edge, sealing angle to produce a variety of high strength and size of glass tray packaging plate.
4, Application of PP Plastic Hollow Corrugated sheet/Plate in Advertising Decoration and Advertising Printing
PP Plastic is dedicated to improving the quality of hollow plate, research and development of plastic hollow plate deep processing. develop different processes according to different products. Made of indoor and outdoor advertising exhibition display board, publicity posters, dairy drinks and wine display box and other products, this product has waterproof and moisture-proof, anti-aging, exquisite printing, long use time, beautiful and generous, overall vision and other characteristics.
5, Application of PP Plastic Hollow Corrugated sheet/Plate in Refrigerator and Washing Machine
PP plastic hollow plate is a new type of environmental protection products, no pollution, no harm, meet the requirements of green environmental protection. The product has large internal quality, flat surface, high breaking strength, flame retardant, good moisture-proof performance, zero surface water and steam penetration, heat insulation, good energy saving effect. Especially the refrigerator with external condenser has excellent adiabatic effect. The company can make all kinds of refrigerator, freezer, washing machine back and base according to customer's request
